SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.60 | 524.27 | 63.68 | 362.02 | -14.60 | 224.52 | 43.49 | 253.97 | 0.6946 | 285.4 | 233.6 | |
|
previous
or next observation for the same group /

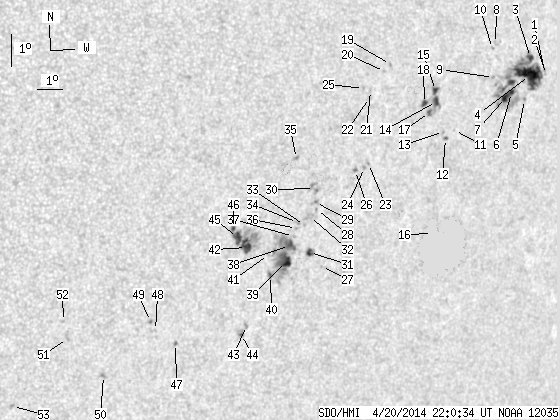

back to the solar disc SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.73 | -10.74 | 229.70 | 48.67 | 260.21 | 0.7509 | 112.0 | 80.8 | |
| 0.00 | 1.24 | 0.00 | 0.93 | -10.59 | 229.62 | 48.59 | 260.40 | 0.7500 | 233.0 | 157.1 | |
| 3.19 | 122.29 | 2.35 | 89.38 | -10.27 | 228.91 | 47.88 | 260.79 | 0.7416 | 623.1 | 509.9 | |
| 34.32 | -3.00 | 25.30 | -3.00 | -10.82 | 228.98 | 47.94 | 260.06 | 0.7427 | 701.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.98 | -11.55 | 228.91 | 47.87 | 259.06 | 0.7424 | 541.0 | 438.7 | |
| 2.84 | -3.00 | 2.06 | -3.00 | -11.38 | 228.27 | 47.24 | 259.24 | 0.7349 | 775.0 | 999999 | |
| 4.70 | -3.00 | 3.41 | -3.00 | -11.55 | 228.04 | 47.00 | 258.99 | 0.7323 | 763.3 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.33 | -9.95 | 227.27 | 46.24 | 261.14 | 0.7222 | -441.0 | -286.9 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -10.98 | 227.38 | 46.34 | 259.72 | 0.7242 | 792.0 | 561.9 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -10.11 | 227.17 | 46.13 | 260.91 | 0.7211 | -351.0 | -323.9 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -12.68 | 226.02 | 44.98 | 257.20 | 0.7095 | -596.0 | -453.2 | |
| 0.53 | 1.77 | 0.37 | 1.24 | -12.95 | 225.68 | 44.65 | 256.78 | 0.7059 | -355.3 | -273.1 | |
| 0.00 | 0.98 | 0.00 | 0.68 | -12.74 | 225.55 | 44.52 | 257.06 | 0.7040 | -313.0 | -307.7 | |
| 3.55 | 17.83 | 2.44 | 12.26 | -11.85 | 225.06 | 44.03 | 258.26 | 0.6970 | -302.5 | -32.2 | |
| 2.48 | -14.00 | 1.71 | -14.00 | -11.52 | 224.95 | 43.92 | 258.72 | 0.6954 | -460.0 | 999999 | |
| 5.05 | 190.58 | 3.56 | 135.47 | -15.86 | 225.85 | 44.82 | 252.73 | 0.7124 | 1017.2 | 284.6 | |
| 1.33 | -14.00 | 0.91 | -14.00 | -12.20 | 224.83 | 43.80 | 257.73 | 0.6946 | 661.8 | 999999 | |
| 2.22 | 3.28 | 1.51 | 2.24 | -11.94 | 224.57 | 43.53 | 258.06 | 0.6910 | 617.4 | 503.6 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -10.85 | 222.94 | 41.90 | 259.47 | 0.6694 | 565.0 | 488.9 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -11.08 | 222.73 | 41.69 | 259.11 | 0.6670 | 612.0 | 487.9 | |
| 0.00 | 0.89 | 0.00 | 0.58 | -11.68 | 222.26 | 41.22 | 258.14 | 0.6617 | 626.0 | 521.2 | |
| 0.00 | 1.77 | 0.00 | 1.17 | -11.90 | 222.26 | 41.22 | 257.82 | 0.6620 | 709.0 | 519.5 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -13.89 | 222.62 | 41.58 | 254.89 | 0.6697 | 660.0 | 587.0 | |
| 0.00 | 1.77 | 0.00 | 1.18 | -14.02 | 222.48 | 41.44 | 254.67 | 0.6682 | 744.0 | 617.0 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -11.64 | 221.96 | 40.93 | 258.16 | 0.6579 | 671.0 | 606.3 | |
| 0.00 | 2.04 | 0.00 | 1.35 | -14.14 | 222.13 | 41.10 | 254.43 | 0.6640 | 828.0 | 740.8 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -17.13 | 221.44 | 40.41 | 249.79 | 0.6624 | 507.0 | 406.2 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -15.41 | 220.81 | 39.78 | 252.20 | 0.6502 | 576.0 | 513.4 | |
| 0.00 | 2.48 | 0.00 | 1.61 | -15.20 | 220.73 | 39.69 | 252.49 | 0.6485 | 867.0 | 735.6 | |
| 0.00 | 7.36 | 0.00 | 4.76 | -14.77 | 220.59 | 39.56 | 253.10 | 0.6459 | 522.0 | 641.2 | |
| 3.19 | 5.68 | 2.09 | 3.71 | -16.73 | 220.85 | 39.81 | 250.20 | 0.6540 | 799.1 | 592.9 | |
| 0.00 | 5.23 | 0.00 | 3.39 | -15.64 | 220.58 | 39.55 | 251.79 | 0.6478 | 736.0 | 644.7 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -15.92 | 220.44 | 39.41 | 251.31 | 0.6468 | 631.0 | 555.5 | |
| 0.00 | 2.31 | 0.00 | 1.49 | -15.85 | 220.14 | 39.11 | 251.34 | 0.6428 | 755.0 | 596.4 | |
| 0.00 | 1.77 | 0.00 | 1.13 | -13.90 | 219.69 | 38.65 | 254.23 | 0.6323 | -613.0 | -456.9 | |
| 0.00 | 0.98 | 0.00 | 0.63 | -16.03 | 220.15 | 39.11 | 251.06 | 0.6433 | 586.0 | 513.5 | |
| 0.00 | 1.60 | 0.00 | 1.03 | -16.28 | 220.08 | 39.05 | 250.66 | 0.6432 | 424.0 | 368.7 | |
| 5.76 | 75.20 | 3.72 | 48.43 | -16.56 | 219.99 | 38.95 | 250.20 | 0.6428 | 324.2 | 95.9 | |
| 6.92 | -38.00 | 4.47 | -38.00 | -17.06 | 219.99 | 38.95 | 249.44 | 0.6442 | 764.1 | 999999 | |
| 1.06 | -38.00 | 0.68 | -38.00 | -17.52 | 219.45 | 38.42 | 248.56 | 0.6389 | -644.3 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.25 | -16.88 | 219.22 | 38.18 | 249.45 | 0.6340 | -643.0 | -507.3 | |
| 6.39 | 41.77 | 4.03 | 26.32 | -16.71 | 218.30 | 37.27 | 249.40 | 0.6218 | -724.9 | -396.6 | |
| 0.00 | 2.39 | 0.00 | 1.54 | -19.11 | 218.89 | 37.86 | 245.93 | 0.6374 | -485.0 | -428.2 | |
| 0.71 | 4.61 | 0.45 | 2.95 | -19.40 | 218.77 | 37.74 | 245.44 | 0.6370 | -690.2 | -566.5 | |
| 6.30 | -42.00 | 3.95 | -42.00 | -16.43 | 217.88 | 36.85 | 249.70 | 0.6155 | -835.8 | 999999 | |
| 1.06 | -42.00 | 0.67 | -42.00 | -16.16 | 217.67 | 36.63 | 250.05 | 0.6119 | -853.2 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -19.81 | 216.25 | 35.21 | 243.67 | 0.6075 | -663.0 | -572.5 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -19.44 | 215.38 | 34.34 | 243.82 | 0.5950 | -624.0 | -506.6 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -19.17 | 215.12 | 34.09 | 244.12 | 0.5906 | -842.0 | -769.9 | |
| 0.00 | 2.13 | 0.00 | 1.29 | -20.93 | 213.73 | 32.70 | 240.52 | 0.5818 | -817.0 | -699.7 | |
| 0.00 | 2.04 | 0.00 | 1.21 | -19.84 | 212.12 | 31.08 | 241.32 | 0.5557 | -734.0 | -605.0 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -19.32 | 211.86 | 30.82 | 242.03 | 0.5496 | -757.0 | -665.8 | |
| 0.00 | 1.95 | 0.00 | 1.15 | -22.05 | 210.55 | 29.52 | 236.57 | 0.5493 | -700.0 | -606.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
