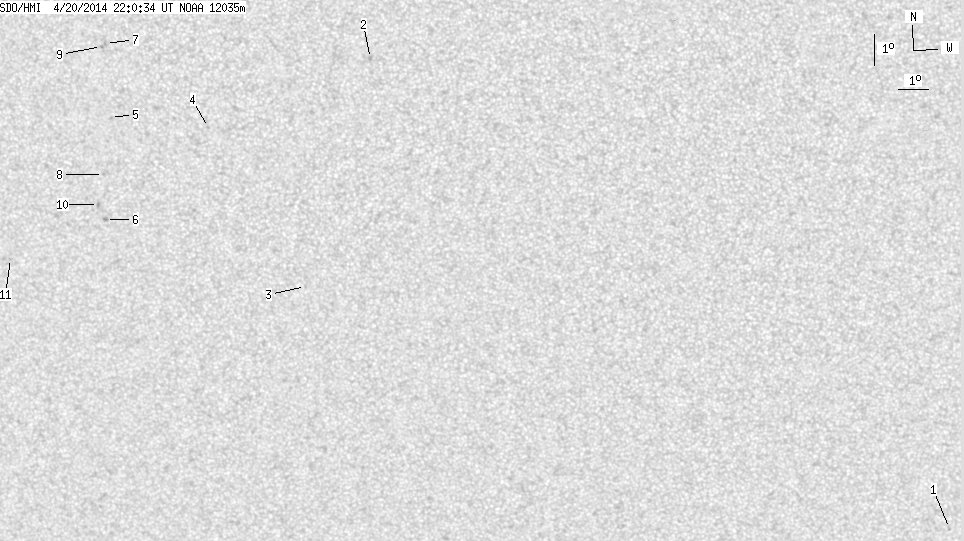

SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.98 | 0.00 | 8.10 | -21.05 | 165.65 | -15.38 | 138.16 | 0.3956 | -659.8 | -564.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.65 | -32.63 | 190.13 | 9.09 | 196.06 | 0.4831 | 704.0 | 654.1 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -17.47 | 170.71 | -10.32 | 141.49 | 0.2757 | -921.0 | -776.4 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -24.57 | 167.99 | -13.04 | 148.47 | 0.3943 | -783.0 | -661.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -19.50 | 165.27 | -15.77 | 134.42 | 0.3602 | -701.0 | -570.5 | |
| 0.00 | 1.42 | 0.00 | 0.76 | -19.10 | 162.03 | -19.00 | 128.61 | 0.3954 | -628.0 | -483.9 | |
| 0.00 | 2.39 | 0.00 | 1.31 | -22.28 | 161.44 | -19.60 | 133.96 | 0.4330 | -938.0 | -735.9 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -16.81 | 162.13 | -18.91 | 123.69 | 0.3744 | -736.0 | -720.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -20.87 | 161.57 | -19.47 | 131.52 | 0.4176 | -720.0 | -525.6 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -16.90 | 161.98 | -19.05 | 123.71 | 0.3771 | -928.0 | -768.5 | |
| 0.00 | 2.04 | 0.00 | 1.12 | -21.80 | 161.27 | -19.77 | 132.86 | 0.4302 | -849.0 | -662.6 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -23.40 | 157.91 | -23.12 | 131.59 | 0.4838 | -758.0 | -740.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
