SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.29 | 247.15 | 32.62 | 123.57 | -11.26 | 184.46 | 3.43 | 209.32 | 0.1300 | 587.2 | 361.0 | |
|
previous
or next observation for the same group /

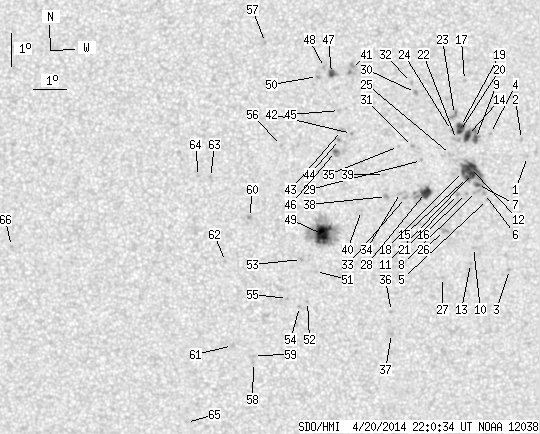

back to the solar disc SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.27 | 188.80 | 7.76 | 235.87 | 0.1613 | 756.0 | 583.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.76 | 188.60 | 7.57 | 237.98 | 0.1538 | 774.0 | 586.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -13.71 | 188.33 | 7.30 | 219.55 | 0.1947 | 791.0 | 653.5 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -9.59 | 187.65 | 6.61 | 235.51 | 0.1384 | 824.0 | 656.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.59 | 187.59 | 6.56 | 224.80 | 0.1595 | 703.0 | 568.2 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -11.41 | 187.50 | 6.46 | 225.21 | 0.1562 | 872.0 | 700.7 | |
| 1.15 | 37.34 | 0.58 | 18.69 | -11.14 | 187.27 | 6.24 | 225.51 | 0.1502 | 1097.8 | 707.7 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -11.35 | 187.25 | 6.21 | 224.38 | 0.1524 | 676.0 | 651.9 | |
| 2.22 | 24.65 | 1.11 | 12.31 | -9.75 | 187.19 | 6.15 | 232.65 | 0.1335 | 1008.3 | 769.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.05 | 187.19 | 6.16 | 217.16 | 0.1738 | 859.0 | 657.8 | |
| 5.50 | -7.00 | 2.75 | -7.00 | -10.80 | 187.11 | 6.08 | 226.42 | 0.1443 | 1237.9 | 999999 | |
| 9.67 | -7.00 | 4.84 | -7.00 | -10.62 | 187.05 | 6.01 | 227.06 | 0.1413 | 1167.6 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.53 | 187.11 | 6.08 | 215.13 | 0.1797 | 898.0 | 774.2 | |
| 5.14 | -9.00 | 2.57 | -9.00 | -9.66 | 186.94 | 5.91 | 232.08 | 0.1292 | 1158.2 | 999999 | |
| 2.66 | -7.00 | 1.33 | -7.00 | -10.93 | 186.96 | 5.93 | 225.09 | 0.1438 | 1022.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.41 | 186.94 | 5.91 | 222.65 | 0.1496 | 898.0 | 747.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -8.00 | 186.82 | 5.79 | 243.35 | 0.1123 | 825.0 | 714.2 | |
| 2.04 | -7.00 | 1.02 | -7.00 | -10.75 | 186.84 | 5.80 | 225.40 | 0.1401 | 1005.7 | 999999 | |
| 3.55 | -9.00 | 1.77 | -9.00 | -9.39 | 186.72 | 5.69 | 232.76 | 0.1234 | 1093.2 | 999999 | |
| 2.31 | -9.00 | 1.15 | -9.00 | -9.54 | 186.69 | 5.66 | 231.65 | 0.1245 | 1198.0 | 999999 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -11.44 | 186.66 | 5.63 | 221.15 | 0.1468 | 858.0 | 706.5 | |
| 0.00 | 3.28 | 0.00 | 1.64 | -9.78 | 186.60 | 5.57 | 229.70 | 0.1260 | 757.0 | 673.5 | |
| 0.00 | 4.97 | 0.00 | 2.48 | -9.03 | 186.53 | 5.50 | 234.30 | 0.1170 | 884.0 | 786.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.51 | 186.45 | 5.41 | 230.61 | 0.1209 | 920.0 | 791.4 | |
| 0.00 | 2.84 | 0.00 | 1.42 | -10.24 | 186.43 | 5.39 | 226.10 | 0.1289 | 787.0 | 534.6 | |
| 0.00 | 3.72 | 0.00 | 1.87 | -12.54 | 186.28 | 5.25 | 214.70 | 0.1575 | 945.0 | 796.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.97 | 186.25 | 5.21 | 209.86 | 0.1780 | 826.0 | 623.9 | |
| 7.36 | 16.67 | 3.68 | 8.34 | -11.39 | 185.68 | 4.64 | 216.06 | 0.1354 | 1091.4 | 632.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.42 | 185.54 | 4.50 | 219.98 | 0.1208 | 691.0 | 550.7 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -8.37 | 185.33 | 4.30 | 232.74 | 0.0936 | 1030.0 | 849.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.00 | 185.26 | 4.22 | 220.55 | 0.1121 | 706.0 | 579.1 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -8.07 | 185.21 | 4.17 | 234.63 | 0.0888 | 793.0 | 622.9 | |
| 0.00 | 2.31 | 0.00 | 1.15 | -11.54 | 185.06 | 4.03 | 211.67 | 0.1317 | 841.0 | 713.8 | |
| 0.00 | 2.75 | 0.00 | 1.37 | -11.39 | 184.91 | 3.87 | 211.28 | 0.1281 | 720.0 | 767.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.00 | 184.83 | 3.79 | 217.55 | 0.1074 | 832.0 | 559.8 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.01 | 184.68 | 3.64 | 199.70 | 0.1829 | 871.0 | 671.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -15.69 | 184.69 | 3.65 | 198.54 | 0.1939 | 750.0 | 638.8 | |
| 0.00 | 2.39 | 0.00 | 1.20 | -11.52 | 184.48 | 3.44 | 207.92 | 0.1262 | 922.0 | 723.4 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.85 | 184.41 | 3.37 | 210.16 | 0.1156 | 698.0 | 476.9 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -11.94 | 183.71 | 2.68 | 201.11 | 0.1275 | 691.0 | 436.1 | |
| 0.00 | 6.56 | 0.00 | 3.26 | -7.68 | 183.38 | 2.34 | 222.46 | 0.0603 | -735.0 | -827.6 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -9.62 | 183.39 | 2.35 | 207.46 | 0.0882 | -906.0 | -804.3 | |
| 0.00 | 2.75 | 0.00 | 1.37 | -9.53 | 183.08 | 2.05 | 204.78 | 0.0844 | -941.0 | -814.5 | |
| 0.00 | 1.60 | 0.00 | 0.79 | -9.80 | 183.02 | 1.99 | 202.86 | 0.0884 | -1059.0 | -880.3 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -8.92 | 183.02 | 1.98 | 207.45 | 0.0745 | -928.0 | -709.2 | |
| 0.89 | 4.79 | 0.44 | 2.38 | -10.16 | 182.90 | 1.87 | 200.16 | 0.0935 | -1159.2 | -862.3 | |
| 2.93 | 5.76 | 1.45 | 2.86 | -7.81 | 182.77 | 1.74 | 212.91 | 0.0555 | -1195.3 | -840.9 | |
| 0.00 | 1.77 | 0.00 | 0.88 | -7.63 | 182.56 | 1.52 | 211.36 | 0.0508 | -1067.0 | -889.4 | |
| 19.87 | 69.53 | 9.93 | 34.75 | -12.67 | 182.51 | 1.48 | 190.88 | 0.1340 | 1272.3 | 466.8 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -7.90 | 182.35 | 1.31 | 205.30 | 0.0533 | -1024.0 | -823.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -13.80 | 182.30 | 1.27 | 188.13 | 0.1526 | 776.0 | 599.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -14.71 | 182.06 | 1.02 | 185.93 | 0.1678 | -796.0 | -602.2 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -13.43 | 181.87 | 0.83 | 185.60 | 0.1454 | 985.0 | 731.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.87 | 181.81 | 0.77 | 184.42 | 0.1701 | -1073.0 | -765.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -14.62 | 181.43 | 0.40 | 182.35 | 0.1655 | -928.0 | -736.1 | |
| 0.00 | 1.15 | 0.00 | 0.57 | -9.98 | 181.25 | 0.21 | 182.51 | 0.0846 | -878.0 | -653.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -6.87 | 180.77 | -0.27 | 171.21 | 0.0305 | 796.0 | 622.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.58 | 180.37 | -0.67 | 176.78 | 0.1994 | 666.0 | 518.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.37 | 180.37 | -0.67 | 176.72 | 0.1957 | 685.0 | 433.0 | |
| 0.00 | 1.77 | 0.00 | 0.89 | -12.16 | 180.26 | -0.77 | 173.84 | 0.1232 | -985.0 | -793.0 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -16.06 | 179.71 | -1.32 | 173.31 | 0.1914 | 396.0 | 300.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.49 | 179.51 | -1.52 | 169.92 | 0.1480 | -893.0 | -720.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.94 | 179.07 | -1.96 | 161.57 | 0.1069 | 840.0 | 693.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.91 | 178.70 | -2.33 | 158.31 | 0.1085 | 902.0 | 664.2 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -18.42 | 178.23 | -2.80 | 168.58 | 0.2354 | 667.0 | 496.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -12.98 | 172.88 | -8.16 | 134.76 | 0.1956 | -764.0 | -605.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
