SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81.93 | 421.68 | 45.68 | 234.57 | 17.89 | 166.82 | -14.21 | 30.86 | 0.4562 | -466.9 | -323.4 | |
|
previous
or next observation for the same group /

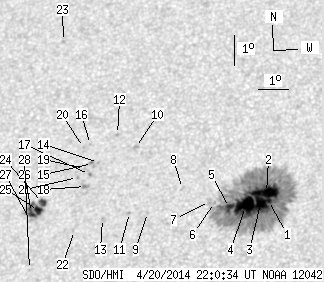

back to the solar disc SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 369.99 | 1.32 | 204.92 | 17.85 | 168.02 | -13.02 | 28.88 | 0.4457 | -1349.4 | -433.4 | |
| 21.28 | -1.00 | 11.79 | -1.00 | 18.12 | 167.93 | -13.10 | 28.74 | 0.4499 | -1176.6 | 999999 | |
| 13.21 | -1.00 | 7.31 | -1.00 | 17.76 | 167.76 | -13.27 | 29.46 | 0.4464 | -1496.1 | 999999 | |
| 27.14 | -1.00 | 15.03 | -1.00 | 17.67 | 167.28 | -13.75 | 30.44 | 0.4490 | -1266.5 | 999999 | |
| 4.97 | -1.00 | 2.76 | -1.00 | 17.65 | 166.76 | -14.27 | 31.39 | 0.4528 | -920.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 17.83 | 166.26 | -14.78 | 32.06 | 0.4593 | -509.0 | -371.4 | |
| 0.00 | 2.84 | 0.00 | 1.58 | 17.87 | 166.09 | -14.94 | 32.30 | 0.4611 | -144.0 | -148.3 | |
| 0.00 | 1.86 | 0.00 | 1.05 | 18.32 | 165.16 | -15.87 | 33.31 | 0.4746 | -538.0 | -496.4 | |
| 0.00 | 1.06 | 0.00 | 0.60 | 17.56 | 164.08 | -16.95 | 36.02 | 0.4747 | 679.0 | 517.0 | |
| 0.00 | 2.39 | 0.00 | 1.37 | 19.72 | 163.46 | -17.58 | 34.31 | 0.5064 | 725.0 | 617.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 17.58 | 163.48 | -17.55 | 36.93 | 0.4804 | 852.0 | 676.3 | |
| 0.00 | 1.42 | 0.00 | 0.82 | 20.17 | 162.80 | -18.24 | 34.75 | 0.5175 | 770.0 | 559.1 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 17.41 | 162.60 | -18.43 | 38.50 | 0.4866 | 739.0 | 682.3 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 19.26 | 162.26 | -18.77 | 36.62 | 0.5113 | 709.0 | 627.7 | |
| 0.00 | 2.75 | 0.00 | 1.58 | 19.23 | 162.06 | -18.97 | 36.94 | 0.5128 | 682.0 | 655.5 | |
| 0.00 | 0.62 | 0.00 | 0.36 | 19.87 | 161.92 | -19.12 | 36.37 | 0.5215 | 589.0 | 509.4 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 18.87 | 162.01 | -19.03 | 37.47 | 0.5091 | 866.0 | 724.6 | |
| 0.00 | 3.02 | 0.00 | 1.73 | 18.48 | 161.92 | -19.12 | 38.10 | 0.5054 | 961.0 | 777.0 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 19.08 | 161.81 | -19.22 | 37.49 | 0.5133 | 624.0 | 491.7 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 19.77 | 161.69 | -19.34 | 36.80 | 0.5224 | 479.0 | 403.9 | |
| 0.00 | 1.24 | 0.00 | 0.71 | 18.79 | 161.61 | -19.42 | 38.14 | 0.5118 | 698.0 | 565.8 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 17.05 | 161.71 | -19.33 | 40.31 | 0.4911 | 201.0 | 300.6 | |
| 0.00 | 1.15 | 0.00 | 0.70 | 23.39 | 160.49 | -20.55 | 34.29 | 0.5741 | 692.0 | 505.7 | |
| 3.72 | 24.03 | 2.15 | 13.85 | 18.00 | 160.52 | -20.51 | 40.67 | 0.5133 | 886.5 | 727.3 | |
| 4.70 | -24.00 | 2.71 | -24.00 | 17.74 | 160.42 | -20.62 | 41.16 | 0.5115 | 1160.5 | 999999 | |
| 4.52 | -24.00 | 2.61 | -24.00 | 17.69 | 160.19 | -20.85 | 41.55 | 0.5132 | 895.7 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.77 | 17.43 | 160.19 | -20.85 | 41.91 | 0.5104 | 414.0 | 340.1 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 15.83 | 160.33 | -20.70 | 43.97 | 0.4918 | 621.0 | 461.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
