SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.69 | 98.53 | 20.55 | 65.60 | -20.04 | 140.76 | -40.27 | 114.51 | 0.6687 | 164.0 | 207.4 | |
|
previous
or next observation for the same group /

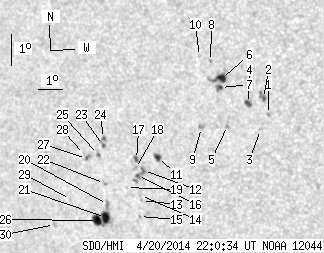

back to the solar disc SDO HMI 2014-04-20 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.88 | -18.95 | 145.89 | -35.15 | 115.00 | 0.6030 | 854.0 | 652.6 | |
| 0.89 | 5.14 | 0.55 | 3.18 | -18.44 | 145.81 | -35.22 | 114.17 | 0.6019 | 981.4 | 709.0 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -19.39 | 145.46 | -35.57 | 115.51 | 0.6102 | 732.0 | 578.3 | |
| 2.13 | 4.08 | 1.33 | 2.55 | -18.57 | 145.20 | -35.84 | 114.09 | 0.6102 | 891.9 | 702.2 | |
| 0.00 | 2.48 | 0.00 | 1.57 | -19.20 | 144.20 | -36.83 | 114.65 | 0.6251 | 764.0 | 620.2 | |
| 4.97 | 12.15 | 3.12 | 7.65 | -17.75 | 144.33 | -36.70 | 112.43 | 0.6181 | 989.3 | 652.0 | |
| 1.15 | 3.64 | 0.73 | 2.29 | -18.02 | 144.23 | -36.81 | 112.82 | 0.6204 | 749.2 | 656.7 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -17.20 | 144.03 | -37.01 | 111.46 | 0.6201 | 840.0 | 645.9 | |
| 0.00 | 2.57 | 0.00 | 1.65 | -19.21 | 143.16 | -37.88 | 114.22 | 0.6380 | -835.0 | -670.7 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -17.03 | 143.63 | -37.40 | 111.04 | 0.6245 | 587.0 | 448.3 | |
| 2.75 | 4.52 | 1.82 | 2.99 | -20.04 | 141.10 | -39.93 | 114.64 | 0.6657 | 857.0 | 589.6 | |
| 0.98 | 7.98 | 0.65 | 5.36 | -20.41 | 140.40 | -40.64 | 114.90 | 0.6753 | 772.7 | 560.2 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -21.33 | 140.00 | -41.03 | 116.07 | 0.6831 | 573.0 | 483.7 | |
| 0.00 | 1.95 | 0.00 | 1.32 | -21.17 | 140.01 | -41.02 | 115.85 | 0.6824 | 684.0 | 476.0 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -21.82 | 139.74 | -41.29 | 116.66 | 0.6878 | 563.0 | 454.4 | |
| 0.62 | -12.00 | 0.42 | -12.00 | -20.55 | 140.09 | -40.94 | 114.99 | 0.6793 | 546.6 | 999999 | |
| 1.33 | 2.75 | 0.89 | 1.84 | -20.05 | 140.21 | -40.82 | 114.33 | 0.6762 | 674.2 | 506.1 | |
| 0.00 | 1.95 | 0.00 | 1.31 | -20.32 | 140.08 | -40.95 | 114.67 | 0.6787 | -199.0 | -42.4 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -20.89 | 139.51 | -41.53 | 115.27 | 0.6872 | 269.0 | 304.0 | |
| 0.00 | 3.72 | 0.00 | 2.58 | -21.37 | 138.51 | -42.53 | 115.58 | 0.7002 | -704.0 | -570.5 | |
| 6.74 | 22.35 | 4.69 | 15.58 | -21.77 | 138.27 | -42.76 | 116.04 | 0.7041 | -992.6 | -526.8 | |
| 0.00 | 2.04 | 0.00 | 1.40 | -20.71 | 138.61 | -42.42 | 114.70 | 0.6969 | -671.0 | -633.7 | |
| 0.80 | 4.97 | 0.54 | 3.38 | -19.54 | 138.96 | -42.07 | 113.17 | 0.6892 | 708.9 | 556.7 | |
| 0.62 | -23.00 | 0.42 | -23.00 | -19.32 | 139.03 | -42.00 | 112.89 | 0.6877 | 814.4 | 999999 | |
| 0.53 | 1.68 | 0.36 | 1.16 | -19.80 | 138.66 | -42.37 | 113.44 | 0.6935 | 597.7 | 485.2 | |
| 6.74 | -21.00 | 4.72 | -21.00 | -21.84 | 137.89 | -43.14 | 116.01 | 0.7086 | -668.5 | 999999 | |
| 0.44 | 3.02 | 0.31 | 2.08 | -19.89 | 138.10 | -42.93 | 113.39 | 0.7001 | 555.0 | 521.7 | |
| 0.00 | 1.42 | 0.00 | 0.98 | -19.77 | 138.06 | -42.97 | 113.20 | 0.7003 | 54.0 | 218.6 | |
| 0.00 | 1.42 | 0.00 | 1.00 | -21.12 | 136.95 | -44.08 | 114.71 | 0.7167 | -396.0 | -431.3 | |
| 0.00 | 2.04 | 0.00 | 1.47 | -21.85 | 135.94 | -45.10 | 115.38 | 0.7300 | -530.0 | -373.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
