SDO HMI 2014-04-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.10 | 96.68 | 21.32 | 63.72 | -19.95 | 140.93 | -39.55 | 114.64 | 0.6599 | 185.8 | 264.4 | |
|
previous
or next observation for the same group /

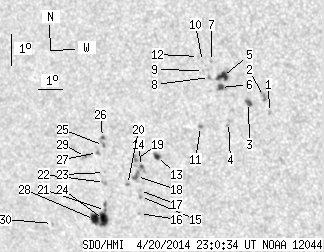

back to the solar disc SDO HMI 2014-04-20 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.93 | -18.91 | 145.92 | -34.56 | 115.23 | 0.5954 | 845.0 | 668.2 | |
| 0.00 | 4.17 | 0.00 | 2.56 | -18.41 | 145.81 | -34.67 | 114.37 | 0.5948 | 1038.0 | 803.5 | |
| 1.95 | 3.81 | 1.21 | 2.36 | -18.56 | 145.19 | -35.29 | 114.33 | 0.6033 | 874.1 | 624.5 | |
| 0.00 | 3.55 | 0.00 | 2.23 | -19.14 | 144.26 | -36.22 | 114.82 | 0.6173 | 801.0 | 629.0 | |
| 5.77 | 9.93 | 3.60 | 6.20 | -17.71 | 144.38 | -36.11 | 112.62 | 0.6104 | 962.0 | 684.8 | |
| 2.57 | 5.85 | 1.61 | 3.66 | -18.05 | 144.22 | -36.26 | 113.09 | 0.6136 | 785.7 | 334.5 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -17.23 | 144.06 | -36.42 | 111.73 | 0.6128 | 705.0 | 676.9 | |
| 0.00 | 1.86 | 0.00 | 1.17 | -17.72 | 143.86 | -36.62 | 112.42 | 0.6169 | 572.0 | 441.8 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -17.49 | 143.68 | -36.80 | 112.00 | 0.6185 | 351.0 | 317.7 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -17.21 | 143.71 | -36.77 | 111.57 | 0.6172 | 513.0 | 492.6 | |
| 0.00 | 1.60 | 0.00 | 1.02 | -19.20 | 143.13 | -37.36 | 114.43 | 0.6316 | -838.0 | -705.3 | |
| 0.00 | 0.89 | 0.00 | 0.56 | -17.05 | 143.59 | -36.90 | 111.27 | 0.6182 | 575.0 | 487.3 | |
| 2.66 | 4.26 | 1.75 | 2.80 | -20.03 | 141.09 | -39.39 | 114.84 | 0.6593 | 836.9 | 600.1 | |
| 0.71 | 11.53 | 0.47 | 7.69 | -20.31 | 140.38 | -40.10 | 114.97 | 0.6687 | 697.9 | 481.6 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -21.23 | 140.03 | -40.45 | 116.16 | 0.6760 | 665.0 | 576.2 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -21.76 | 139.81 | -40.67 | 116.82 | 0.6805 | 599.0 | 524.6 | |
| 0.00 | 1.60 | 0.00 | 1.07 | -21.05 | 140.05 | -40.43 | 115.90 | 0.6751 | 239.0 | 301.3 | |
| 1.86 | -14.00 | 1.24 | -14.00 | -20.61 | 140.07 | -40.41 | 115.28 | 0.6734 | 611.4 | 999999 | |
| 0.44 | 2.66 | 0.30 | 1.77 | -20.08 | 140.20 | -40.28 | 114.57 | 0.6700 | 714.8 | 550.4 | |
| 0.00 | 1.42 | 0.00 | 0.96 | -20.83 | 139.61 | -40.87 | 115.43 | 0.6795 | 329.0 | 150.7 | |
| 0.27 | 23.68 | 0.18 | 16.37 | -21.58 | 138.40 | -42.08 | 116.04 | 0.6959 | -836.0 | -616.4 | |
| 0.00 | 2.48 | 0.00 | 1.69 | -20.71 | 138.66 | -41.82 | 114.92 | 0.6900 | -804.0 | -626.9 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -20.40 | 138.77 | -41.71 | 114.52 | 0.6878 | -763.0 | -635.4 | |
| 7.89 | -21.00 | 5.45 | -21.00 | -21.86 | 138.21 | -42.27 | 116.35 | 0.6989 | -990.3 | 999999 | |
| 0.53 | 4.88 | 0.36 | 3.29 | -19.57 | 139.00 | -41.48 | 113.41 | 0.6825 | 677.8 | 594.6 | |
| 0.62 | -25.00 | 0.42 | -25.00 | -19.32 | 139.03 | -41.45 | 113.07 | 0.6813 | 759.3 | 999999 | |
| 0.00 | 1.60 | 0.00 | 1.09 | -19.77 | 138.68 | -41.81 | 113.59 | 0.6868 | 707.0 | 568.4 | |
| 6.39 | -21.00 | 4.43 | -21.00 | -21.84 | 137.82 | -42.66 | 116.18 | 0.7032 | -708.0 | 999999 | |
| 0.44 | 3.02 | 0.30 | 2.07 | -19.86 | 138.13 | -42.36 | 113.54 | 0.6935 | 512.6 | 480.3 | |
| 0.00 | 1.15 | 0.00 | 0.83 | -21.85 | 135.93 | -44.55 | 115.55 | 0.7241 | -409.0 | -410.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
