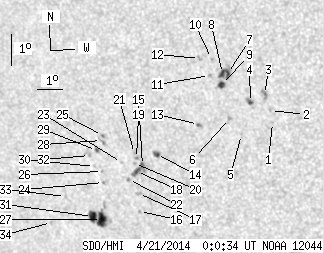

SDO HMI 2014-04-21 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.62 | 100.53 | 22.24 | 65.83 | -20.02 | 140.84 | -39.09 | 114.93 | 0.6547 | 175.7 | 262.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.49 | -19.28 | 145.94 | -33.99 | 116.11 | 0.5899 | 726.0 | 582.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -18.91 | 145.95 | -33.98 | 115.51 | 0.5881 | 733.0 | 630.8 | |
| 0.00 | 3.99 | 0.00 | 2.44 | -18.40 | 145.83 | -34.10 | 114.64 | 0.5874 | 1044.0 | 771.4 | |
| 1.15 | 4.08 | 0.71 | 2.51 | -18.62 | 145.24 | -34.69 | 114.71 | 0.5959 | 881.5 | 656.4 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -19.59 | 144.65 | -35.28 | 115.97 | 0.6074 | 822.0 | 547.8 | |
| 0.00 | 2.13 | 0.00 | 1.33 | -19.07 | 144.31 | -35.62 | 114.99 | 0.6095 | 854.0 | 701.1 | |
| 2.40 | 11.71 | 1.48 | 7.25 | -17.68 | 144.57 | -35.36 | 112.90 | 0.6008 | 989.4 | 694.4 | |
| 3.02 | -7.00 | 1.87 | -7.00 | -17.67 | 144.38 | -35.55 | 112.80 | 0.6032 | 888.5 | 999999 | |
| 2.93 | 5.41 | 1.82 | 3.36 | -18.01 | 144.26 | -35.67 | 113.29 | 0.6060 | 742.2 | 432.1 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -17.19 | 144.06 | -35.87 | 111.90 | 0.6056 | 717.0 | 657.6 | |
| 0.00 | 1.60 | 0.00 | 1.00 | -17.71 | 143.86 | -36.07 | 112.64 | 0.6099 | 657.0 | 478.1 | |
| 0.00 | 1.95 | 0.00 | 1.22 | -17.17 | 143.59 | -36.34 | 111.67 | 0.6114 | 496.0 | 473.0 | |
| 0.44 | 2.40 | 0.28 | 1.52 | -19.19 | 143.05 | -36.88 | 114.62 | 0.6257 | -774.8 | -656.5 | |
| 2.13 | 3.46 | 1.39 | 2.26 | -20.03 | 141.11 | -38.81 | 115.07 | 0.6524 | 891.5 | 660.8 | |
| 1.24 | 9.94 | 0.82 | 6.57 | -20.34 | 140.44 | -39.49 | 115.26 | 0.6616 | 850.1 | 552.5 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -21.76 | 139.85 | -40.08 | 117.06 | 0.6738 | 667.0 | 517.5 | |
| 0.00 | 2.13 | 0.00 | 1.42 | -21.20 | 140.00 | -39.93 | 116.32 | 0.6700 | 648.0 | 566.8 | |
| 3.10 | -15.00 | 2.06 | -15.00 | -20.51 | 140.13 | -39.79 | 115.38 | 0.6658 | 631.6 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -20.11 | 140.26 | -39.67 | 114.85 | 0.6629 | 795.0 | 597.2 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -20.26 | 140.13 | -39.80 | 115.02 | 0.6650 | 384.0 | 259.7 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -19.95 | 140.22 | -39.70 | 114.60 | 0.6628 | 672.0 | 507.1 | |
| 0.00 | 1.42 | 0.00 | 0.95 | -20.74 | 139.72 | -40.20 | 115.56 | 0.6715 | 349.0 | 275.6 | |
| 0.00 | 0.89 | 0.00 | 0.59 | -20.20 | 139.60 | -40.33 | 114.73 | 0.6710 | 377.0 | 244.4 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -20.77 | 138.65 | -41.28 | 115.20 | 0.6841 | -798.0 | -728.6 | |
| 0.35 | 1.42 | 0.24 | 0.95 | -19.32 | 139.07 | -40.86 | 113.27 | 0.6743 | 791.2 | 636.9 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -20.43 | 138.72 | -41.21 | 114.74 | 0.6821 | -575.0 | -561.4 | |
| 9.67 | 26.88 | 6.63 | 18.43 | -21.92 | 138.16 | -41.77 | 116.62 | 0.6936 | -882.6 | -489.2 | |
| 0.00 | 3.28 | 0.00 | 2.20 | -19.47 | 138.98 | -40.95 | 113.46 | 0.6759 | 696.0 | 550.6 | |
| 0.80 | 2.22 | 0.54 | 1.49 | -19.77 | 138.68 | -41.25 | 113.78 | 0.6804 | 603.4 | 452.2 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -20.26 | 138.43 | -41.50 | 114.39 | 0.6848 | -386.0 | -137.6 | |
| 6.39 | -27.00 | 4.40 | -27.00 | -21.80 | 137.81 | -42.12 | 116.33 | 0.6971 | -709.0 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.26 | -19.90 | 138.33 | -41.60 | 113.85 | 0.6848 | 559.0 | 345.7 | |
| 0.00 | 1.60 | 0.00 | 1.11 | -21.11 | 136.87 | -43.06 | 115.04 | 0.7054 | -503.0 | -407.8 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -21.88 | 135.95 | -43.98 | 115.79 | 0.7179 | -493.0 | -445.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
