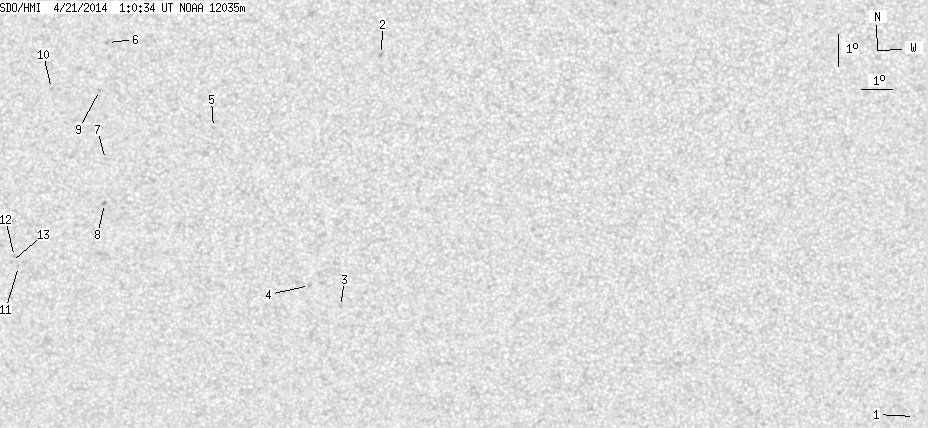

SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.65 | 0.00 | 7.91 | -21.61 | 164.57 | -14.81 | 141.09 | 0.3912 | -666.9 | -582.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.49 | -28.97 | 188.44 | 9.06 | 198.79 | 0.4297 | 661.0 | 537.8 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -17.46 | 170.81 | -8.57 | 146.46 | 0.2583 | -938.0 | -749.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -25.35 | 168.93 | -10.45 | 154.71 | 0.3852 | -696.0 | -560.8 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -24.66 | 167.95 | -11.43 | 151.79 | 0.3827 | -754.0 | -577.0 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -19.62 | 165.21 | -14.16 | 137.63 | 0.3435 | -741.0 | -580.7 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -16.91 | 161.98 | -17.40 | 126.00 | 0.3552 | -869.0 | -795.2 | |
| 0.00 | 0.98 | 0.00 | 0.53 | -20.53 | 161.51 | -17.87 | 133.16 | 0.3955 | -739.0 | -583.9 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -21.90 | 161.30 | -18.07 | 135.46 | 0.4122 | -915.0 | -793.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -18.38 | 161.56 | -17.82 | 128.76 | 0.3740 | -932.0 | -772.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -18.27 | 159.96 | -19.41 | 126.32 | 0.3934 | -737.0 | -623.8 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -23.80 | 158.02 | -21.35 | 134.35 | 0.4678 | -547.0 | -485.1 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -23.48 | 157.94 | -21.44 | 133.70 | 0.4656 | -853.0 | -735.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -23.64 | 157.80 | -21.57 | 133.80 | 0.4686 | -610.0 | -491.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
