SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.77 | 0.00 | 7.50 | -16.26 | 200.44 | 21.06 | 237.21 | 0.4099 | -371.0 | -191.9 | |
|
previous
or next observation for the same group /

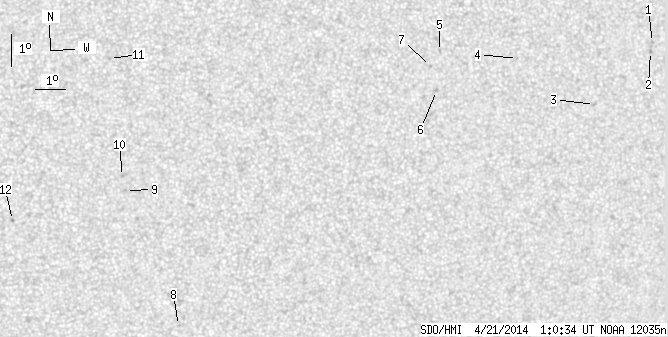

back to the solar disc SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.72 | -13.58 | 209.29 | 29.91 | 251.90 | 0.5120 | 795.0 | 620.0 | |
| 0.00 | 1.60 | 0.00 | 0.92 | -13.86 | 209.25 | 29.88 | 251.36 | 0.5125 | 687.0 | 589.7 | |
| 0.00 | 1.69 | 0.00 | 0.96 | -15.55 | 207.50 | 28.13 | 247.19 | 0.4947 | 723.0 | 531.7 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -14.25 | 204.64 | 25.26 | 248.05 | 0.4478 | -644.0 | -585.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -14.13 | 201.97 | 22.60 | 246.37 | 0.4084 | -505.0 | -421.3 | |
| 0.00 | 1.60 | 0.00 | 0.87 | -15.32 | 202.00 | 22.62 | 243.68 | 0.4156 | -840.0 | -710.1 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -14.60 | 201.72 | 22.34 | 245.09 | 0.4073 | -793.0 | -620.3 | |
| 0.00 | 1.24 | 0.00 | 0.67 | -22.84 | 194.16 | 14.79 | 217.47 | 0.3883 | -715.0 | -590.6 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -18.66 | 192.02 | 12.64 | 221.33 | 0.3154 | -831.0 | -663.3 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -18.23 | 191.89 | 12.52 | 222.02 | 0.3089 | -881.0 | -652.5 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -14.61 | 191.25 | 11.87 | 230.10 | 0.2606 | -680.0 | -507.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.64 | 188.42 | 9.04 | 210.47 | 0.2931 | -768.0 | -555.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
