SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.19 | 237.84 | 31.17 | 119.13 | -11.18 | 184.79 | 5.41 | 221.18 | 0.1474 | 571.4 | 388.8 | |
|
previous
or next observation for the same group /

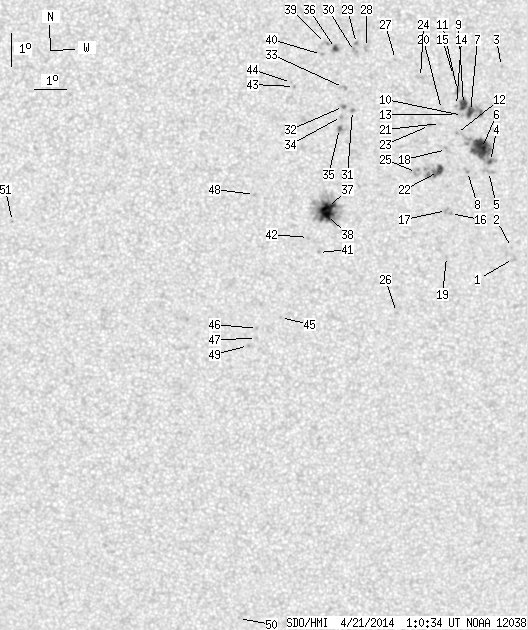

back to the solar disc SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.37 | 0.00 | 1.71 | -14.04 | 188.41 | 9.03 | 224.34 | 0.2189 | 555.0 | 563.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -13.71 | 188.33 | 8.96 | 225.23 | 0.2140 | 773.0 | 623.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.23 | 187.87 | 8.49 | 249.40 | 0.1568 | 659.0 | 564.5 | |
| 1.33 | 45.60 | 0.67 | 22.91 | -11.10 | 187.59 | 8.22 | 233.22 | 0.1759 | 962.3 | 743.7 | |
| 0.00 | 4.97 | 0.00 | 2.50 | -11.41 | 187.54 | 8.16 | 231.66 | 0.1783 | 810.0 | 682.0 | |
| 22.80 | -4.00 | 11.46 | -4.00 | -10.71 | 187.31 | 7.93 | 234.13 | 0.1680 | 1090.5 | 999999 | |
| 4.26 | 22.27 | 2.13 | 11.16 | -9.60 | 186.94 | 7.56 | 238.81 | 0.1524 | 1158.9 | 814.5 | |
| 0.00 | 2.04 | 0.00 | 1.03 | -11.41 | 186.89 | 7.51 | 229.34 | 0.1697 | 771.0 | 584.5 | |
| 5.23 | -7.00 | 2.62 | -7.00 | -9.39 | 186.72 | 7.34 | 239.30 | 0.1473 | 1155.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.72 | 186.70 | 7.32 | 237.29 | 0.1499 | 876.0 | 660.2 | |
| 0.00 | 3.90 | 0.00 | 1.95 | -8.97 | 186.53 | 7.15 | 241.23 | 0.1409 | 1051.0 | 778.2 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -10.27 | 186.52 | 7.15 | 233.64 | 0.1527 | 642.0 | 639.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -9.69 | 186.51 | 7.13 | 236.80 | 0.1470 | 757.0 | 568.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.42 | 186.51 | 7.13 | 238.38 | 0.1444 | 821.0 | 701.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -8.52 | 186.40 | 7.02 | 243.74 | 0.1354 | 874.0 | 598.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -12.69 | 186.40 | 7.02 | 222.05 | 0.1788 | 1031.0 | 886.3 | |
| 0.00 | 2.31 | 0.00 | 1.16 | -12.60 | 186.27 | 6.89 | 221.89 | 0.1762 | 945.0 | 715.8 | |
| 0.00 | 2.22 | 0.00 | 1.11 | -10.75 | 186.23 | 6.85 | 229.94 | 0.1538 | -437.0 | -344.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -14.00 | 186.31 | 6.93 | 217.11 | 0.1949 | 796.0 | 533.5 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -9.55 | 186.05 | 6.67 | 235.92 | 0.1389 | 669.0 | 520.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -9.97 | 186.02 | 6.65 | 233.34 | 0.1428 | -320.0 | -303.8 | |
| 5.77 | 18.01 | 2.89 | 9.03 | -11.42 | 185.99 | 6.62 | 225.73 | 0.1584 | 1021.2 | 751.0 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.03 | 185.69 | 6.31 | 231.57 | 0.1388 | 1098.0 | 844.5 | |
| 0.00 | 2.84 | 0.00 | 1.42 | -8.59 | 185.39 | 6.01 | 239.64 | 0.1205 | 862.0 | 694.4 | |
| 0.00 | 4.97 | 0.00 | 2.49 | -11.46 | 185.31 | 5.94 | 222.51 | 0.1507 | 613.0 | 784.9 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -15.73 | 184.79 | 5.41 | 206.24 | 0.2062 | 639.0 | 561.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -8.05 | 184.62 | 5.24 | 240.48 | 0.1044 | 742.0 | 591.5 | |
| 0.00 | 3.55 | 0.00 | 1.76 | -7.69 | 183.73 | 4.35 | 239.18 | 0.0879 | -859.0 | -647.2 | |
| 0.00 | 1.69 | 0.00 | 0.84 | -7.57 | 183.42 | 4.04 | 238.56 | 0.0823 | -1142.0 | -920.8 | |
| 0.00 | 4.08 | 0.00 | 2.03 | -7.82 | 183.36 | 3.98 | 235.71 | 0.0837 | -872.0 | -758.3 | |
| 0.00 | 1.95 | 0.00 | 0.97 | -9.60 | 183.32 | 3.94 | 221.00 | 0.1038 | -947.0 | -772.4 | |
| 0.00 | 2.48 | 0.00 | 1.24 | -9.48 | 183.04 | 3.66 | 219.73 | 0.0991 | -1153.0 | -903.0 | |
| 0.00 | 3.55 | 0.00 | 1.77 | -8.90 | 183.04 | 3.66 | 223.75 | 0.0916 | -842.0 | -693.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -9.78 | 182.98 | 3.61 | 217.39 | 0.1025 | -995.0 | -780.4 | |
| 0.62 | 2.31 | 0.31 | 1.15 | -10.14 | 182.93 | 3.55 | 214.88 | 0.1070 | -1142.4 | -825.8 | |
| 1.95 | 3.19 | 0.97 | 1.59 | -7.73 | 182.78 | 3.41 | 232.39 | 0.0747 | -1118.0 | -906.2 | |
| 10.91 | 69.29 | 5.46 | 34.67 | -12.54 | 182.58 | 3.20 | 202.94 | 0.1406 | 1283.2 | 463.5 | |
| 9.32 | -37.00 | 4.66 | -37.00 | -12.78 | 182.55 | 3.18 | 202.09 | 0.1443 | 1160.4 | 999999 | |
| 0.00 | 2.93 | 0.00 | 1.45 | -7.58 | 182.48 | 3.10 | 231.45 | 0.0689 | -507.0 | -649.4 | |
| 0.00 | 1.42 | 0.00 | 0.70 | -7.91 | 182.36 | 2.98 | 226.72 | 0.0711 | -816.0 | -663.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -13.91 | 182.32 | 2.94 | 198.08 | 0.1612 | 733.0 | 594.7 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -13.45 | 182.00 | 2.63 | 197.12 | 0.1521 | 773.0 | 650.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -8.88 | 181.54 | 2.16 | 209.73 | 0.0755 | 860.0 | 664.4 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -8.76 | 181.45 | 2.07 | 209.48 | 0.0729 | 736.0 | 599.4 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -15.90 | 181.15 | 1.78 | 189.07 | 0.1899 | 823.0 | 656.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.23 | 180.43 | 1.06 | 185.25 | 0.1942 | 697.0 | 614.9 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -16.54 | 180.40 | 1.03 | 184.96 | 0.1994 | 814.0 | 553.8 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -12.15 | 180.33 | 0.95 | 187.56 | 0.1237 | -860.0 | -631.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -16.76 | 180.15 | 0.78 | 183.68 | 0.2027 | 695.0 | 591.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -25.31 | 179.85 | 0.48 | 181.25 | 0.3465 | -679.0 | -475.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -12.93 | 172.84 | -6.54 | 140.79 | 0.1764 | -726.0 | -523.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
