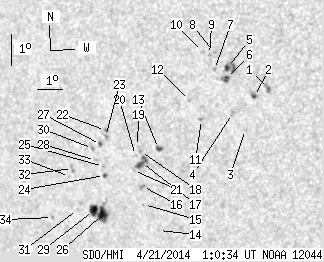

SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.75 | 95.71 | 19.02 | 62.39 | -20.06 | 140.65 | -38.73 | 115.15 | 0.6506 | 87.4 | 242.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 01:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.62 | 3.99 | 0.38 | 2.42 | -18.40 | 145.85 | -33.53 | 114.92 | 0.5801 | 964.7 | 745.5 | |
| 0.98 | 3.99 | 0.60 | 2.44 | -18.62 | 145.27 | -34.11 | 114.99 | 0.5886 | 864.3 | 541.6 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -19.62 | 144.68 | -34.70 | 116.30 | 0.6004 | 753.0 | 529.3 | |
| 0.00 | 3.11 | 0.00 | 1.92 | -19.10 | 144.30 | -35.08 | 115.29 | 0.6029 | 789.0 | 603.8 | |
| 1.95 | 8.25 | 1.20 | 5.07 | -17.67 | 144.44 | -34.94 | 113.07 | 0.5953 | 905.0 | 891.1 | |
| 2.13 | 4.79 | 1.31 | 2.96 | -18.01 | 144.32 | -35.05 | 113.56 | 0.5981 | 815.8 | 508.1 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -17.71 | 143.93 | -35.45 | 112.91 | 0.6020 | 703.0 | 462.3 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -17.19 | 144.04 | -35.33 | 112.12 | 0.5986 | 871.0 | 701.1 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -17.24 | 143.84 | -35.54 | 112.11 | 0.6014 | 650.0 | 526.7 | |
| 0.00 | 1.51 | 0.00 | 0.94 | -17.13 | 143.59 | -35.79 | 111.84 | 0.6043 | 587.0 | 495.5 | |
| 0.00 | 1.77 | 0.00 | 1.12 | -19.22 | 143.05 | -36.33 | 114.91 | 0.6190 | -800.0 | -681.0 | |
| 0.00 | 0.98 | 0.00 | 0.62 | -18.61 | 142.73 | -36.65 | 113.82 | 0.6207 | -704.0 | -571.6 | |
| 1.77 | 3.28 | 1.15 | 2.12 | -20.03 | 141.09 | -38.29 | 115.29 | 0.6461 | 875.0 | 671.5 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -22.58 | 140.29 | -39.09 | 118.66 | 0.6658 | 491.0 | 402.0 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -21.73 | 139.94 | -39.44 | 117.30 | 0.6663 | 401.0 | 485.1 | |
| 0.00 | 2.75 | 0.00 | 1.81 | -21.17 | 140.08 | -39.30 | 116.54 | 0.6625 | 754.0 | 579.3 | |
| 4.35 | 9.94 | 2.85 | 6.51 | -20.42 | 140.27 | -39.10 | 115.54 | 0.6574 | 780.9 | 590.3 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -20.08 | 140.33 | -39.04 | 115.06 | 0.6554 | 808.0 | 678.8 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -19.92 | 140.26 | -39.12 | 114.79 | 0.6557 | 624.0 | 515.4 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -20.19 | 140.09 | -39.28 | 115.13 | 0.6587 | 368.0 | 261.1 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -20.65 | 139.87 | -39.51 | 115.71 | 0.6630 | 393.0 | 324.7 | |
| 0.00 | 1.51 | 0.00 | 1.00 | -19.35 | 139.09 | -40.28 | 113.52 | 0.6676 | 893.0 | 766.2 | |
| 0.00 | 2.75 | 0.00 | 1.83 | -19.54 | 139.04 | -40.34 | 113.77 | 0.6689 | 761.0 | 585.5 | |
| 0.89 | 1.86 | 0.60 | 1.25 | -20.74 | 138.61 | -40.76 | 115.35 | 0.6780 | -797.1 | -706.5 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -20.46 | 138.66 | -40.71 | 114.96 | 0.6764 | -810.0 | -670.5 | |
| 9.05 | 22.71 | 6.16 | 15.48 | -21.95 | 138.11 | -41.26 | 116.86 | 0.6880 | -952.9 | -618.3 | |
| 0.80 | 2.04 | 0.53 | 1.36 | -19.77 | 138.76 | -40.62 | 114.01 | 0.6730 | 554.9 | 476.2 | |
| 0.00 | 1.60 | 0.00 | 1.07 | -20.25 | 138.39 | -40.99 | 114.57 | 0.6789 | -252.0 | -101.9 | |
| 6.21 | -26.00 | 4.24 | -26.00 | -21.80 | 137.78 | -41.60 | 116.52 | 0.6913 | -708.3 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.13 | -19.87 | 138.38 | -40.99 | 114.03 | 0.6778 | 624.0 | 488.2 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -21.73 | 137.10 | -42.28 | 116.17 | 0.6986 | -430.0 | -312.0 | |
| 0.00 | 3.19 | 0.00 | 2.18 | -20.44 | 137.34 | -42.04 | 114.47 | 0.6917 | -724.0 | -661.2 | |
| 0.00 | 0.89 | 0.00 | 0.61 | -20.68 | 137.12 | -42.25 | 114.73 | 0.6949 | -633.0 | -533.5 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -21.91 | 135.92 | -43.46 | 116.01 | 0.7123 | -447.0 | -374.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
