SDO HMI 2014-04-21 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.29 | 0.00 | 3.43 | 15.49 | 189.73 | 11.45 | 332.61 | 0.4177 | 290.0 | 199.5 | |
|
previous
or next observation for the same group /

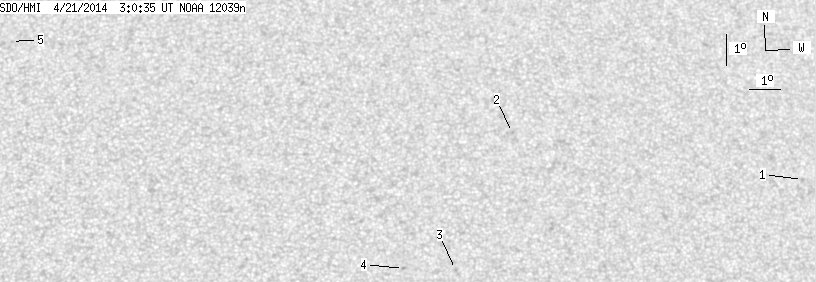

back to the solar disc SDO HMI 2014-04-21 03:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.77 | 0.00 | 1.01 | 15.91 | 199.77 | 21.49 | 315.05 | 0.5007 | -160.0 | -148.1 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 17.19 | 190.35 | 12.07 | 332.13 | 0.4291 | -774.0 | -647.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 12.76 | 188.30 | 10.02 | 330.96 | 0.3512 | 816.0 | 708.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.77 | 186.67 | 8.39 | 335.07 | 0.3392 | 820.0 | 636.6 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 20.10 | 174.39 | -3.88 | 8.49 | 0.4325 | 748.0 | 616.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
