SDO HMI 2014-04-21 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.75 | 244.85 | 26.03 | 123.07 | -11.17 | 184.98 | 7.25 | 229.02 | 0.1692 | 475.1 | 377.9 | |
|
previous
or next observation for the same group /

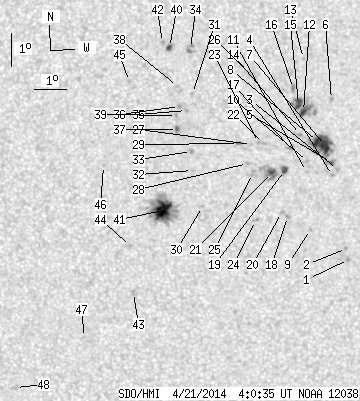

back to the solar disc SDO HMI 2014-04-21 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.82 | -14.06 | 188.46 | 10.74 | 229.03 | 0.2404 | 771.0 | 621.4 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -13.73 | 188.39 | 10.66 | 229.93 | 0.2359 | 778.0 | 682.6 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -11.33 | 188.01 | 10.28 | 237.94 | 0.2074 | 736.0 | 499.0 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -11.51 | 187.86 | 10.13 | 236.81 | 0.2069 | 840.0 | 673.9 | |
| 0.62 | 3.99 | 0.31 | 2.02 | -11.12 | 187.81 | 10.09 | 238.35 | 0.2028 | 978.1 | 739.4 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -9.22 | 187.76 | 10.03 | 247.04 | 0.1875 | 838.0 | 654.8 | |
| 13.05 | 38.70 | 6.59 | 19.54 | -10.61 | 187.61 | 9.88 | 240.11 | 0.1955 | 1148.3 | 723.2 | |
| 6.66 | -7.00 | 3.36 | -7.00 | -10.49 | 187.36 | 9.63 | 240.02 | 0.1908 | 1177.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -13.16 | 187.23 | 9.50 | 228.72 | 0.2149 | 878.0 | 720.9 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -11.10 | 187.07 | 9.34 | 236.50 | 0.1918 | 868.0 | 646.1 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -11.40 | 187.04 | 9.32 | 235.12 | 0.1943 | 681.0 | 605.5 | |
| 3.46 | 30.62 | 1.74 | 15.41 | -9.59 | 186.90 | 9.17 | 243.28 | 0.1767 | 1160.7 | 678.4 | |
| 0.00 | 1.07 | 0.00 | 0.53 | -7.99 | 186.86 | 9.13 | 251.95 | 0.1661 | 703.0 | 547.3 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -10.29 | 186.82 | 9.10 | 239.62 | 0.1811 | 875.0 | 651.2 | |
| 5.06 | -12.00 | 2.54 | -12.00 | -9.35 | 186.74 | 9.01 | 244.14 | 0.1725 | 1175.0 | 999999 | |
| 0.00 | 3.02 | 0.00 | 1.52 | -8.90 | 186.57 | 8.85 | 246.20 | 0.1668 | 925.0 | 793.1 | |
| 0.00 | 3.82 | 0.00 | 1.92 | -10.68 | 186.52 | 8.80 | 236.89 | 0.1803 | -932.0 | -606.1 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -12.78 | 186.50 | 8.77 | 227.91 | 0.2013 | 981.0 | 784.3 | |
| 2.66 | 25.92 | 1.34 | 13.05 | -11.38 | 186.36 | 8.63 | 233.19 | 0.1846 | 1086.8 | 728.6 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -12.66 | 186.30 | 8.58 | 227.75 | 0.1975 | 872.0 | 642.9 | |
| 2.84 | -19.00 | 1.43 | -19.00 | -11.45 | 185.96 | 8.23 | 231.61 | 0.1798 | 1140.2 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -10.57 | 185.69 | 7.96 | 234.83 | 0.1673 | -555.0 | -335.8 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -10.54 | 185.53 | 7.80 | 234.46 | 0.1648 | -559.0 | -480.4 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -12.91 | 185.50 | 7.77 | 224.04 | 0.1906 | -801.0 | -575.2 | |
| 0.00 | 5.68 | 0.00 | 2.86 | -11.48 | 185.37 | 7.64 | 229.41 | 0.1724 | 845.0 | 698.6 | |
| 0.00 | 3.99 | 0.00 | 2.00 | -8.52 | 185.27 | 7.54 | 245.15 | 0.1438 | 736.0 | 652.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.61 | 185.32 | 7.59 | 233.40 | 0.1624 | -369.0 | -209.2 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -11.18 | 185.21 | 7.48 | 230.20 | 0.1670 | 923.0 | 757.2 | |
| 0.00 | 2.31 | 0.00 | 1.16 | -10.58 | 184.91 | 7.19 | 232.06 | 0.1566 | -1027.0 | -732.3 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -12.50 | 183.84 | 6.12 | 218.88 | 0.1664 | -756.0 | -562.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -9.08 | 183.47 | 5.74 | 234.86 | 0.1214 | -745.0 | -570.8 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -11.41 | 183.51 | 5.78 | 221.91 | 0.1485 | 773.0 | 600.5 | |
| 0.00 | 2.66 | 0.00 | 1.33 | -10.84 | 183.47 | 5.74 | 224.48 | 0.1409 | -1023.0 | -825.8 | |
| 0.00 | 6.75 | 0.00 | 3.36 | -7.72 | 183.39 | 5.66 | 244.85 | 0.1085 | -505.0 | -822.2 | |
| 0.00 | 1.69 | 0.00 | 0.84 | -9.60 | 183.29 | 5.57 | 230.63 | 0.1243 | -927.0 | -704.8 | |
| 0.00 | 1.69 | 0.00 | 0.84 | -9.48 | 183.08 | 5.35 | 230.29 | 0.1201 | -1084.0 | -929.4 | |
| 0.80 | 3.55 | 0.40 | 1.77 | -10.17 | 183.03 | 5.30 | 225.78 | 0.1274 | -1173.6 | -880.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -8.87 | 183.01 | 5.28 | 234.08 | 0.1128 | -840.0 | -642.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -9.75 | 182.99 | 5.26 | 228.10 | 0.1220 | -1044.0 | -834.9 | |
| 1.69 | 3.20 | 0.84 | 1.59 | -7.70 | 182.75 | 5.02 | 242.39 | 0.0984 | -1139.7 | -875.6 | |
| 14.91 | 64.79 | 7.48 | 32.49 | -12.63 | 182.60 | 4.88 | 212.34 | 0.1558 | 1346.2 | 557.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -7.55 | 182.53 | 4.81 | 242.78 | 0.0939 | -982.0 | -831.9 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -15.13 | 181.75 | 4.02 | 201.24 | 0.1877 | -996.0 | -750.5 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -13.73 | 181.63 | 3.90 | 203.80 | 0.1646 | 853.0 | 596.6 | |
| 0.00 | 1.60 | 0.00 | 0.79 | -8.73 | 181.54 | 3.81 | 226.11 | 0.0916 | 701.0 | 573.7 | |
| 0.00 | 1.07 | 0.00 | 0.53 | -11.27 | 180.77 | 3.04 | 205.84 | 0.1198 | -823.0 | -671.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -16.52 | 180.23 | 2.50 | 191.96 | 0.2031 | 695.0 | 504.8 | |
| 0.00 | 3.82 | 0.00 | 1.94 | -18.06 | 178.06 | 0.34 | 181.43 | 0.2251 | 704.0 | 635.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
