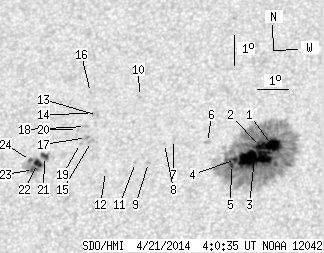

SDO HMI 2014-04-21 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.23 | 428.70 | 40.23 | 235.18 | 17.85 | 166.76 | -10.96 | 24.82 | 0.4315 | -530.4 | -343.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.27 | 378.19 | 8.35 | 206.78 | 18.10 | 167.95 | -9.78 | 22.33 | 0.4266 | -1217.7 | -451.8 | |
| 5.15 | -1.00 | 2.82 | -1.00 | 18.07 | 167.57 | -10.16 | 23.14 | 0.4285 | -1112.8 | 999999 | |
| 37.46 | -1.00 | 20.47 | -1.00 | 17.71 | 167.39 | -10.33 | 23.84 | 0.4245 | -1398.8 | 999999 | |
| 1.86 | -1.00 | 1.02 | -1.00 | 17.66 | 166.79 | -10.94 | 25.13 | 0.4277 | -940.0 | 999999 | |
| 2.13 | -1.00 | 1.17 | -1.00 | 17.50 | 166.67 | -11.06 | 25.54 | 0.4262 | -1003.2 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.42 | 18.23 | 165.84 | -11.88 | 26.37 | 0.4422 | -626.0 | -468.6 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 18.36 | 164.73 | -13.00 | 28.32 | 0.4519 | -548.0 | -353.6 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 18.23 | 164.45 | -13.28 | 28.97 | 0.4523 | 689.0 | 495.1 | |
| 0.00 | 1.69 | 0.00 | 0.93 | 17.62 | 163.97 | -13.76 | 30.54 | 0.4478 | 820.0 | 644.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 19.81 | 163.49 | -14.23 | 28.91 | 0.4804 | 638.0 | 525.3 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 17.63 | 163.55 | -14.18 | 31.29 | 0.4514 | 803.0 | 686.5 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 17.36 | 162.59 | -15.14 | 33.30 | 0.4558 | 715.0 | 625.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 19.21 | 162.16 | -15.57 | 31.79 | 0.4830 | 782.0 | 666.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 19.28 | 161.99 | -15.74 | 31.99 | 0.4853 | 878.0 | 748.8 | |
| 0.00 | 2.57 | 0.00 | 1.45 | 18.36 | 162.04 | -15.69 | 32.99 | 0.4731 | 607.0 | 686.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 19.98 | 161.85 | -15.88 | 31.41 | 0.4953 | 591.0 | 491.1 | |
| 0.00 | 2.04 | 0.00 | 1.15 | 18.49 | 161.86 | -15.86 | 33.12 | 0.4763 | 873.0 | 715.9 | |
| 0.00 | 1.78 | 0.00 | 1.00 | 18.86 | 161.80 | -15.93 | 32.80 | 0.4815 | 707.0 | 588.4 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 18.30 | 161.68 | -16.04 | 33.65 | 0.4754 | 761.0 | 648.6 | |
| 0.00 | 1.24 | 0.00 | 0.70 | 18.77 | 161.54 | -16.19 | 33.32 | 0.4825 | 667.0 | 558.5 | |
| 2.93 | 30.27 | 1.65 | 17.07 | 17.91 | 160.53 | -17.20 | 35.99 | 0.4807 | 946.5 | 581.5 | |
| 4.08 | -21.00 | 2.30 | -21.00 | 17.68 | 160.32 | -17.41 | 36.61 | 0.4799 | 1121.2 | 999999 | |
| 3.28 | -21.00 | 1.85 | -21.00 | 17.49 | 160.21 | -17.52 | 37.04 | 0.4786 | 1040.6 | 999999 | |
| 1.07 | -21.00 | 0.60 | -21.00 | 17.79 | 160.08 | -17.65 | 36.85 | 0.4834 | 592.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
