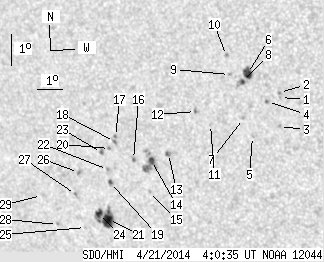

SDO HMI 2014-04-21 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.90 | 89.81 | 19.33 | 57.56 | -20.21 | 140.42 | -37.31 | 115.99 | 0.6342 | 33.3 | 192.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 04:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.53 | -18.49 | 145.84 | -31.89 | 115.97 | 0.5594 | 767.0 | 659.3 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -18.33 | 145.83 | -31.89 | 115.70 | 0.5587 | 926.0 | 774.9 | |
| 0.00 | 1.51 | 0.00 | 0.91 | -19.38 | 145.61 | -32.12 | 117.34 | 0.5668 | 727.0 | 588.8 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -18.59 | 145.33 | -32.40 | 115.86 | 0.5665 | 835.0 | 748.2 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -19.65 | 144.52 | -33.21 | 117.15 | 0.5819 | 713.0 | 601.9 | |
| 6.21 | 8.34 | 3.74 | 5.02 | -17.69 | 144.76 | -32.96 | 114.06 | 0.5698 | 1006.5 | 712.5 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -19.07 | 144.31 | -33.42 | 116.11 | 0.5818 | 837.0 | 661.5 | |
| 1.24 | 5.06 | 0.75 | 3.06 | -17.93 | 144.53 | -33.20 | 114.33 | 0.5740 | 824.8 | 585.7 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -17.69 | 144.08 | -33.64 | 113.72 | 0.5787 | 597.0 | 459.2 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -17.10 | 144.09 | -33.63 | 112.74 | 0.5762 | 897.0 | 681.9 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -19.20 | 143.01 | -34.72 | 115.64 | 0.5989 | -799.0 | -626.6 | |
| 0.00 | 2.04 | 0.00 | 1.26 | -18.77 | 142.53 | -35.20 | 114.73 | 0.6031 | -697.0 | -605.5 | |
| 0.00 | 3.02 | 0.00 | 1.91 | -20.01 | 141.14 | -36.59 | 116.03 | 0.6255 | 885.0 | 783.6 | |
| 3.02 | 16.15 | 1.93 | 10.35 | -20.19 | 140.41 | -37.32 | 115.97 | 0.6352 | 912.3 | 603.5 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -21.15 | 140.04 | -37.68 | 117.24 | 0.6435 | 553.0 | 428.3 | |
| 0.44 | 1.42 | 0.29 | 0.92 | -20.12 | 139.69 | -38.03 | 115.56 | 0.6435 | 545.2 | 368.3 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -19.37 | 139.17 | -38.56 | 114.22 | 0.6470 | 819.0 | 745.8 | |
| 0.44 | 1.86 | 0.29 | 1.21 | -19.52 | 139.09 | -38.64 | 114.42 | 0.6486 | 657.4 | 544.9 | |
| 0.98 | 2.22 | 0.64 | 1.46 | -20.78 | 138.55 | -39.18 | 116.05 | 0.6598 | -803.3 | -664.5 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -19.73 | 138.82 | -38.90 | 114.62 | 0.6525 | 687.0 | 588.9 | |
| 12.51 | 26.63 | 8.33 | 17.73 | -21.93 | 138.09 | -39.64 | 117.51 | 0.6695 | -905.3 | -549.8 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -20.37 | 138.55 | -39.18 | 115.45 | 0.6582 | -814.0 | -712.1 | |
| 0.80 | 2.13 | 0.52 | 1.40 | -19.83 | 138.46 | -39.27 | 114.63 | 0.6573 | 579.4 | 427.8 | |
| 4.26 | -21.00 | 2.84 | -21.00 | -21.72 | 137.78 | -39.95 | 117.09 | 0.6723 | -785.4 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -22.12 | 137.04 | -40.69 | 117.36 | 0.6823 | -531.0 | -476.8 | |
| 0.00 | 1.95 | 0.00 | 1.30 | -20.40 | 137.32 | -40.41 | 115.01 | 0.6727 | -890.0 | -753.3 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -21.07 | 136.97 | -40.75 | 115.84 | 0.6792 | -866.0 | -737.5 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -21.96 | 135.88 | -41.84 | 116.68 | 0.6947 | -626.0 | -400.4 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -21.02 | 135.52 | -42.21 | 115.24 | 0.6956 | -354.0 | -405.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
