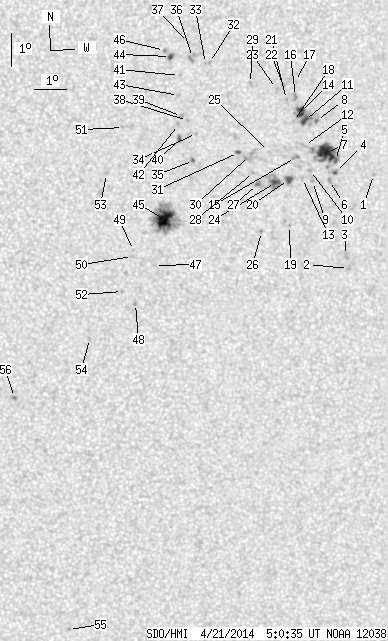

SDO HMI 2014-04-21 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.67 | 242.18 | 27.53 | 121.89 | -11.25 | 184.91 | 7.73 | 230.44 | 0.1765 | 411.3 | 344.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.45 | -11.18 | 189.08 | 11.91 | 242.01 | 0.2302 | 731.0 | 649.7 | |
| 0.00 | 2.40 | 0.00 | 1.22 | -14.04 | 188.42 | 11.25 | 230.32 | 0.2469 | 825.0 | 680.1 | |
| 0.00 | 3.37 | 0.00 | 1.72 | -13.65 | 188.34 | 11.16 | 231.42 | 0.2418 | 613.0 | 449.7 | |
| 0.89 | 2.84 | 0.45 | 1.44 | -11.14 | 187.89 | 10.71 | 239.73 | 0.2122 | 943.3 | 738.6 | |
| 1.15 | 39.68 | 0.58 | 20.07 | -10.77 | 187.88 | 10.70 | 241.23 | 0.2091 | 814.5 | 767.6 | |
| 0.00 | 2.66 | 0.00 | 1.35 | -11.38 | 187.71 | 10.54 | 238.31 | 0.2116 | 828.0 | 699.3 | |
| 16.42 | -5.00 | 8.31 | -5.00 | -10.53 | 187.59 | 10.41 | 241.63 | 0.2029 | 1208.0 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -9.57 | 187.25 | 10.07 | 245.35 | 0.1906 | 928.0 | 736.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -11.42 | 187.18 | 10.01 | 236.86 | 0.2043 | 855.0 | 688.3 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -11.09 | 187.11 | 9.93 | 238.09 | 0.2003 | 961.0 | 648.2 | |
| 3.64 | 22.63 | 1.83 | 11.40 | -9.58 | 186.88 | 9.70 | 244.54 | 0.1849 | 1151.5 | 692.6 | |
| 0.00 | 2.04 | 0.00 | 1.03 | -10.33 | 186.90 | 9.72 | 240.96 | 0.1909 | 735.0 | 652.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -11.33 | 186.87 | 9.69 | 236.42 | 0.1990 | 630.0 | 435.9 | |
| 5.41 | -11.00 | 2.73 | -11.00 | -9.31 | 186.75 | 9.57 | 245.61 | 0.1809 | 1111.7 | 999999 | |
| 0.00 | 3.20 | 0.00 | 1.61 | -10.70 | 186.63 | 9.45 | 238.59 | 0.1900 | -762.0 | -634.5 | |
| 0.00 | 3.11 | 0.00 | 1.56 | -8.86 | 186.58 | 9.40 | 247.61 | 0.1754 | 856.0 | 700.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -8.40 | 186.57 | 9.39 | 250.05 | 0.1725 | 864.0 | 659.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -9.61 | 186.54 | 9.36 | 243.59 | 0.1799 | 897.0 | 735.9 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -12.76 | 186.51 | 9.33 | 229.67 | 0.2085 | 935.0 | 650.5 | |
| 2.84 | 4.97 | 1.43 | 2.51 | -11.37 | 186.44 | 9.26 | 235.07 | 0.1932 | 1130.5 | 701.9 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -8.95 | 186.31 | 9.13 | 246.52 | 0.1716 | 961.0 | 784.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -8.53 | 186.20 | 9.02 | 248.63 | 0.1673 | 921.0 | 791.0 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -8.62 | 185.99 | 8.81 | 247.65 | 0.1645 | 726.0 | 655.4 | |
| 3.20 | 15.62 | 1.61 | 7.88 | -11.46 | 186.03 | 8.85 | 233.49 | 0.1886 | 1131.0 | 779.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.53 | 185.79 | 8.61 | 237.06 | 0.1762 | -491.0 | -317.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -12.96 | 185.64 | 8.47 | 226.23 | 0.1996 | -815.0 | -655.4 | |
| 0.44 | 3.99 | 0.22 | 2.01 | -11.53 | 185.48 | 8.30 | 231.44 | 0.1817 | 966.2 | 813.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -11.17 | 185.34 | 8.16 | 232.62 | 0.1761 | 913.0 | 643.5 | |
| 0.00 | 2.04 | 0.00 | 1.02 | -8.48 | 185.19 | 8.01 | 246.60 | 0.1508 | 757.0 | 630.7 | |
| 0.00 | 7.01 | 0.00 | 3.52 | -10.66 | 185.20 | 8.03 | 234.61 | 0.1691 | -540.0 | -444.8 | |
| 0.80 | 2.13 | 0.40 | 1.07 | -10.57 | 184.86 | 7.68 | 233.89 | 0.1634 | -921.6 | -673.3 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -7.86 | 183.92 | 6.74 | 247.33 | 0.1266 | -821.0 | -654.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -7.89 | 183.80 | 6.62 | 246.73 | 0.1248 | -760.0 | -488.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.01 | 183.55 | 6.38 | 231.86 | 0.1397 | -805.0 | -620.8 | |
| 0.44 | 1.60 | 0.22 | 0.80 | -10.82 | 183.48 | 6.30 | 227.12 | 0.1477 | -1042.8 | -925.8 | |
| 0.00 | 4.79 | 0.00 | 2.39 | -7.71 | 183.40 | 6.22 | 246.83 | 0.1173 | -628.0 | -884.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -7.26 | 183.27 | 6.09 | 250.13 | 0.1124 | -119.0 | -152.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.62 | 183.27 | 6.09 | 232.94 | 0.1317 | -947.0 | -710.7 | |
| 0.00 | 2.13 | 0.00 | 1.06 | -9.50 | 183.08 | 5.91 | 232.84 | 0.1279 | -1100.0 | -860.2 | |
| 0.98 | 3.02 | 0.49 | 1.51 | -10.19 | 183.03 | 5.86 | 228.45 | 0.1348 | -1115.2 | -857.1 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -8.26 | 183.00 | 5.83 | 241.14 | 0.1152 | -722.0 | -569.0 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -9.74 | 183.00 | 5.82 | 230.92 | 0.1293 | -1088.0 | -838.8 | |
| 0.00 | 1.07 | 0.00 | 0.53 | -8.86 | 182.98 | 5.80 | 236.60 | 0.1202 | -920.0 | -634.4 | |
| 1.51 | 3.20 | 0.75 | 1.59 | -7.69 | 182.72 | 5.54 | 244.64 | 0.1064 | -1199.4 | -943.4 | |
| 16.95 | 69.95 | 8.51 | 35.11 | -12.62 | 182.62 | 5.44 | 215.21 | 0.1611 | 1337.5 | 505.1 | |
| 0.00 | 1.60 | 0.00 | 0.80 | -7.51 | 182.54 | 5.36 | 245.49 | 0.1022 | -1058.0 | -820.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.02 | 182.34 | 5.16 | 209.32 | 0.1789 | 739.0 | 504.8 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -15.19 | 181.77 | 4.59 | 203.78 | 0.1923 | -1011.0 | -803.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -13.57 | 181.67 | 4.49 | 207.34 | 0.1666 | 751.0 | 516.9 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -13.75 | 181.64 | 4.47 | 206.69 | 0.1692 | 826.0 | 611.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.84 | 181.31 | 4.13 | 220.65 | 0.1095 | -818.0 | -617.5 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -14.82 | 181.35 | 4.17 | 202.62 | 0.1838 | -867.0 | -706.9 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -11.23 | 180.80 | 3.63 | 210.14 | 0.1241 | -941.0 | -744.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -16.27 | 180.34 | 3.16 | 195.31 | 0.2016 | 874.0 | 675.0 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -25.39 | 179.83 | 2.65 | 186.87 | 0.3506 | -804.0 | -642.7 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -18.09 | 177.99 | 0.82 | 183.45 | 0.2260 | 1061.0 | 901.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
