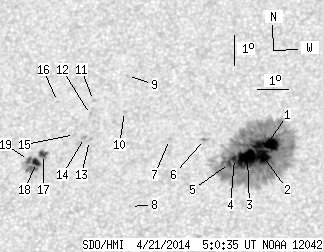

SDO HMI 2014-04-21 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.74 | 436.48 | 43.16 | 238.89 | 17.84 | 166.84 | -10.34 | 23.59 | 0.4271 | -695.9 | -328.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.79 | 393.31 | 13.00 | 214.68 | 18.10 | 167.79 | -9.39 | 21.53 | 0.4242 | -1180.2 | -415.3 | |
| 13.31 | -1.00 | 7.26 | -1.00 | 17.71 | 167.72 | -9.46 | 22.05 | 0.4189 | -1511.3 | 999999 | |
| 25.56 | -1.00 | 13.95 | -1.00 | 17.65 | 167.21 | -9.97 | 23.17 | 0.4212 | -1356.7 | 999999 | |
| 3.20 | -1.00 | 1.75 | -1.00 | 17.66 | 166.79 | -10.39 | 24.02 | 0.4240 | -943.6 | 999999 | |
| 2.31 | -1.00 | 1.26 | -1.00 | 17.50 | 166.64 | -10.54 | 24.50 | 0.4226 | -1003.0 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.32 | 18.30 | 165.78 | -11.40 | 25.38 | 0.4397 | -752.0 | -562.9 | |
| 0.00 | 1.33 | 0.00 | 0.74 | 18.32 | 164.64 | -12.54 | 27.51 | 0.4480 | -572.0 | -500.2 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 16.16 | 163.53 | -13.65 | 32.16 | 0.4275 | 642.0 | 500.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 20.48 | 163.08 | -14.09 | 27.98 | 0.4882 | 681.0 | 528.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 19.28 | 163.09 | -14.09 | 29.24 | 0.4723 | 789.0 | 608.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 19.67 | 162.03 | -15.15 | 30.58 | 0.4855 | 612.0 | 440.5 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 19.21 | 161.98 | -15.20 | 31.20 | 0.4800 | 793.0 | 679.9 | |
| 0.00 | 2.49 | 0.00 | 1.39 | 18.35 | 162.02 | -15.16 | 32.12 | 0.4686 | 712.0 | 669.9 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 18.45 | 161.85 | -15.33 | 32.29 | 0.4713 | 886.0 | 723.4 | |
| 0.00 | 1.60 | 0.00 | 0.90 | 18.56 | 161.51 | -15.67 | 32.73 | 0.4755 | 665.0 | 507.4 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 19.67 | 160.84 | -16.34 | 32.51 | 0.4950 | 518.0 | 438.8 | |
| 3.91 | 27.61 | 2.20 | 15.52 | 17.93 | 160.54 | -16.63 | 35.07 | 0.4759 | 892.5 | 686.0 | |
| 4.53 | -17.00 | 2.54 | -17.00 | 17.68 | 160.34 | -16.84 | 35.73 | 0.4746 | 1078.3 | 999999 | |
| 2.13 | -17.00 | 1.20 | -17.00 | 17.75 | 160.07 | -17.11 | 36.07 | 0.4779 | 656.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
