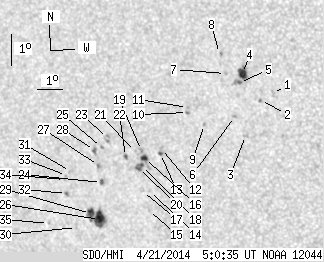

SDO HMI 2014-04-21 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.69 | 91.17 | 20.35 | 58.08 | -20.20 | 140.31 | -36.87 | 116.19 | 0.6290 | 36.3 | 146.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 05:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.22 | 0.00 | 1.32 | -18.38 | 145.80 | -31.38 | 116.09 | 0.5523 | 825.0 | 749.0 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -18.58 | 145.31 | -31.87 | 116.14 | 0.5596 | 694.0 | 709.4 | |
| 0.00 | 2.31 | 0.00 | 1.39 | -19.63 | 144.51 | -32.67 | 117.45 | 0.5750 | 669.0 | 548.5 | |
| 6.04 | 9.14 | 3.61 | 5.47 | -17.72 | 144.82 | -32.36 | 114.41 | 0.5621 | 1039.6 | 785.9 | |
| 0.62 | 3.82 | 0.37 | 2.29 | -17.99 | 144.65 | -32.53 | 114.78 | 0.5655 | 858.6 | 595.8 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -19.03 | 144.23 | -32.95 | 116.29 | 0.5757 | 839.0 | 739.6 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -17.69 | 144.18 | -33.00 | 114.04 | 0.5703 | 683.0 | 442.9 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -17.06 | 144.08 | -33.09 | 112.94 | 0.5690 | 659.0 | 703.7 | |
| 0.00 | 1.07 | 0.00 | 0.65 | -19.22 | 143.04 | -34.14 | 115.98 | 0.5918 | -760.0 | -652.7 | |
| 0.00 | 1.51 | 0.00 | 0.93 | -18.82 | 142.47 | -34.70 | 115.06 | 0.5971 | -660.0 | -611.6 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -18.66 | 142.51 | -34.67 | 114.83 | 0.5960 | -719.0 | -672.9 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -19.88 | 141.19 | -35.99 | 116.11 | 0.6177 | 143.0 | 200.9 | |
| 0.71 | 1.69 | 0.45 | 1.06 | -20.03 | 141.11 | -36.07 | 116.31 | 0.6194 | 862.1 | 775.8 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -21.19 | 140.34 | -36.84 | 117.70 | 0.6337 | 643.0 | 515.9 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -21.78 | 140.12 | -37.06 | 118.47 | 0.6389 | 686.0 | 542.2 | |
| 2.75 | 13.05 | 1.75 | 8.30 | -20.15 | 140.43 | -36.75 | 116.18 | 0.6281 | 882.7 | 572.0 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -21.17 | 140.06 | -37.12 | 117.55 | 0.6369 | 535.0 | 425.9 | |
| 1.42 | -16.00 | 0.90 | -16.00 | -20.36 | 140.25 | -36.92 | 116.42 | 0.6312 | 679.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.90 | -19.90 | 140.38 | -36.80 | 115.77 | 0.6277 | 977.0 | 726.9 | |
| 1.78 | -16.00 | 1.13 | -16.00 | -20.45 | 140.11 | -37.07 | 116.48 | 0.6333 | 592.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -19.92 | 140.14 | -37.04 | 115.69 | 0.6308 | 453.0 | 389.9 | |
| 0.71 | 2.13 | 0.46 | 1.37 | -20.05 | 139.70 | -37.48 | 115.70 | 0.6367 | 465.6 | 314.9 | |
| 0.00 | 3.64 | 0.00 | 2.34 | -19.46 | 139.13 | -38.05 | 114.56 | 0.6412 | 731.0 | 712.9 | |
| 0.00 | 2.22 | 0.00 | 1.45 | -20.80 | 138.49 | -38.69 | 116.30 | 0.6541 | -876.0 | -771.5 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -19.72 | 138.81 | -38.37 | 114.83 | 0.6461 | 731.0 | 567.2 | |
| 11.89 | 24.05 | 7.86 | 15.91 | -21.95 | 138.04 | -39.14 | 117.77 | 0.6639 | -971.4 | -539.4 | |
| 0.00 | 1.86 | 0.00 | 1.21 | -20.27 | 138.53 | -38.65 | 115.53 | 0.6516 | -902.0 | -673.6 | |
| 0.71 | 3.20 | 0.46 | 2.08 | -19.80 | 138.50 | -38.68 | 114.82 | 0.6501 | 616.5 | 386.1 | |
| 4.53 | -26.00 | 3.00 | -26.00 | -21.74 | 137.73 | -39.45 | 117.34 | 0.6667 | -775.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.60 | -22.15 | 137.00 | -40.18 | 117.60 | 0.6766 | -527.0 | -474.5 | |
| 0.00 | 2.22 | 0.00 | 1.47 | -20.39 | 137.32 | -39.85 | 115.22 | 0.6663 | -812.0 | -578.6 | |
| 0.53 | 1.78 | 0.36 | 1.19 | -21.07 | 136.94 | -40.24 | 116.04 | 0.6732 | -832.0 | -651.5 | |
| 0.00 | 0.98 | 0.00 | 0.65 | -20.51 | 137.12 | -40.06 | 115.31 | 0.6691 | -440.0 | -489.4 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -20.63 | 137.00 | -40.18 | 115.44 | 0.6710 | -651.0 | -617.7 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -21.96 | 135.86 | -41.32 | 116.88 | 0.6888 | -620.0 | -556.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
