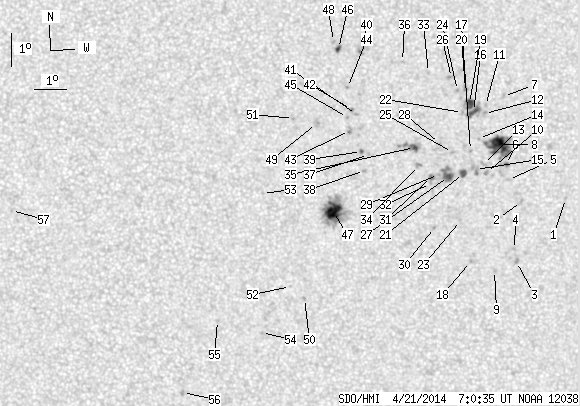

SDO HMI 2014-04-21 07:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.07 | 242.43 | 27.33 | 122.45 | -11.16 | 185.22 | 9.14 | 234.87 | 0.1943 | 469.7 | 361.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 07:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.64 | -12.09 | 189.89 | 13.81 | 241.95 | 0.2656 | 683.0 | 553.1 | |
| 0.00 | 2.57 | 0.00 | 1.32 | -12.21 | 188.50 | 12.42 | 239.09 | 0.2461 | 941.0 | 710.6 | |
| 0.00 | 2.57 | 0.00 | 1.32 | -14.04 | 188.44 | 12.35 | 232.82 | 0.2616 | 911.0 | 763.0 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -13.67 | 188.35 | 12.27 | 233.80 | 0.2570 | 809.0 | 593.3 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -11.55 | 188.06 | 11.98 | 240.66 | 0.2343 | 752.0 | 571.6 | |
| 0.71 | 3.73 | 0.36 | 1.90 | -11.10 | 187.98 | 11.90 | 242.26 | 0.2296 | 1020.9 | 739.3 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -9.04 | 187.81 | 11.73 | 250.61 | 0.2138 | 840.0 | 622.3 | |
| 17.58 | 38.79 | 8.93 | 19.70 | -10.50 | 187.74 | 11.66 | 244.23 | 0.2216 | 1233.4 | 764.3 | |
| 0.00 | 2.13 | 0.00 | 1.09 | -14.32 | 187.75 | 11.67 | 230.40 | 0.2555 | 680.0 | 520.8 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -11.35 | 187.36 | 11.28 | 240.03 | 0.2224 | 968.0 | 767.6 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -9.32 | 187.26 | 11.18 | 248.50 | 0.2066 | 645.0 | 534.1 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -9.57 | 187.24 | 11.16 | 247.36 | 0.2077 | 864.0 | 719.2 | |
| 0.00 | 3.02 | 0.00 | 1.53 | -11.08 | 187.26 | 11.18 | 240.90 | 0.2187 | 888.0 | 692.0 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -10.33 | 187.08 | 10.99 | 243.70 | 0.2102 | 845.0 | 677.3 | |
| 0.00 | 6.04 | 0.00 | 3.06 | -11.26 | 187.02 | 10.93 | 239.63 | 0.2166 | -24.0 | 178.0 | |
| 3.64 | 21.75 | 1.84 | 11.00 | -9.51 | 186.89 | 10.81 | 247.00 | 0.2019 | 1090.1 | 743.5 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -10.69 | 186.84 | 10.76 | 241.63 | 0.2094 | -529.0 | -456.7 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -14.06 | 186.98 | 10.89 | 229.36 | 0.2427 | 775.0 | 607.8 | |
| 5.33 | -16.00 | 2.69 | -16.00 | -9.27 | 186.76 | 10.68 | 247.89 | 0.1983 | 1190.0 | 999999 | |
| 0.00 | 2.66 | 0.00 | 1.34 | -8.82 | 186.63 | 10.54 | 249.83 | 0.1935 | 899.0 | 628.4 | |
| 2.75 | 4.62 | 1.39 | 2.34 | -11.39 | 186.65 | 10.56 | 238.27 | 0.2122 | 1156.1 | 853.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.55 | 186.55 | 10.47 | 246.20 | 0.1968 | 885.0 | 736.8 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -12.82 | 186.61 | 10.52 | 232.67 | 0.2250 | 958.0 | 758.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -8.89 | 186.38 | 10.30 | 249.09 | 0.1899 | 1065.0 | 839.4 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -10.76 | 186.28 | 10.20 | 240.09 | 0.2016 | -448.0 | -256.1 | |
| 0.00 | 2.66 | 0.00 | 1.34 | -8.50 | 186.18 | 10.10 | 250.73 | 0.1846 | 910.0 | 783.1 | |
| 4.08 | 14.03 | 2.07 | 7.10 | -11.49 | 186.18 | 10.10 | 236.74 | 0.2064 | 1066.2 | 907.9 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -10.49 | 185.87 | 9.78 | 240.30 | 0.1933 | -460.0 | -315.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.43 | 185.87 | 9.78 | 236.17 | 0.2014 | 877.0 | 728.3 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -13.04 | 185.80 | 9.72 | 229.69 | 0.2166 | -709.0 | -541.4 | |
| 0.00 | 2.93 | 0.00 | 1.48 | -11.50 | 185.65 | 9.57 | 235.33 | 0.1990 | 1062.0 | 889.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -11.71 | 185.63 | 9.54 | 234.37 | 0.2006 | 532.0 | 449.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -8.35 | 185.47 | 9.39 | 250.23 | 0.1723 | 777.0 | 574.2 | |
| 0.00 | 3.02 | 0.00 | 1.52 | -11.17 | 185.24 | 9.15 | 235.60 | 0.1900 | 787.0 | 689.1 | |
| 2.84 | 13.85 | 1.43 | 6.97 | -10.63 | 185.10 | 9.01 | 237.68 | 0.1830 | -1016.9 | -734.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -8.03 | 184.66 | 8.58 | 250.54 | 0.1574 | 759.0 | 600.1 | |
| 0.00 | 1.07 | 0.00 | 0.53 | -10.85 | 183.68 | 7.59 | 232.09 | 0.1652 | -785.0 | -547.6 | |
| 0.00 | 1.78 | 0.00 | 0.89 | -11.34 | 183.56 | 7.48 | 229.39 | 0.1689 | 868.0 | 664.0 | |
| 0.71 | 1.86 | 0.36 | 0.94 | -10.76 | 183.46 | 7.37 | 231.73 | 0.1613 | -1050.5 | -886.8 | |
| 0.00 | 3.11 | 0.00 | 1.55 | -7.71 | 183.40 | 7.31 | 249.82 | 0.1350 | -915.0 | -892.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.65 | 183.28 | 7.20 | 237.06 | 0.1478 | -973.0 | -720.5 | |
| 0.00 | 1.86 | 0.00 | 0.93 | -9.50 | 183.12 | 7.04 | 237.37 | 0.1442 | -1110.0 | -880.3 | |
| 0.00 | 2.75 | 0.00 | 1.38 | -10.13 | 183.07 | 6.99 | 233.57 | 0.1496 | -962.0 | -869.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -8.83 | 182.99 | 6.90 | 241.01 | 0.1364 | -1035.0 | -782.5 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -9.74 | 183.00 | 6.92 | 235.51 | 0.1447 | -1122.0 | -938.6 | |
| 1.78 | 3.11 | 0.89 | 1.55 | -7.66 | 182.69 | 6.61 | 248.34 | 0.1233 | -1120.5 | -853.3 | |
| 14.65 | 55.30 | 7.37 | 27.81 | -12.59 | 182.63 | 6.55 | 220.36 | 0.1727 | 1367.5 | 574.9 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -7.45 | 182.54 | 6.45 | 249.52 | 0.1195 | -860.0 | -686.9 | |
| 0.00 | 4.88 | 0.00 | 2.44 | -9.93 | 182.05 | 5.97 | 230.41 | 0.1336 | -822.0 | -728.6 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -15.25 | 181.80 | 5.71 | 208.52 | 0.2020 | -966.0 | -727.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.78 | 181.34 | 5.26 | 227.75 | 0.1226 | -1020.0 | -799.7 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -14.89 | 181.35 | 5.27 | 207.50 | 0.1930 | -812.0 | -612.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -12.06 | 180.42 | 4.34 | 211.36 | 0.1429 | -810.0 | -551.8 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -16.30 | 180.47 | 4.39 | 200.67 | 0.2089 | 834.0 | 703.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.94 | 179.08 | 3.00 | 194.96 | 0.1957 | 627.0 | 501.9 | |
| 0.00 | 2.31 | 0.00 | 1.17 | -18.16 | 178.00 | 1.92 | 188.02 | 0.2293 | 967.0 | 829.5 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -12.57 | 172.68 | -3.40 | 156.02 | 0.1432 | -813.0 | -578.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
