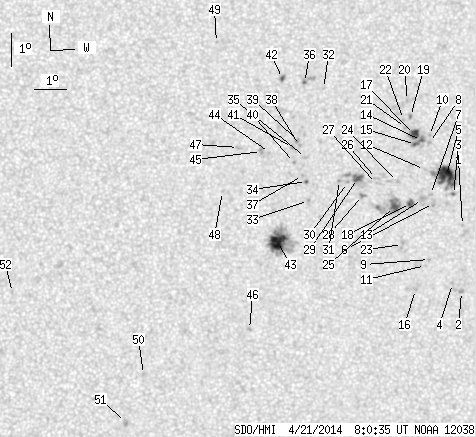

SDO HMI 2014-04-21 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.72 | 232.05 | 30.26 | 117.36 | -11.21 | 185.04 | 9.50 | 235.72 | 0.2000 | 436.2 | 312.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 08:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.54 | -12.02 | 188.39 | 12.85 | 240.57 | 0.2510 | 899.0 | 650.5 | |
| 0.00 | 2.57 | 0.00 | 1.32 | -14.02 | 188.46 | 12.93 | 234.04 | 0.2693 | 781.0 | 716.4 | |
| 0.44 | 1.60 | 0.23 | 0.81 | -11.08 | 188.06 | 12.53 | 243.43 | 0.2391 | 925.6 | 765.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -13.79 | 188.16 | 12.63 | 234.18 | 0.2630 | 822.0 | 661.6 | |
| 22.10 | 38.44 | 11.25 | 19.57 | -10.51 | 187.82 | 12.29 | 245.25 | 0.2314 | 1177.3 | 692.6 | |
| 0.00 | 3.20 | 0.00 | 1.63 | -11.37 | 187.45 | 11.91 | 241.21 | 0.2319 | 746.0 | 711.0 | |
| 0.00 | 1.78 | 0.00 | 0.90 | -11.10 | 187.34 | 11.81 | 242.07 | 0.2283 | 886.0 | 709.8 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -9.52 | 187.25 | 11.72 | 248.45 | 0.2163 | 946.0 | 766.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -13.07 | 187.40 | 11.86 | 234.92 | 0.2458 | 858.0 | 638.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -9.31 | 187.25 | 11.71 | 249.36 | 0.2150 | 727.0 | 612.8 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -13.25 | 187.28 | 11.74 | 234.03 | 0.2459 | 723.0 | 552.4 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -10.34 | 187.13 | 11.59 | 244.73 | 0.2195 | 796.0 | 664.7 | |
| 0.00 | 4.44 | 0.00 | 2.26 | -11.25 | 187.10 | 11.56 | 240.98 | 0.2258 | -46.0 | 149.5 | |
| 1.33 | 18.11 | 0.67 | 9.17 | -9.47 | 187.00 | 11.47 | 248.30 | 0.2120 | 1113.7 | 806.5 | |
| 1.15 | -14.00 | 0.58 | -14.00 | -9.59 | 186.82 | 11.28 | 247.44 | 0.2099 | 1058.5 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -13.99 | 187.00 | 11.46 | 230.96 | 0.2494 | 808.0 | 655.9 | |
| 5.68 | -14.00 | 2.88 | -14.00 | -9.29 | 186.78 | 11.24 | 248.73 | 0.2074 | 1185.0 | 999999 | |
| 2.75 | 4.44 | 1.40 | 2.25 | -11.38 | 186.73 | 11.19 | 239.70 | 0.2214 | 1077.6 | 800.6 | |
| 0.00 | 2.22 | 0.00 | 1.12 | -8.75 | 186.64 | 11.10 | 251.03 | 0.2022 | 870.0 | 676.4 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -8.27 | 186.53 | 11.00 | 253.19 | 0.1981 | 868.0 | 699.0 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -9.08 | 186.49 | 10.96 | 249.22 | 0.2016 | 935.0 | 752.6 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -8.84 | 186.42 | 10.89 | 250.25 | 0.1992 | 1056.0 | 822.6 | |
| 0.00 | 3.37 | 0.00 | 1.72 | -12.63 | 186.53 | 10.99 | 234.50 | 0.2295 | 870.0 | 648.3 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -10.72 | 186.30 | 10.76 | 241.50 | 0.2097 | -263.0 | -202.6 | |
| 4.08 | 22.72 | 2.07 | 11.52 | -11.48 | 186.23 | 10.69 | 238.20 | 0.2149 | 1083.0 | 811.7 | |
| 0.00 | 2.31 | 0.00 | 1.17 | -10.64 | 185.64 | 10.10 | 240.39 | 0.1992 | -626.0 | -365.2 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -10.79 | 185.64 | 10.11 | 239.73 | 0.2005 | -420.0 | -216.8 | |
| 0.00 | 2.75 | 0.00 | 1.39 | -11.16 | 185.22 | 9.68 | 237.06 | 0.1975 | 1033.0 | 747.2 | |
| 3.82 | 13.67 | 1.93 | 6.90 | -10.65 | 185.05 | 9.51 | 238.90 | 0.1905 | -1003.9 | -607.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -10.77 | 184.74 | 9.20 | 237.51 | 0.1872 | -710.0 | -570.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -10.71 | 184.49 | 8.95 | 237.08 | 0.1830 | -867.0 | -662.6 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -7.94 | 183.93 | 8.39 | 250.70 | 0.1539 | -775.0 | -624.5 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.33 | 183.55 | 8.01 | 231.29 | 0.1759 | 976.0 | 798.2 | |
| 0.53 | 1.60 | 0.27 | 0.80 | -10.76 | 183.47 | 7.93 | 233.72 | 0.1690 | -1034.5 | -856.2 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -10.03 | 183.42 | 7.88 | 237.24 | 0.1614 | -850.0 | -618.0 | |
| 0.36 | 6.12 | 0.18 | 3.07 | -7.77 | 183.34 | 7.81 | 250.57 | 0.1434 | -1037.0 | -828.7 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -10.58 | 183.34 | 7.80 | 234.18 | 0.1654 | -969.0 | -733.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.67 | 183.23 | 7.69 | 238.58 | 0.1553 | -927.0 | -739.7 | |
| 0.00 | 1.78 | 0.00 | 0.89 | -9.52 | 183.16 | 7.63 | 239.22 | 0.1530 | -1077.0 | -899.5 | |
| 0.00 | 1.07 | 0.00 | 0.53 | -10.18 | 183.08 | 7.55 | 235.30 | 0.1580 | -1119.0 | -952.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.73 | 183.01 | 7.48 | 237.52 | 0.1527 | -1112.0 | -898.1 | |
| 1.15 | 2.66 | 0.58 | 1.33 | -7.65 | 182.67 | 7.13 | 249.76 | 0.1317 | -1202.2 | -909.9 | |
| 16.33 | 55.30 | 8.22 | 27.85 | -12.58 | 182.62 | 7.08 | 222.55 | 0.1787 | 1331.9 | 534.9 | |
| 0.00 | 0.89 | 0.00 | 0.44 | -9.89 | 182.31 | 6.77 | 234.05 | 0.1442 | -788.0 | -609.1 | |
| 0.00 | 2.40 | 0.00 | 1.20 | -9.86 | 182.06 | 6.52 | 233.21 | 0.1404 | -876.0 | -858.2 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -15.27 | 181.82 | 6.28 | 210.76 | 0.2073 | -900.0 | -714.8 | |
| 0.00 | 2.49 | 0.00 | 1.24 | -9.75 | 181.35 | 5.82 | 230.75 | 0.1296 | -801.0 | -701.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.08 | 180.88 | 5.35 | 221.12 | 0.1397 | -883.0 | -699.7 | |
| 0.00 | 1.07 | 0.00 | 0.53 | -6.58 | 180.64 | 5.10 | 253.37 | 0.0927 | 795.0 | 618.8 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -16.67 | 178.52 | 2.98 | 193.92 | 0.2079 | 828.0 | 546.7 | |
| 0.00 | 3.28 | 0.00 | 1.67 | -18.16 | 177.97 | 2.43 | 190.10 | 0.2307 | 854.0 | 765.3 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -14.16 | 174.41 | -1.12 | 173.12 | 0.1596 | -795.0 | -576.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
