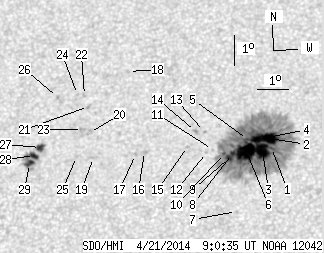

SDO HMI 2014-04-21 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.61 | 439.56 | 43.88 | 239.10 | 17.83 | 166.77 | -8.22 | 19.19 | 0.4143 | -622.2 | -311.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 09:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 390.65 | 0.14 | 211.99 | 17.80 | 167.95 | -7.04 | 16.74 | 0.4071 | -1101.0 | -399.6 | |
| 14.29 | -1.00 | 7.76 | -1.00 | 18.09 | 167.87 | -7.12 | 16.69 | 0.4119 | -1194.8 | 999999 | |
| 15.53 | -1.00 | 8.42 | -1.00 | 17.70 | 167.66 | -7.33 | 17.44 | 0.4070 | -1467.4 | 999999 | |
| 8.17 | -1.00 | 4.44 | -1.00 | 18.06 | 167.46 | -7.53 | 17.62 | 0.4135 | -1111.9 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 18.07 | 167.17 | -7.82 | 18.24 | 0.4149 | -805.3 | 999999 | |
| 23.88 | -1.00 | 12.95 | -1.00 | 17.68 | 167.15 | -7.83 | 18.59 | 0.4091 | -1384.4 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.73 | 166.92 | -8.07 | 20.87 | 0.3811 | -691.0 | -439.0 | |
| 2.22 | -1.00 | 1.20 | -1.00 | 17.62 | 166.71 | -8.28 | 19.62 | 0.4105 | -964.9 | 999999 | |
| 3.46 | -1.00 | 1.88 | -1.00 | 17.49 | 166.62 | -8.37 | 19.93 | 0.4091 | -1044.8 | 999999 | |
| 0.89 | -1.00 | 0.48 | -1.00 | 17.62 | 166.45 | -8.54 | 20.17 | 0.4120 | -729.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 17.76 | 166.06 | -8.93 | 20.89 | 0.4162 | -541.0 | -409.2 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 17.66 | 165.88 | -9.11 | 21.37 | 0.4158 | -154.0 | -165.6 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 18.35 | 165.78 | -9.21 | 20.96 | 0.4266 | -675.0 | -487.6 | |
| 0.00 | 1.95 | 0.00 | 1.07 | 18.36 | 165.49 | -9.50 | 21.56 | 0.4283 | -841.0 | -701.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 17.87 | 165.26 | -9.73 | 22.48 | 0.4225 | -727.0 | -538.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 17.73 | 163.88 | -11.11 | 25.42 | 0.4294 | 822.0 | 679.1 | |
| 0.00 | 1.60 | 0.00 | 0.88 | 17.64 | 163.60 | -11.39 | 26.08 | 0.4300 | 922.0 | 754.7 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 20.39 | 163.18 | -11.81 | 24.14 | 0.4713 | 663.0 | 455.8 | |
| 0.00 | 2.57 | 0.00 | 1.42 | 17.57 | 162.24 | -12.75 | 28.77 | 0.4389 | 649.0 | 399.1 | |
| 0.00 | 3.55 | 0.00 | 1.97 | 18.39 | 162.05 | -12.94 | 28.20 | 0.4515 | 640.0 | 580.4 | |
| 0.00 | 1.78 | 0.00 | 0.99 | 19.25 | 161.95 | -13.04 | 27.45 | 0.4638 | 875.0 | 696.8 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 19.62 | 161.79 | -13.20 | 27.35 | 0.4700 | 763.0 | 571.3 | |
| 0.00 | 2.66 | 0.00 | 1.48 | 18.49 | 161.82 | -13.17 | 28.51 | 0.4546 | 789.0 | 711.0 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 19.66 | 161.56 | -13.43 | 27.72 | 0.4722 | 692.0 | 508.2 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 17.61 | 161.69 | -13.30 | 29.75 | 0.4437 | 694.0 | 495.4 | |
| 0.00 | 1.33 | 0.00 | 0.75 | 19.57 | 160.91 | -14.08 | 28.94 | 0.4758 | 786.0 | 602.7 | |
| 3.55 | 5.24 | 1.98 | 2.91 | 17.93 | 160.49 | -14.50 | 31.52 | 0.4575 | 918.0 | 673.4 | |
| 3.82 | 17.31 | 2.12 | 9.62 | 17.68 | 160.31 | -14.68 | 32.14 | 0.4556 | 1034.8 | 742.6 | |
| 4.26 | -28.00 | 2.37 | -28.00 | 17.42 | 160.17 | -14.82 | 32.71 | 0.4535 | 1031.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
