SDO HMI 2014-04-21 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.78 | 0.00 | 5.29 | 15.25 | 186.00 | 11.56 | 332.23 | 0.4032 | 141.1 | -11.4 | |
|
previous
or next observation for the same group /

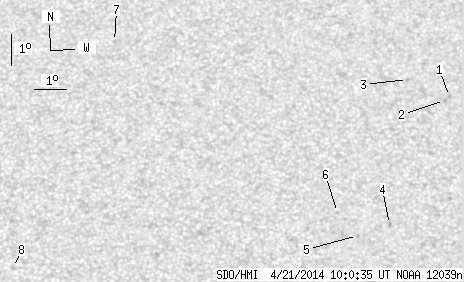

back to the solar disc SDO HMI 2014-04-21 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.69 | 17.32 | 190.50 | 16.06 | 325.05 | 0.4628 | -815.0 | -647.1 | |
| 0.00 | 1.51 | 0.00 | 0.84 | 17.18 | 190.32 | 15.88 | 325.17 | 0.4595 | -791.0 | -745.5 | |
| 0.00 | 1.42 | 0.00 | 0.79 | 17.84 | 189.17 | 14.73 | 327.97 | 0.4581 | -778.0 | -608.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 13.15 | 188.25 | 13.81 | 323.18 | 0.3894 | 773.0 | 656.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 12.78 | 187.21 | 12.77 | 324.72 | 0.3748 | 695.0 | 606.5 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 13.50 | 186.61 | 12.17 | 327.09 | 0.3790 | 611.0 | 435.4 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 18.95 | 179.77 | 5.33 | 347.81 | 0.4180 | 680.0 | 496.4 | |
| 0.00 | 1.78 | 0.00 | 0.92 | 11.66 | 176.47 | 2.03 | 353.14 | 0.2914 | 754.0 | 383.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
