SDO HMI 2014-04-21 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.19 | 81.41 | 20.40 | 74.57 | -23.22 | 117.83 | -56.61 | 114.40 | 0.8445 | 567.8 | 340.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 10:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

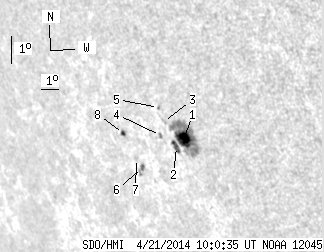

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.36 | 66.57 | 13.92 | 60.25 | -23.19 | 118.39 | -56.05 | 114.45 | 0.8397 | 810.7 | 389.1 | |
| 3.99 | -1.00 | 3.68 | -1.00 | -23.38 | 117.85 | -56.59 | 114.58 | 0.8446 | 419.0 | 999999 | |
| 0.00 | 1.69 | 0.00 | 1.55 | -22.55 | 117.61 | -56.83 | 113.57 | 0.8455 | 417.0 | 358.1 | |
| 0.00 | 2.22 | 0.00 | 2.07 | -22.97 | 117.16 | -57.29 | 113.98 | 0.8499 | 369.0 | 235.0 | |
| 0.00 | 1.07 | 0.00 | 0.98 | -22.10 | 117.60 | -56.84 | 113.04 | 0.8450 | 504.0 | 461.1 | |
| 1.24 | 4.97 | 1.22 | 4.90 | -23.88 | 115.39 | -59.05 | 114.75 | 0.8656 | 526.4 | 313.9 | |
| 0.00 | 1.69 | 0.00 | 1.66 | -23.57 | 115.23 | -59.22 | 114.38 | 0.8665 | -177.0 | -135.4 | |
| 1.60 | 3.20 | 1.58 | 3.16 | -22.75 | 114.99 | -59.46 | 113.39 | 0.8674 | -461.3 | -361.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
