SDO HMI 2014-04-21 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.90 | 511.88 | 72.51 | 405.14 | -14.21 | 224.93 | 51.04 | 255.65 | 0.7793 | 381.4 | 223.1 | |
|
previous
or next observation for the same group /

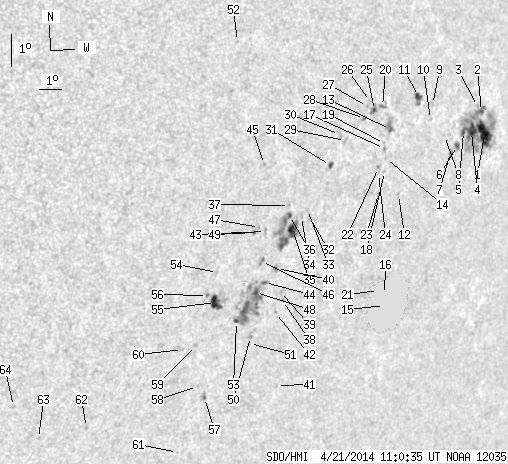

back to the solar disc SDO HMI 2014-04-21 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.59 | 110.85 | 18.03 | 96.28 | -10.80 | 229.77 | 55.88 | 260.37 | 0.8269 | 592.3 | 297.7 | |
| 1.69 | -1.00 | 1.46 | -1.00 | -10.16 | 229.43 | 55.54 | 261.15 | 0.8235 | 596.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -10.02 | 229.18 | 55.28 | 261.31 | 0.8210 | 522.0 | 479.9 | |
| 10.03 | -1.00 | 8.63 | -1.00 | -10.79 | 229.06 | 55.16 | 260.37 | 0.8200 | 828.9 | 999999 | |
| 2.31 | -1.00 | 1.97 | -1.00 | -10.82 | 228.64 | 54.74 | 260.32 | 0.8158 | 835.0 | 999999 | |
| 1.69 | 4.35 | 1.43 | 3.69 | -11.27 | 228.44 | 54.54 | 259.77 | 0.8140 | 733.6 | 539.2 | |
| 0.00 | 2.49 | 0.00 | 2.09 | -11.50 | 228.13 | 54.24 | 259.46 | 0.8110 | 681.0 | 590.3 | |
| 0.00 | 0.53 | 0.00 | 0.44 | -11.01 | 227.68 | 53.79 | 260.05 | 0.8063 | 639.0 | 565.2 | |
| 0.00 | 1.95 | 0.00 | 1.59 | -10.13 | 226.84 | 52.95 | 261.13 | 0.7974 | 248.0 | 217.9 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -10.58 | 226.85 | 52.95 | 260.56 | 0.7976 | 551.0 | 532.0 | |
| 3.28 | 8.08 | 2.64 | 6.49 | -9.93 | 226.09 | 52.19 | 261.35 | 0.7894 | -598.5 | -464.7 | |
| 0.00 | 1.15 | 0.00 | 0.92 | -12.94 | 225.86 | 51.97 | 257.52 | 0.7885 | -383.0 | -300.9 | |
| 1.33 | 10.21 | 1.04 | 8.00 | -11.02 | 224.95 | 51.05 | 259.92 | 0.7777 | -702.0 | -304.9 | |
| 0.00 | 1.24 | 0.00 | 0.98 | -11.90 | 224.92 | 51.03 | 258.77 | 0.7779 | 229.0 | 213.5 | |
| 14.20 | 167.47 | 11.56 | 136.76 | -16.34 | 226.29 | 52.39 | 253.28 | 0.7960 | 1004.6 | 201.4 | |
| 2.22 | -15.00 | 1.80 | -15.00 | -16.01 | 226.16 | 52.27 | 253.68 | 0.7944 | 770.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.04 | -11.61 | 224.80 | 50.91 | 259.15 | 0.7763 | -452.0 | -402.1 | |
| 0.00 | 0.80 | 0.00 | 0.63 | -12.30 | 224.98 | 51.09 | 258.27 | 0.7787 | 455.0 | 373.7 | |
| 0.00 | 1.33 | 0.00 | 1.04 | -11.46 | 224.76 | 50.87 | 259.34 | 0.7759 | -528.0 | -446.7 | |
| 0.53 | 3.11 | 0.41 | 2.41 | -10.35 | 224.41 | 50.51 | 260.75 | 0.7715 | 698.3 | 474.8 | |
| 4.62 | -15.00 | 3.72 | -15.00 | -15.91 | 225.82 | 51.92 | 253.76 | 0.7908 | 1062.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.83 | -12.20 | 224.66 | 50.76 | 258.38 | 0.7752 | 669.0 | 593.1 | |
| 0.00 | 1.33 | 0.00 | 1.05 | -12.98 | 224.87 | 50.98 | 257.39 | 0.7780 | 449.0 | 355.4 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -12.38 | 224.71 | 50.81 | 258.15 | 0.7758 | 501.0 | 391.1 | |
| 1.33 | 5.50 | 1.02 | 4.23 | -10.50 | 224.05 | 50.16 | 260.55 | 0.7676 | 621.7 | 564.0 | |
| 0.00 | 1.69 | 0.00 | 1.29 | -10.24 | 223.80 | 49.91 | 260.87 | 0.7648 | 445.0 | 375.5 | |
| 0.00 | 0.98 | 0.00 | 0.75 | -10.40 | 223.69 | 49.80 | 260.66 | 0.7636 | 745.0 | 621.3 | |
| 0.53 | 1.78 | 0.41 | 1.35 | -10.77 | 223.63 | 49.74 | 260.17 | 0.7631 | 595.5 | 465.7 | |
| 0.00 | 3.37 | 0.00 | 2.54 | -11.49 | 222.90 | 49.00 | 259.17 | 0.7553 | 210.0 | 290.1 | |
| 0.00 | 3.37 | 0.00 | 2.52 | -11.33 | 222.58 | 48.68 | 259.36 | 0.7516 | 407.0 | 448.2 | |
| 1.42 | 3.11 | 1.06 | 2.32 | -12.29 | 222.38 | 48.49 | 258.07 | 0.7501 | -330.9 | -245.2 | |
| 0.00 | 1.78 | 0.00 | 1.32 | -13.94 | 221.88 | 47.99 | 255.80 | 0.7462 | 390.0 | 347.2 | |
| 0.00 | 1.33 | 0.00 | 0.98 | -13.68 | 221.67 | 47.78 | 256.12 | 0.7435 | 623.0 | 503.5 | |
| 0.00 | 1.78 | 0.00 | 1.31 | -13.91 | 221.45 | 47.56 | 255.79 | 0.7413 | 441.0 | 462.6 | |
| 8.96 | 45.17 | 6.56 | 32.91 | -14.33 | 221.15 | 47.26 | 255.18 | 0.7384 | 722.6 | 503.1 | |
| 1.42 | -35.00 | 1.03 | -35.00 | -13.91 | 220.90 | 47.01 | 255.71 | 0.7350 | 875.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -13.61 | 220.83 | 46.93 | 256.11 | 0.7337 | 657.0 | 499.6 | |
| 0.00 | 1.15 | 0.00 | 0.85 | -16.51 | 221.34 | 47.45 | 252.28 | 0.7438 | 645.0 | 542.0 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -16.24 | 221.16 | 47.27 | 252.61 | 0.7413 | 615.0 | 644.7 | |
| 0.44 | 2.84 | 0.32 | 2.07 | -15.55 | 220.77 | 46.88 | 253.46 | 0.7358 | 773.6 | 606.6 | |
| 0.00 | 0.98 | 0.00 | 0.74 | -19.12 | 221.98 | 48.09 | 248.96 | 0.7556 | 398.0 | 383.7 | |
| 0.00 | 0.98 | 0.00 | 0.72 | -16.89 | 221.14 | 47.25 | 251.73 | 0.7422 | 562.0 | 538.0 | |
| 0.00 | 1.78 | 0.00 | 1.27 | -14.46 | 219.96 | 46.07 | 254.81 | 0.7249 | -527.0 | -428.0 | |
| 0.80 | 69.67 | 0.58 | 50.14 | -16.01 | 220.36 | 46.46 | 252.77 | 0.7319 | 797.1 | 273.0 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -12.44 | 219.42 | 45.53 | 257.54 | 0.7160 | 668.0 | 539.1 | |
| 0.00 | 2.75 | 0.00 | 1.98 | -15.38 | 220.04 | 46.14 | 253.56 | 0.7272 | -586.0 | -513.6 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -14.36 | 219.66 | 45.77 | 254.91 | 0.7213 | -596.0 | -441.9 | |
| 1.60 | -44.00 | 1.15 | -44.00 | -16.34 | 220.05 | 46.15 | 252.26 | 0.7289 | 580.7 | 999999 | |
| 0.53 | 1.60 | 0.38 | 1.14 | -14.52 | 219.48 | 45.59 | 254.65 | 0.7194 | -633.8 | -586.8 | |
| 0.00 | 2.31 | 0.00 | 1.68 | -17.70 | 220.25 | 46.36 | 250.47 | 0.7338 | 742.0 | 571.7 | |
| 0.00 | 1.42 | 0.00 | 1.03 | -17.91 | 220.28 | 46.38 | 250.18 | 0.7346 | 449.0 | 404.4 | |
| 0.00 | 1.07 | 0.00 | 0.73 | -8.81 | 217.58 | 43.69 | 262.55 | 0.6907 | 466.0 | 411.2 | |
| 1.15 | -44.00 | 0.83 | -44.00 | -17.28 | 219.47 | 45.58 | 250.86 | 0.7242 | -557.5 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -15.83 | 218.20 | 44.31 | 252.58 | 0.7066 | -458.0 | -443.9 | |
| 8.70 | 17.04 | 6.10 | 11.97 | -16.75 | 218.37 | 44.48 | 251.34 | 0.7105 | -766.2 | -315.9 | |
| 0.00 | 1.51 | 0.00 | 1.05 | -16.56 | 217.97 | 44.07 | 251.51 | 0.7053 | -753.0 | -672.2 | |
| 0.53 | 3.28 | 0.38 | 2.34 | -19.69 | 218.84 | 44.94 | 247.42 | 0.7227 | -539.5 | -450.2 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -19.37 | 218.41 | 44.52 | 247.73 | 0.7170 | -453.0 | -443.8 | |
| 0.00 | 1.69 | 0.00 | 1.18 | -18.12 | 217.91 | 44.01 | 249.32 | 0.7082 | -489.0 | -408.2 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -18.27 | 217.38 | 43.49 | 248.96 | 0.7025 | -508.0 | -461.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -21.46 | 218.27 | 44.38 | 244.85 | 0.7213 | -346.0 | -385.7 | |
| 0.00 | 1.07 | 0.00 | 0.71 | -20.91 | 214.09 | 40.19 | 244.13 | 0.6723 | -755.0 | -632.4 | |
| 0.00 | 1.07 | 0.00 | 0.69 | -21.35 | 212.22 | 38.32 | 242.71 | 0.6522 | -501.0 | -484.0 | |
| 0.00 | 1.95 | 0.00 | 1.25 | -20.41 | 210.92 | 37.03 | 243.52 | 0.6328 | -52.0 | -156.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
