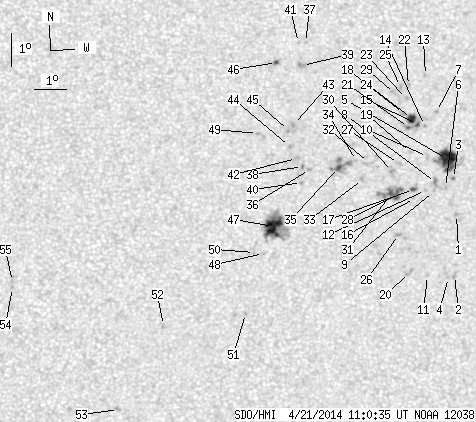

SDO HMI 2014-04-21 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.05 | 230.66 | 31.61 | 117.33 | -11.22 | 185.27 | 11.38 | 239.96 | 0.2269 | 536.8 | 278.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 11:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.78 | -12.12 | 188.41 | 14.51 | 242.89 | 0.2764 | 892.0 | 714.2 | |
| 0.00 | 3.46 | 0.00 | 1.79 | -13.98 | 188.45 | 14.56 | 237.15 | 0.2916 | 820.0 | 655.2 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -11.04 | 188.25 | 14.36 | 246.37 | 0.2669 | 948.0 | 774.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -14.04 | 188.26 | 14.37 | 236.63 | 0.2895 | 650.0 | 590.8 | |
| 23.43 | 37.45 | 12.02 | 19.21 | -10.46 | 188.04 | 14.14 | 248.12 | 0.2601 | 1152.3 | 537.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -11.31 | 188.01 | 14.12 | 245.06 | 0.2650 | 738.0 | 590.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -9.02 | 187.63 | 13.74 | 253.10 | 0.2462 | 824.0 | 678.6 | |
| 0.00 | 4.26 | 0.00 | 2.18 | -11.17 | 187.69 | 13.80 | 245.10 | 0.2591 | 1054.0 | 832.3 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -11.44 | 187.64 | 13.75 | 244.05 | 0.2602 | 798.0 | 644.2 | |
| 0.00 | 2.93 | 0.00 | 1.50 | -10.39 | 187.40 | 13.51 | 247.56 | 0.2497 | 703.0 | 435.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -14.00 | 187.59 | 13.69 | 235.57 | 0.2797 | 776.0 | 587.7 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -11.42 | 187.39 | 13.49 | 243.75 | 0.2561 | 841.0 | 719.5 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -7.94 | 187.25 | 13.35 | 257.11 | 0.2357 | 757.0 | 620.8 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -9.45 | 187.27 | 13.38 | 250.99 | 0.2425 | 796.0 | 744.3 | |
| 1.07 | 15.35 | 0.54 | 7.82 | -9.42 | 187.05 | 13.16 | 250.82 | 0.2388 | 968.2 | 796.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -11.66 | 187.05 | 13.16 | 242.31 | 0.2529 | 698.0 | 560.6 | |
| 1.24 | 3.82 | 0.64 | 1.95 | -11.39 | 187.01 | 13.11 | 243.22 | 0.2502 | 955.9 | 737.0 | |
| 5.41 | -15.00 | 2.76 | -15.00 | -9.25 | 186.86 | 12.96 | 251.30 | 0.2348 | 1157.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -10.27 | 186.86 | 12.97 | 247.21 | 0.2406 | 621.0 | 480.6 | |
| 0.00 | 4.17 | 0.00 | 2.15 | -13.92 | 187.01 | 13.11 | 234.71 | 0.2710 | 623.0 | 642.0 | |
| 0.53 | -15.00 | 0.27 | -15.00 | -9.52 | 186.77 | 12.88 | 250.08 | 0.2348 | 1036.0 | 999999 | |
| 0.00 | 2.49 | 0.00 | 1.26 | -8.25 | 186.73 | 12.83 | 255.32 | 0.2283 | 622.0 | 572.4 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -8.65 | 186.68 | 12.78 | 253.59 | 0.2291 | 681.0 | 526.1 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -9.10 | 186.60 | 12.71 | 251.59 | 0.2299 | 958.0 | 796.4 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -8.29 | 186.48 | 12.58 | 254.92 | 0.2243 | 766.0 | 623.5 | |
| 0.00 | 2.31 | 0.00 | 1.18 | -12.77 | 186.60 | 12.70 | 237.64 | 0.2550 | 952.0 | 834.2 | |
| 0.00 | 2.84 | 0.00 | 1.45 | -10.61 | 186.50 | 12.61 | 245.32 | 0.2371 | 326.0 | 163.3 | |
| 3.91 | 21.74 | 1.99 | 11.09 | -11.55 | 186.51 | 12.61 | 241.77 | 0.2439 | 995.7 | 838.2 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -8.50 | 186.30 | 12.40 | 253.79 | 0.2223 | 836.0 | 654.0 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -10.86 | 186.32 | 12.43 | 244.07 | 0.2361 | 845.0 | 625.5 | |
| 3.11 | -28.00 | 1.59 | -28.00 | -11.53 | 186.32 | 12.42 | 241.53 | 0.2409 | 1090.6 | 999999 | |
| 0.00 | 4.08 | 0.00 | 2.07 | -10.60 | 185.56 | 11.67 | 243.75 | 0.2226 | -305.0 | -348.4 | |
| 0.00 | 2.49 | 0.00 | 1.26 | -11.12 | 185.39 | 11.50 | 241.33 | 0.2239 | -429.0 | -134.5 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -10.55 | 185.18 | 11.29 | 243.26 | 0.2165 | -828.0 | -657.7 | |
| 2.13 | 16.86 | 1.08 | 8.54 | -10.77 | 184.63 | 10.73 | 241.19 | 0.2098 | -1002.1 | -734.8 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -10.84 | 183.73 | 9.83 | 238.78 | 0.1970 | -839.0 | -621.3 | |
| 0.00 | 1.07 | 0.00 | 0.54 | -7.01 | 183.50 | 9.61 | 258.10 | 0.1701 | -784.0 | -647.6 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -10.75 | 183.51 | 9.61 | 238.61 | 0.1930 | -964.0 | -770.2 | |
| 0.00 | 4.35 | 0.00 | 2.19 | -7.70 | 183.43 | 9.53 | 254.02 | 0.1715 | -1083.0 | -922.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -11.24 | 183.49 | 9.60 | 236.43 | 0.1971 | 749.0 | 615.1 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -7.01 | 183.29 | 9.39 | 257.84 | 0.1665 | -751.0 | -583.5 | |
| 0.00 | 2.49 | 0.00 | 1.25 | -10.51 | 183.31 | 9.42 | 239.21 | 0.1881 | -953.0 | -753.9 | |
| 0.00 | 1.95 | 0.00 | 0.98 | -9.49 | 183.19 | 9.30 | 243.92 | 0.1782 | -934.0 | -707.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.15 | 183.08 | 9.19 | 240.33 | 0.1818 | -943.0 | -760.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.67 | 183.04 | 9.15 | 242.62 | 0.1773 | -971.0 | -786.4 | |
| 0.98 | 2.13 | 0.49 | 1.07 | -7.62 | 182.62 | 8.73 | 253.21 | 0.1579 | -1063.8 | -869.7 | |
| 20.24 | 51.65 | 10.23 | 26.11 | -12.58 | 182.66 | 8.77 | 228.50 | 0.1995 | 1229.0 | 519.8 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -13.41 | 182.38 | 8.48 | 224.54 | 0.2055 | 800.0 | 478.2 | |
| 0.00 | 1.24 | 0.00 | 0.62 | -9.77 | 182.09 | 8.19 | 239.50 | 0.1637 | -953.0 | -836.9 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -13.38 | 182.09 | 8.20 | 223.69 | 0.2018 | 750.0 | 534.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -15.24 | 181.88 | 7.98 | 217.08 | 0.2233 | -974.0 | -776.6 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -15.63 | 179.31 | 5.41 | 206.34 | 0.2058 | 701.0 | 600.9 | |
| 0.00 | 2.22 | 0.00 | 1.13 | -18.23 | 177.95 | 4.06 | 196.44 | 0.2385 | 998.0 | 766.0 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -14.49 | 174.58 | 0.68 | 184.03 | 0.1647 | -864.0 | -635.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -14.30 | 174.58 | 0.68 | 184.11 | 0.1615 | -869.0 | -710.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
