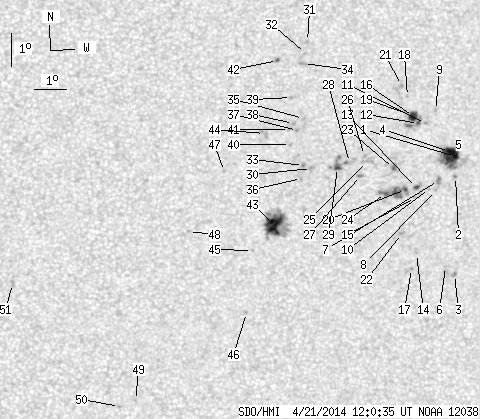

SDO HMI 2014-04-21 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.49 | 213.77 | 27.80 | 108.92 | -11.14 | 185.10 | 11.76 | 240.88 | 0.2318 | 438.2 | 241.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.35 | 39.14 | 2.24 | 20.13 | -10.42 | 188.27 | 14.93 | 249.24 | 0.2722 | 1074.8 | 609.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -11.02 | 188.30 | 14.96 | 247.19 | 0.2761 | 913.0 | 812.4 | |
| 0.00 | 2.40 | 0.00 | 1.24 | -14.00 | 188.45 | 15.10 | 237.98 | 0.2994 | 893.0 | 708.7 | |
| 8.52 | -1.00 | 4.38 | -1.00 | -10.27 | 188.08 | 14.73 | 249.53 | 0.2683 | 1214.2 | 999999 | |
| 6.03 | -1.00 | 3.10 | -1.00 | -10.51 | 188.06 | 14.71 | 248.65 | 0.2693 | 1224.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -13.76 | 188.14 | 14.80 | 238.19 | 0.2932 | 835.0 | 668.4 | |
| 0.00 | 3.55 | 0.00 | 1.82 | -11.15 | 187.77 | 14.43 | 246.04 | 0.2687 | 1092.0 | 868.9 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -11.46 | 187.69 | 14.35 | 244.87 | 0.2694 | 792.0 | 644.9 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -9.04 | 187.58 | 14.24 | 253.52 | 0.2544 | 916.0 | 705.8 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -11.40 | 187.50 | 14.15 | 244.79 | 0.2661 | 826.0 | 647.3 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -9.44 | 187.28 | 13.94 | 251.68 | 0.2514 | 800.0 | 658.7 | |
| 0.98 | 16.15 | 0.50 | 8.25 | -9.44 | 187.06 | 13.72 | 251.42 | 0.2479 | 955.5 | 819.2 | |
| 1.06 | 3.99 | 0.55 | 2.05 | -11.38 | 187.09 | 13.74 | 244.25 | 0.2597 | 1043.6 | 736.3 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -13.38 | 187.19 | 13.85 | 237.73 | 0.2766 | 722.0 | 584.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -11.68 | 187.07 | 13.72 | 243.16 | 0.2615 | 845.0 | 624.2 | |
| 5.68 | -12.00 | 2.90 | -12.00 | -9.24 | 186.90 | 13.55 | 252.04 | 0.2442 | 1165.1 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -13.84 | 187.06 | 13.71 | 236.06 | 0.2787 | 843.0 | 711.2 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -8.64 | 186.69 | 13.34 | 254.23 | 0.2382 | 793.0 | 610.0 | |
| 0.00 | 2.31 | 0.00 | 1.18 | -9.15 | 186.68 | 13.33 | 252.13 | 0.2402 | 863.0 | 657.5 | |
| 0.98 | 22.10 | 0.50 | 11.30 | -11.45 | 186.74 | 13.40 | 243.47 | 0.2549 | 1002.5 | 884.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.31 | 186.49 | 13.14 | 255.39 | 0.2336 | 832.0 | 702.5 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -12.78 | 186.68 | 13.34 | 238.75 | 0.2643 | 1005.0 | 835.2 | |
| 0.71 | 3.90 | 0.36 | 1.99 | -10.82 | 186.33 | 12.99 | 245.14 | 0.2444 | 787.9 | 453.8 | |
| 1.60 | -20.00 | 0.82 | -20.00 | -11.58 | 186.12 | 12.77 | 241.94 | 0.2465 | 934.2 | 999999 | |
| 0.00 | 3.37 | 0.00 | 1.72 | -10.62 | 185.48 | 12.13 | 244.49 | 0.2299 | -719.0 | -428.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -10.44 | 185.41 | 12.06 | 245.09 | 0.2276 | -450.0 | -495.7 | |
| 0.00 | 2.84 | 0.00 | 1.45 | -11.05 | 185.31 | 11.96 | 242.49 | 0.2304 | -776.0 | -555.2 | |
| 0.00 | 4.17 | 0.00 | 2.12 | -10.66 | 184.95 | 11.60 | 243.37 | 0.2221 | -786.0 | -708.6 | |
| 2.04 | 9.67 | 1.04 | 4.91 | -10.82 | 184.58 | 11.23 | 242.00 | 0.2177 | -1086.7 | -863.1 | |
| 0.00 | 3.02 | 0.00 | 1.53 | -10.86 | 183.77 | 10.42 | 240.08 | 0.2059 | -833.0 | -645.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -7.03 | 183.54 | 10.19 | 258.58 | 0.1800 | -761.0 | -550.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -7.39 | 183.48 | 10.14 | 256.54 | 0.1803 | -730.0 | -598.2 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -10.77 | 183.52 | 10.17 | 239.87 | 0.2014 | -946.0 | -800.2 | |
| 0.00 | 3.37 | 0.00 | 1.70 | -7.69 | 183.43 | 10.08 | 254.83 | 0.1806 | -1040.0 | -883.9 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -9.35 | 183.47 | 10.13 | 246.36 | 0.1902 | -585.0 | -571.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -11.17 | 183.47 | 10.12 | 238.06 | 0.2041 | 885.0 | 699.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.72 | 183.30 | 9.95 | 244.22 | 0.1900 | -951.0 | -834.5 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -9.51 | 183.17 | 9.82 | 244.96 | 0.1865 | -1062.0 | -907.2 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.72 | 183.08 | 9.74 | 248.78 | 0.1802 | -864.0 | -689.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.14 | 183.09 | 9.75 | 241.73 | 0.1901 | -997.0 | -694.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | -9.69 | 183.05 | 9.70 | 243.81 | 0.1860 | -975.0 | -864.3 | |
| 0.44 | 2.13 | 0.22 | 1.07 | -7.61 | 182.63 | 9.28 | 254.13 | 0.1669 | -1148.2 | -944.3 | |
| 22.10 | 52.27 | 11.19 | 26.46 | -12.57 | 182.64 | 9.29 | 230.14 | 0.2063 | 1211.7 | 470.5 | |
| 0.00 | 4.35 | 0.00 | 2.19 | -9.82 | 182.28 | 8.93 | 241.28 | 0.1752 | -872.0 | -733.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -13.37 | 182.01 | 8.67 | 225.25 | 0.2073 | 789.0 | 638.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.27 | 181.89 | 8.55 | 218.87 | 0.2295 | -962.0 | -707.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -10.99 | 181.07 | 7.72 | 231.82 | 0.1686 | -819.0 | -571.9 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -12.82 | 180.00 | 6.65 | 219.86 | 0.1770 | -737.0 | -504.3 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -18.00 | 178.47 | 5.13 | 200.77 | 0.2407 | 888.0 | 678.1 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -18.19 | 177.97 | 4.62 | 198.63 | 0.2409 | 889.0 | 619.9 | |
| 0.00 | 3.02 | 0.00 | 1.52 | -14.42 | 174.55 | 1.21 | 187.16 | 0.1645 | -807.0 | -662.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
