SDO HMI 2014-04-21 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.03 | 0.00 | 3.37 | 17.15 | 187.71 | 14.37 | 328.44 | 0.4591 | -149.6 | -132.4 | |
|
previous
or next observation for the same group /

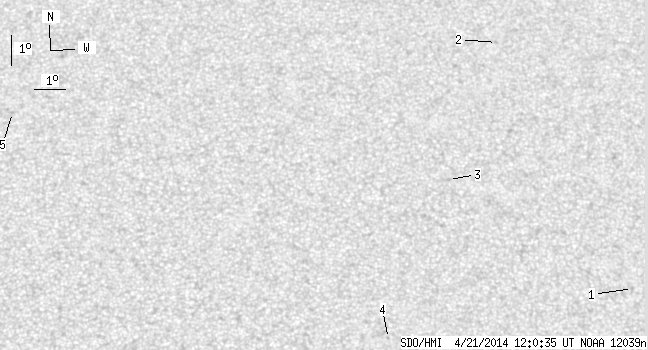

back to the solar disc SDO HMI 2014-04-21 12:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 0.90 | 14.51 | 194.86 | 21.51 | 312.85 | 0.4861 | -738.0 | -520.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 22.49 | 191.22 | 17.88 | 328.27 | 0.5415 | -642.0 | -506.4 | |
| 0.00 | 1.15 | 0.00 | 0.65 | 17.87 | 189.09 | 15.74 | 326.26 | 0.4669 | -753.0 | -649.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 12.71 | 186.78 | 13.43 | 323.22 | 0.3800 | 695.0 | 582.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 19.90 | 175.11 | 1.77 | 356.07 | 0.4249 | 690.0 | 513.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
