SDO HMI 2014-04-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.93 | 0.00 | 4.10 | -16.43 | 203.64 | 30.84 | 245.74 | 0.5434 | -133.7 | -46.5 | |
|
previous
or next observation for the same group /

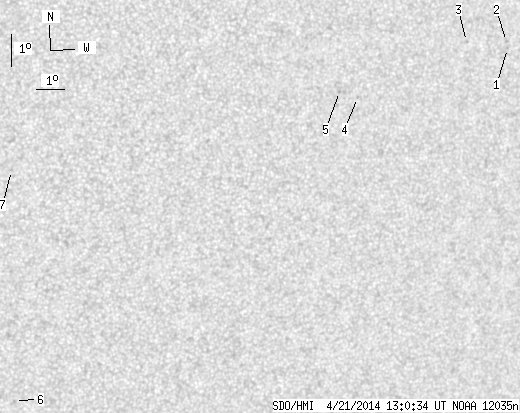

back to the solar disc SDO HMI 2014-04-21 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.61 | -13.97 | 209.55 | 36.76 | 253.53 | 0.6078 | 727.0 | 530.8 | |
| 0.00 | 0.89 | 0.00 | 0.55 | -13.76 | 209.47 | 36.68 | 253.85 | 0.6062 | 721.0 | 621.0 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -13.83 | 207.95 | 35.16 | 253.28 | 0.5860 | 401.0 | 439.0 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -15.73 | 204.21 | 31.41 | 248.53 | 0.5412 | -720.0 | -607.0 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -15.57 | 203.52 | 30.73 | 248.47 | 0.5312 | -648.0 | -551.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -25.63 | 193.66 | 20.86 | 222.01 | 0.4816 | -630.0 | -465.2 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -18.40 | 192.48 | 19.68 | 233.62 | 0.3986 | -787.0 | -572.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
