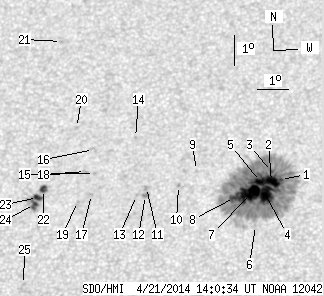

SDO HMI 2014-04-21 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.07 | 416.10 | 38.45 | 224.99 | 17.83 | 166.71 | -5.53 | 13.18 | 0.4022 | -543.9 | -329.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.98 | 369.80 | 0.53 | 199.58 | 18.14 | 168.04 | -4.21 | 10.05 | 0.4017 | -1018.6 | -434.0 | |
| 11.27 | -1.00 | 6.09 | -1.00 | 18.07 | 167.75 | -4.50 | 10.74 | 0.4015 | -1169.9 | 999999 | |
| 1.33 | -1.00 | 0.72 | -1.00 | 18.40 | 167.74 | -4.50 | 10.60 | 0.4067 | -682.0 | 999999 | |
| 15.88 | -1.00 | 8.56 | -1.00 | 17.65 | 167.57 | -4.68 | 11.38 | 0.3954 | -1428.0 | 999999 | |
| 5.94 | -1.00 | 3.21 | -1.00 | 18.08 | 167.40 | -4.85 | 11.56 | 0.4026 | -1160.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.64 | 167.28 | -4.97 | 12.65 | 0.3805 | -207.0 | -181.0 | |
| 24.40 | -1.00 | 13.16 | -1.00 | 17.69 | 167.09 | -5.15 | 12.48 | 0.3975 | -1365.6 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 17.56 | 166.59 | -5.66 | 13.74 | 0.3974 | -1029.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 18.46 | 165.35 | -6.90 | 15.95 | 0.4163 | -642.0 | -512.8 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 17.97 | 164.79 | -7.46 | 17.53 | 0.4115 | -601.0 | -490.4 | |
| 0.00 | 2.31 | 0.00 | 1.26 | 17.92 | 163.77 | -8.48 | 19.79 | 0.4159 | 791.0 | 717.8 | |
| 0.00 | 2.93 | 0.00 | 1.59 | 17.66 | 163.75 | -8.50 | 20.06 | 0.4122 | 1130.0 | 929.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 17.67 | 163.46 | -8.78 | 20.68 | 0.4138 | 767.0 | 551.8 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 19.58 | 163.33 | -8.91 | 19.34 | 0.4428 | 713.0 | 544.2 | |
| 0.00 | 1.24 | 0.00 | 0.68 | 18.41 | 162.07 | -10.17 | 22.88 | 0.4329 | 694.0 | 618.9 | |
| 0.00 | 2.75 | 0.00 | 1.52 | 19.20 | 161.99 | -10.25 | 22.31 | 0.4447 | 545.0 | 605.5 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 17.72 | 162.02 | -10.23 | 23.66 | 0.4233 | 812.0 | 636.2 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 18.48 | 161.78 | -10.47 | 23.40 | 0.4357 | 811.0 | 646.4 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 17.50 | 161.58 | -10.67 | 24.78 | 0.4230 | 715.0 | 647.4 | |
| 0.00 | 1.77 | 0.00 | 0.99 | 19.94 | 161.39 | -10.85 | 22.79 | 0.4589 | 651.0 | 514.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 22.85 | 160.67 | -11.57 | 21.61 | 0.5039 | 814.0 | 586.7 | |
| 3.46 | 24.04 | 1.90 | 13.21 | 17.92 | 160.46 | -11.79 | 26.57 | 0.4365 | 875.1 | 669.5 | |
| 3.37 | -22.00 | 1.85 | -22.00 | 17.66 | 160.28 | -11.97 | 27.19 | 0.4341 | 998.3 | 999999 | |
| 4.17 | -22.00 | 2.29 | -22.00 | 17.43 | 160.20 | -12.05 | 27.60 | 0.4316 | 1059.2 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 14.85 | 160.00 | -12.24 | 31.17 | 0.3977 | 707.0 | 613.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
