SDO HMI 2014-04-21 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.07 | 0.00 | 4.64 | -17.50 | 199.34 | 27.65 | 241.79 | 0.5042 | -473.1 | -400.5 | |
|
previous
or next observation for the same group /

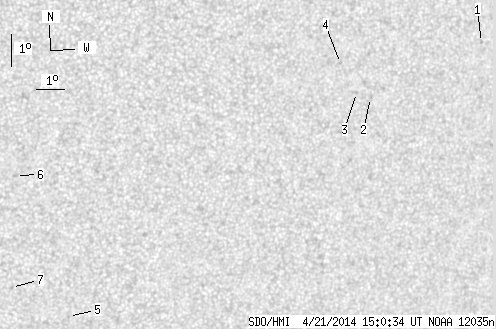

back to the solar disc SDO HMI 2014-04-21 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.60 | -13.86 | 208.00 | 36.31 | 253.57 | 0.6015 | 554.0 | 468.5 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -15.74 | 204.14 | 32.44 | 248.99 | 0.5553 | -587.0 | -507.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | -15.61 | 203.60 | 31.90 | 248.97 | 0.5474 | -595.0 | -498.4 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -14.75 | 202.87 | 31.17 | 250.18 | 0.5342 | -644.0 | -418.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | -22.94 | 194.53 | 22.83 | 228.76 | 0.4771 | -665.0 | -575.2 | |
| 0.00 | 1.77 | 0.00 | 0.96 | -18.59 | 192.04 | 20.34 | 234.04 | 0.4088 | -804.0 | -609.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -22.09 | 192.38 | 20.69 | 227.69 | 0.4445 | -571.0 | -558.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
