SDO HMI 2014-04-21 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.30 | 227.63 | 33.56 | 116.84 | -11.24 | 185.44 | 13.74 | 244.05 | 0.2614 | 528.1 | 291.7 | |
|
previous
or next observation for the same group /

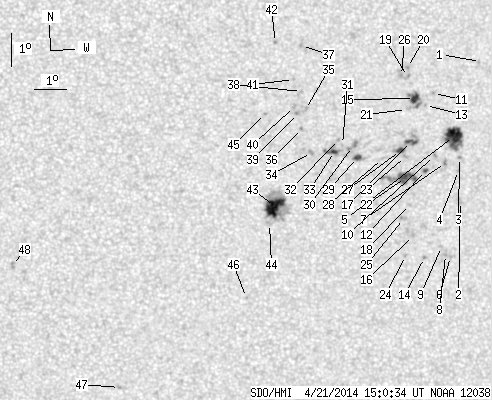

back to the solar disc SDO HMI 2014-04-21 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.41 | -8.03 | 188.99 | 17.30 | 259.32 | 0.3009 | 528.0 | 590.4 | |
| 0.00 | 3.28 | 0.00 | 1.71 | -12.27 | 188.58 | 16.89 | 245.54 | 0.3132 | 750.0 | 685.8 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.94 | 188.47 | 16.77 | 249.49 | 0.3038 | 879.0 | 646.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.34 | 188.46 | 16.76 | 248.25 | 0.3058 | 809.0 | 683.2 | |
| 19.96 | 31.76 | 10.35 | 16.47 | -10.31 | 188.24 | 16.55 | 251.28 | 0.2971 | 1141.2 | 749.1 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -13.95 | 188.38 | 16.68 | 240.44 | 0.3216 | 781.0 | 609.5 | |
| 0.00 | 2.40 | 0.00 | 1.24 | -11.10 | 188.03 | 16.33 | 248.52 | 0.2979 | 1058.0 | 918.4 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -13.90 | 188.21 | 16.51 | 240.37 | 0.3188 | 732.0 | 674.7 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -13.66 | 188.06 | 16.37 | 240.85 | 0.3149 | 818.0 | 587.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.90 | 187.67 | 15.97 | 248.78 | 0.2911 | 894.0 | 769.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -9.03 | 187.54 | 15.85 | 254.99 | 0.2805 | 782.0 | 577.3 | |
| 0.98 | 2.22 | 0.50 | 1.15 | -11.36 | 187.41 | 15.71 | 246.98 | 0.2897 | 1016.1 | 784.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -9.40 | 187.31 | 15.61 | 253.51 | 0.2781 | 749.0 | 610.7 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -14.00 | 187.54 | 15.84 | 239.10 | 0.3100 | 898.0 | 722.5 | |
| 4.79 | 14.11 | 2.47 | 7.26 | -9.19 | 186.95 | 15.25 | 253.91 | 0.2715 | 1162.3 | 791.5 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -13.34 | 187.14 | 15.44 | 240.44 | 0.2992 | 830.0 | 659.2 | |
| 3.11 | 17.57 | 1.60 | 9.05 | -10.49 | 186.91 | 15.22 | 249.30 | 0.2771 | 1041.5 | 666.9 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -12.40 | 186.95 | 15.26 | 243.06 | 0.2896 | 722.0 | 451.0 | |
| 0.00 | 2.66 | 0.00 | 1.37 | -8.53 | 186.70 | 15.00 | 256.10 | 0.2649 | 703.0 | 646.0 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -8.26 | 186.69 | 14.99 | 257.10 | 0.2638 | 895.0 | 679.9 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -9.53 | 186.71 | 15.01 | 252.47 | 0.2691 | 622.0 | 588.2 | |
| 8.52 | 25.02 | 4.40 | 12.90 | -11.59 | 186.78 | 15.08 | 245.45 | 0.2815 | 1069.0 | 799.4 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -10.95 | 186.75 | 15.05 | 247.54 | 0.2771 | 839.0 | 653.0 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -13.96 | 186.92 | 15.23 | 238.30 | 0.3009 | 783.0 | 652.5 | |
| 0.00 | 2.48 | 0.00 | 1.29 | -12.83 | 186.79 | 15.09 | 241.47 | 0.2902 | 849.0 | 819.6 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -8.51 | 186.51 | 14.81 | 256.05 | 0.2617 | 921.0 | 717.2 | |
| 2.40 | -17.00 | 1.23 | -17.00 | -10.77 | 186.58 | 14.88 | 247.94 | 0.2735 | 1043.4 | 999999 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -11.03 | 186.02 | 14.32 | 246.33 | 0.2663 | -486.0 | -235.3 | |
| 2.48 | 5.94 | 1.27 | 3.04 | -11.01 | 185.23 | 13.53 | 245.25 | 0.2541 | -879.5 | -490.6 | |
| 0.00 | 6.30 | 0.00 | 3.22 | -10.68 | 185.06 | 13.36 | 246.21 | 0.2493 | -786.0 | -739.9 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -10.63 | 184.74 | 13.04 | 245.94 | 0.2440 | -688.0 | -513.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -10.48 | 184.61 | 12.91 | 246.31 | 0.2410 | -927.0 | -745.4 | |
| 1.95 | 10.11 | 1.00 | 5.16 | -10.84 | 184.50 | 12.80 | 244.73 | 0.2417 | -1038.2 | -803.0 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -10.89 | 183.78 | 12.08 | 243.33 | 0.2310 | -841.0 | -703.6 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -9.59 | 183.54 | 11.84 | 248.28 | 0.2188 | -586.0 | -653.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -10.17 | 183.44 | 11.74 | 245.66 | 0.2208 | -928.0 | -816.4 | |
| 0.00 | 1.69 | 0.00 | 0.85 | -7.66 | 183.36 | 11.66 | 256.80 | 0.2067 | -951.0 | -819.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -9.05 | 183.40 | 11.70 | 250.44 | 0.2135 | -712.0 | -513.7 | |
| 0.00 | 1.95 | 0.00 | 0.99 | -9.71 | 183.30 | 11.60 | 247.34 | 0.2157 | -1005.0 | -870.3 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -9.50 | 183.20 | 11.50 | 248.10 | 0.2129 | -956.0 | -804.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.69 | 183.14 | 11.44 | 251.70 | 0.2075 | -940.0 | -740.3 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -7.58 | 182.55 | 10.85 | 256.33 | 0.1930 | -1025.0 | -813.5 | |
| 21.11 | 52.79 | 10.74 | 26.86 | -12.54 | 182.68 | 10.99 | 234.73 | 0.2289 | 1207.3 | 445.1 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -13.06 | 182.55 | 10.85 | 232.54 | 0.2321 | 243.0 | 316.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -9.73 | 182.30 | 10.60 | 245.49 | 0.2002 | -919.0 | -703.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.33 | 181.93 | 10.23 | 223.67 | 0.2491 | -657.0 | -496.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -18.14 | 178.01 | 6.31 | 204.75 | 0.2507 | 920.0 | 693.1 | |
| 0.00 | 2.75 | 0.00 | 1.38 | -14.41 | 174.56 | 2.86 | 196.56 | 0.1702 | -933.0 | -799.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
