SDO HMI 2014-04-21 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.99 | 237.48 | 33.97 | 122.22 | -11.19 | 185.52 | 14.37 | 245.22 | 0.2705 | 472.2 | 282.2 | |
|
previous
or next observation for the same group /

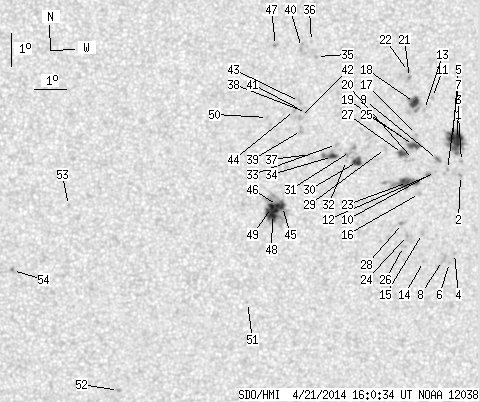

back to the solar disc SDO HMI 2014-04-21 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.74 | -10.93 | 188.56 | 17.41 | 250.16 | 0.3137 | 861.0 | 566.6 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -11.35 | 188.55 | 17.41 | 248.86 | 0.3158 | 876.0 | 719.3 | |
| 8.60 | 35.31 | 4.48 | 18.37 | -10.27 | 188.39 | 17.25 | 252.06 | 0.3080 | 1076.2 | 758.7 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -13.72 | 188.52 | 17.37 | 241.98 | 0.3301 | 740.0 | 613.2 | |
| 5.85 | -3.00 | 3.04 | -3.00 | -10.21 | 188.23 | 17.08 | 252.09 | 0.3052 | 1310.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -14.00 | 188.38 | 17.23 | 241.03 | 0.3300 | 657.0 | 531.1 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -11.18 | 188.12 | 16.98 | 248.95 | 0.3083 | 956.0 | 770.7 | |
| 0.00 | 6.92 | 0.00 | 3.62 | -13.95 | 188.15 | 17.00 | 240.88 | 0.3262 | 693.0 | 600.2 | |
| 0.00 | 3.81 | 0.00 | 1.98 | -10.89 | 187.78 | 16.64 | 249.53 | 0.3015 | 1033.0 | 781.9 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -11.25 | 187.74 | 16.60 | 248.34 | 0.3028 | 802.0 | 655.7 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -9.02 | 187.53 | 16.39 | 255.44 | 0.2891 | 853.0 | 592.9 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -11.38 | 187.52 | 16.38 | 247.70 | 0.3001 | 1046.0 | 880.4 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -9.39 | 187.29 | 16.15 | 254.00 | 0.2867 | 709.0 | 542.1 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -13.99 | 187.53 | 16.39 | 239.92 | 0.3178 | 813.0 | 696.5 | |
| 0.00 | 2.22 | 0.00 | 1.16 | -13.14 | 187.44 | 16.30 | 242.24 | 0.3102 | 690.0 | 622.3 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -11.93 | 187.27 | 16.12 | 245.68 | 0.2995 | 549.0 | 439.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -10.15 | 187.08 | 15.93 | 251.23 | 0.2866 | 719.0 | 635.7 | |
| 5.68 | 12.24 | 2.93 | 6.32 | -9.18 | 186.97 | 15.82 | 254.43 | 0.2806 | 1139.6 | 841.1 | |
| 4.26 | 8.69 | 2.20 | 4.49 | -10.48 | 187.00 | 15.85 | 250.03 | 0.2870 | 1155.3 | 764.3 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -10.90 | 187.02 | 15.87 | 248.66 | 0.2896 | 595.0 | 443.3 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -8.43 | 186.78 | 15.63 | 256.94 | 0.2748 | 842.0 | 742.8 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -8.25 | 186.74 | 15.59 | 257.56 | 0.2736 | 900.0 | 708.6 | |
| 10.11 | 22.36 | 5.23 | 11.56 | -11.60 | 186.87 | 15.72 | 246.21 | 0.2914 | 1081.6 | 767.5 | |
| 0.00 | 1.69 | 0.00 | 0.88 | -13.21 | 186.96 | 15.82 | 241.37 | 0.3037 | 1014.0 | 807.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.33 | 186.80 | 15.65 | 250.32 | 0.2832 | 1103.0 | 793.4 | |
| 0.00 | 2.13 | 0.00 | 1.11 | -13.55 | 186.86 | 15.71 | 240.22 | 0.3047 | 651.0 | 437.2 | |
| 3.28 | 9.23 | 1.69 | 4.76 | -10.73 | 186.66 | 15.51 | 248.83 | 0.2831 | 1114.4 | 619.5 | |
| 0.00 | 2.75 | 0.00 | 1.43 | -12.85 | 186.78 | 15.64 | 242.19 | 0.2984 | 929.0 | 789.9 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -10.59 | 186.11 | 14.97 | 248.67 | 0.2738 | 703.0 | 432.8 | |
| 4.70 | 8.34 | 2.41 | 4.28 | -11.00 | 185.25 | 14.10 | 246.10 | 0.2627 | -850.5 | -345.5 | |
| 0.00 | 5.94 | 0.00 | 3.05 | -10.70 | 185.01 | 13.86 | 246.85 | 0.2572 | -806.0 | -686.9 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -10.98 | 184.90 | 13.75 | 245.69 | 0.2572 | -884.0 | -736.4 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -10.50 | 184.56 | 13.41 | 246.96 | 0.2490 | -909.0 | -777.5 | |
| 2.66 | 10.02 | 1.36 | 5.12 | -10.87 | 184.45 | 13.30 | 245.43 | 0.2496 | -1095.7 | -860.0 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -7.86 | 183.84 | 12.69 | 256.88 | 0.2245 | -722.0 | -569.9 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -7.41 | 183.67 | 12.52 | 258.73 | 0.2203 | -697.0 | -470.8 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -10.82 | 183.72 | 12.58 | 244.45 | 0.2382 | -811.0 | -670.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.55 | 183.58 | 12.44 | 249.32 | 0.2280 | -769.0 | -626.2 | |
| 0.00 | 3.90 | 0.00 | 1.99 | -10.10 | 183.44 | 12.30 | 246.86 | 0.2291 | -822.0 | -641.5 | |
| 0.00 | 3.46 | 0.00 | 1.75 | -7.59 | 183.36 | 12.22 | 257.63 | 0.2157 | -990.0 | -735.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.49 | 183.42 | 12.28 | 249.33 | 0.2252 | -881.0 | -782.8 | |
| 0.00 | 2.48 | 0.00 | 1.26 | -9.71 | 183.40 | 12.25 | 248.41 | 0.2260 | -904.0 | -772.7 | |
| 0.00 | 2.04 | 0.00 | 1.04 | -9.22 | 183.35 | 12.21 | 250.38 | 0.2225 | -638.0 | -596.6 | |
| 0.00 | 2.13 | 0.00 | 1.08 | -9.50 | 183.20 | 12.06 | 249.00 | 0.2217 | -1028.0 | -760.8 | |
| 2.93 | 51.90 | 1.49 | 26.46 | -12.41 | 182.94 | 11.80 | 237.03 | 0.2391 | 982.2 | 408.1 | |
| 2.66 | -45.00 | 1.36 | -45.00 | -12.38 | 182.78 | 11.64 | 236.79 | 0.2366 | 1271.7 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.90 | -7.55 | 182.55 | 11.41 | 257.09 | 0.2021 | -1173.0 | -843.2 | |
| 10.47 | -45.00 | 5.34 | -45.00 | -12.66 | 182.64 | 11.49 | 235.48 | 0.2371 | 1173.1 | 999999 | |
| 4.79 | -45.00 | 2.44 | -45.00 | -12.45 | 182.60 | 11.45 | 236.15 | 0.2345 | 1389.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -9.72 | 182.37 | 11.22 | 246.66 | 0.2099 | -869.0 | -660.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -15.35 | 181.98 | 10.83 | 225.20 | 0.2566 | -622.0 | -423.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -18.11 | 178.00 | 6.85 | 206.63 | 0.2541 | 923.0 | 762.1 | |
| 0.00 | 1.42 | 0.00 | 0.71 | -12.46 | 176.27 | 5.12 | 214.09 | 0.1563 | -697.0 | -550.1 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -14.44 | 174.56 | 3.42 | 199.51 | 0.1737 | -1098.0 | -922.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
