SDO HMI 2014-04-21 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.91 | 72.66 | 15.12 | 42.66 | -19.73 | 141.08 | -29.52 | 119.69 | 0.5344 | 353.0 | 229.5 | |
|
previous
or next observation for the same group /

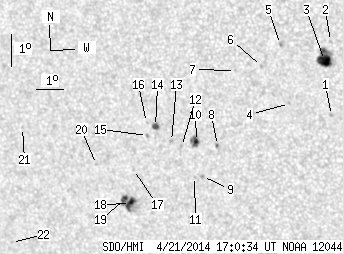

back to the solar disc SDO HMI 2014-04-21 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.65 | -19.36 | 145.70 | -24.89 | 122.66 | 0.4736 | 756.0 | 681.6 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -17.07 | 146.02 | -24.57 | 118.48 | 0.4541 | 763.0 | 586.0 | |
| 11.62 | 20.58 | 6.48 | 11.48 | -17.65 | 145.73 | -24.87 | 119.38 | 0.4618 | 1000.8 | 714.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | -18.93 | 144.29 | -26.30 | 120.63 | 0.4891 | 781.0 | 690.1 | |
| 0.00 | 1.77 | 0.00 | 1.00 | -17.10 | 144.27 | -26.32 | 117.13 | 0.4782 | 913.0 | 626.7 | |
| 0.00 | 1.42 | 0.00 | 0.81 | -17.75 | 143.49 | -27.10 | 117.80 | 0.4925 | 807.0 | 569.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | -17.84 | 142.55 | -28.04 | 117.28 | 0.5056 | -662.0 | -508.7 | |
| 0.44 | 1.51 | 0.26 | 0.88 | -20.13 | 141.46 | -29.13 | 120.60 | 0.5331 | 744.6 | 579.8 | |
| 0.00 | 1.69 | 0.00 | 1.00 | -21.07 | 140.70 | -29.89 | 121.64 | 0.5484 | 771.0 | 649.5 | |
| 2.31 | 7.45 | 1.36 | 4.39 | -19.97 | 140.72 | -29.87 | 119.81 | 0.5416 | 964.9 | 751.6 | |
| 0.00 | 0.89 | 0.00 | 0.53 | -21.06 | 140.41 | -30.19 | 121.41 | 0.5520 | 582.0 | 510.6 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -20.10 | 140.13 | -30.46 | 119.63 | 0.5498 | 523.0 | 475.9 | |
| 0.00 | 1.60 | 0.00 | 0.95 | -19.93 | 139.80 | -30.80 | 119.12 | 0.5531 | 757.0 | 556.9 | |
| 2.40 | 3.99 | 1.43 | 2.38 | -19.44 | 139.31 | -31.29 | 117.99 | 0.5567 | 908.7 | 728.2 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -19.70 | 138.95 | -31.65 | 118.21 | 0.5627 | 595.0 | 488.8 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -19.30 | 139.00 | -31.59 | 117.57 | 0.5599 | 576.0 | 477.4 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -20.74 | 138.18 | -32.42 | 119.43 | 0.5778 | -811.0 | -595.9 | |
| 6.21 | 20.58 | 3.80 | 12.59 | -21.79 | 137.79 | -32.80 | 120.88 | 0.5883 | -1076.9 | -660.2 | |
| 2.93 | -18.00 | 1.79 | -18.00 | -21.65 | 137.60 | -32.99 | 120.54 | 0.5899 | -754.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.60 | -20.51 | 136.81 | -33.79 | 118.28 | 0.5937 | -738.0 | -559.5 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -19.22 | 134.23 | -36.36 | 114.98 | 0.6198 | 607.0 | 482.9 | |
| 0.00 | 0.98 | 0.00 | 0.64 | -22.78 | 132.74 | -37.85 | 119.59 | 0.6529 | 526.0 | 375.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
