SDO HMI 2014-04-21 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.58 | 102.48 | 17.29 | 87.04 | -23.37 | 117.34 | -53.26 | 115.24 | 0.8151 | 396.2 | 335.4 | |
|
previous
or next observation for the same group /

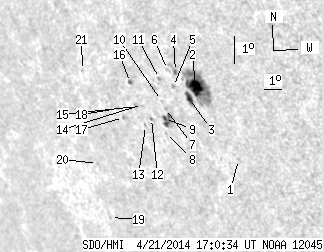

back to the solar disc SDO HMI 2014-04-21 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.81 | -25.58 | 119.22 | -51.37 | 118.36 | 0.8030 | 580.0 | 503.3 | |
| 13.75 | 58.64 | 11.45 | 48.70 | -23.18 | 118.30 | -52.29 | 115.21 | 0.8061 | 918.9 | 478.0 | |
| 4.35 | 7.81 | 3.66 | 6.58 | -23.50 | 117.79 | -52.80 | 115.49 | 0.8114 | 504.0 | 281.5 | |
| 0.53 | 4.17 | 0.45 | 3.53 | -22.61 | 117.53 | -53.06 | 114.35 | 0.8121 | 525.2 | 330.2 | |
| 0.00 | 1.77 | 0.00 | 1.51 | -23.07 | 117.16 | -53.43 | 114.83 | 0.8164 | 451.0 | 297.2 | |
| 0.00 | 1.51 | 0.00 | 1.28 | -22.52 | 117.14 | -53.45 | 114.16 | 0.8155 | 228.0 | 180.1 | |
| 0.00 | 0.89 | 0.00 | 0.77 | -23.72 | 116.32 | -54.27 | 115.44 | 0.8251 | 251.0 | 254.9 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -24.50 | 115.83 | -54.76 | 116.26 | 0.8309 | 438.0 | 353.9 | |
| 1.15 | 11.18 | 1.01 | 9.78 | -24.03 | 116.08 | -54.52 | 115.75 | 0.8279 | 523.6 | 528.4 | |
| 0.00 | 0.62 | 0.00 | 0.54 | -23.46 | 116.26 | -54.33 | 115.11 | 0.8252 | 333.0 | 262.4 | |
| 0.00 | 1.60 | 0.00 | 1.38 | -22.77 | 116.56 | -54.04 | 114.34 | 0.8213 | 492.0 | 409.6 | |
| 0.00 | 1.06 | 0.00 | 0.95 | -23.98 | 115.36 | -55.23 | 115.55 | 0.8341 | 164.0 | 189.1 | |
| 0.00 | 1.51 | 0.00 | 1.36 | -24.17 | 114.88 | -55.71 | 115.68 | 0.8385 | 246.0 | 136.8 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -23.51 | 115.14 | -55.46 | 114.95 | 0.8352 | -176.0 | -209.2 | |
| 0.00 | 3.10 | 0.00 | 2.81 | -23.55 | 114.76 | -55.83 | 114.92 | 0.8385 | -441.0 | -455.3 | |
| 0.80 | 2.22 | 0.72 | 1.99 | -22.78 | 114.89 | -55.70 | 114.04 | 0.8361 | -650.2 | -533.4 | |
| 0.00 | 1.24 | 0.00 | 1.15 | -23.83 | 113.79 | -56.80 | 115.08 | 0.8472 | -466.0 | -422.9 | |
| 0.00 | 1.24 | 0.00 | 1.15 | -23.53 | 113.63 | -56.96 | 114.70 | 0.8481 | -418.0 | -333.9 | |
| 0.00 | 0.27 | 0.00 | 0.27 | -26.88 | 110.58 | -60.01 | 118.01 | 0.8770 | -443.0 | -512.0 | |
| 0.00 | 0.98 | 0.00 | 0.97 | -25.14 | 111.18 | -59.41 | 116.14 | 0.8701 | -413.0 | -348.7 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -22.21 | 112.37 | -58.23 | 112.96 | 0.8568 | -429.0 | -398.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
