SDO HMI 2014-04-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108.57 | 472.07 | 94.74 | 411.24 | -13.64 | 225.41 | 55.37 | 256.80 | 0.8226 | 380.5 | 203.3 | |
|
previous
or next observation for the same group /

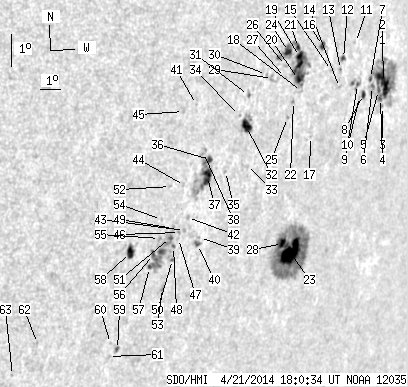

back to the solar disc SDO HMI 2014-04-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.48 | 90.30 | 17.01 | 87.89 | -10.75 | 229.82 | 59.78 | 260.49 | 0.8628 | 609.3 | 179.6 | |
| 1.15 | -1.00 | 1.12 | -1.00 | -10.16 | 229.58 | 59.54 | 261.18 | 0.8606 | 552.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 1.04 | -11.48 | 230.01 | 59.97 | 259.66 | 0.8645 | 359.0 | 295.4 | |
| 1.33 | -1.00 | 1.29 | -1.00 | -11.25 | 229.80 | 59.76 | 259.92 | 0.8627 | 582.7 | 999999 | |
| 1.06 | -1.00 | 1.03 | -1.00 | -11.02 | 229.60 | 59.56 | 260.19 | 0.8609 | 627.2 | 999999 | |
| 0.80 | -1.00 | 0.76 | -1.00 | -10.92 | 229.21 | 59.17 | 260.29 | 0.8574 | 728.7 | 999999 | |
| 0.89 | -1.00 | 0.84 | -1.00 | -10.69 | 229.02 | 58.98 | 260.56 | 0.8557 | 755.8 | 999999 | |
| 2.13 | 3.73 | 2.01 | 3.52 | -11.20 | 228.76 | 58.72 | 259.96 | 0.8535 | 477.1 | 354.6 | |
| 0.00 | 0.62 | 0.00 | 0.58 | -11.28 | 228.55 | 58.51 | 259.86 | 0.8516 | 596.0 | 469.7 | |
| 0.98 | 7.10 | 0.91 | 6.60 | -10.93 | 228.32 | 58.28 | 260.27 | 0.8494 | 609.5 | 586.3 | |
| 0.00 | 0.89 | 0.00 | 0.82 | -9.68 | 227.84 | 57.80 | 261.74 | 0.8450 | 666.0 | 567.4 | |
| 1.42 | 3.02 | 1.29 | 2.73 | -10.21 | 227.29 | 57.25 | 261.11 | 0.8399 | 734.1 | 642.6 | |
| 0.00 | 1.24 | 0.00 | 1.12 | -10.55 | 227.22 | 57.18 | 260.70 | 0.8393 | 730.0 | 693.3 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -11.09 | 227.32 | 57.28 | 260.06 | 0.8404 | 481.0 | 415.8 | |
| 0.00 | 1.95 | 0.00 | 1.75 | -10.62 | 226.73 | 56.69 | 260.61 | 0.8347 | 210.0 | 193.9 | |
| 2.66 | 4.26 | 2.34 | 3.74 | -9.90 | 226.04 | 56.00 | 261.46 | 0.8280 | -645.9 | -443.3 | |
| 0.00 | 0.80 | 0.00 | 0.71 | -12.67 | 226.19 | 56.15 | 258.12 | 0.8302 | -493.0 | -402.9 | |
| 0.00 | 1.33 | 0.00 | 1.15 | -11.36 | 225.29 | 55.25 | 259.67 | 0.8210 | -348.0 | -340.3 | |
| 4.97 | 58.72 | 4.24 | 50.06 | -10.32 | 224.89 | 54.85 | 260.93 | 0.8168 | 536.1 | 142.9 | |
| 3.37 | -19.00 | 2.89 | -19.00 | -11.01 | 225.03 | 54.99 | 260.09 | 0.8183 | -264.5 | 999999 | |
| 1.95 | -19.00 | 1.66 | -19.00 | -10.05 | 224.77 | 54.73 | 261.26 | 0.8156 | 425.9 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.14 | -11.69 | 224.95 | 54.91 | 259.25 | 0.8178 | -388.0 | -285.7 | |
| 26.52 | 146.90 | 23.72 | 131.29 | -16.24 | 226.44 | 56.40 | 253.85 | 0.8347 | 792.6 | 185.6 | |
| 4.97 | -19.00 | 4.18 | -19.00 | -10.21 | 224.28 | 54.24 | 261.05 | 0.8107 | 771.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.68 | -12.19 | 224.78 | 54.74 | 258.63 | 0.8163 | 631.0 | 580.6 | |
| 0.00 | 1.95 | 0.00 | 1.64 | -10.64 | 224.23 | 54.19 | 260.52 | 0.8103 | 354.0 | 315.7 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -11.00 | 224.33 | 54.29 | 260.08 | 0.8114 | 306.0 | 306.4 | |
| 4.35 | -23.00 | 3.83 | -23.00 | -16.00 | 225.88 | 55.84 | 254.08 | 0.8293 | 1074.5 | 999999 | |
| 0.00 | 3.90 | 0.00 | 3.24 | -11.08 | 223.67 | 53.63 | 259.96 | 0.8047 | -371.0 | -48.2 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -10.98 | 223.33 | 53.29 | 260.07 | 0.8012 | 388.0 | 404.8 | |
| 0.53 | 2.40 | 0.43 | 1.94 | -11.67 | 222.59 | 52.55 | 259.16 | 0.7938 | 579.2 | 499.2 | |
| 7.98 | 15.97 | 6.50 | 13.00 | -12.61 | 222.75 | 52.71 | 257.99 | 0.7960 | -574.4 | -250.9 | |
| 0.00 | 2.84 | 0.00 | 2.33 | -13.78 | 223.12 | 53.08 | 256.55 | 0.8005 | 96.0 | 254.6 | |
| 0.00 | 1.15 | 0.00 | 0.93 | -12.30 | 222.31 | 52.27 | 258.35 | 0.7912 | -341.0 | -349.7 | |
| 0.00 | 1.15 | 0.00 | 0.93 | -14.03 | 222.12 | 52.08 | 256.14 | 0.7905 | 519.0 | 409.3 | |
| 2.22 | 38.14 | 1.75 | 30.05 | -13.73 | 221.22 | 51.18 | 256.44 | 0.7808 | 848.4 | 483.2 | |
| 9.40 | -36.00 | 7.44 | -36.00 | -14.24 | 221.28 | 51.24 | 255.78 | 0.7819 | 726.9 | 999999 | |
| 0.00 | 3.46 | 0.00 | 2.71 | -13.53 | 220.86 | 50.82 | 256.65 | 0.7769 | 513.0 | 543.7 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -16.11 | 221.51 | 51.47 | 253.43 | 0.7864 | 540.0 | 475.5 | |
| 1.24 | 3.28 | 0.99 | 2.62 | -16.33 | 221.49 | 51.45 | 253.15 | 0.7864 | 609.4 | 524.1 | |
| 0.00 | 0.71 | 0.00 | 0.55 | -12.11 | 220.13 | 50.09 | 258.43 | 0.7678 | 516.0 | 470.8 | |
| 0.00 | 1.86 | 0.00 | 1.46 | -15.55 | 220.71 | 50.67 | 254.05 | 0.7773 | 658.0 | 554.0 | |
| 0.00 | 1.95 | 0.00 | 1.53 | -15.95 | 220.70 | 50.66 | 253.53 | 0.7777 | 607.0 | 402.6 | |
| 0.00 | 0.80 | 0.00 | 0.62 | -14.59 | 220.25 | 50.21 | 255.22 | 0.7714 | -399.0 | -423.2 | |
| 0.00 | 1.51 | 0.00 | 1.15 | -12.36 | 219.57 | 49.53 | 258.05 | 0.7619 | 450.0 | 420.9 | |
| 0.00 | 1.33 | 0.00 | 1.04 | -16.03 | 220.48 | 50.44 | 253.40 | 0.7755 | 767.0 | 629.4 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -16.21 | 220.50 | 50.46 | 253.16 | 0.7759 | 643.0 | 571.5 | |
| 0.44 | 35.48 | 0.35 | 27.40 | -16.47 | 220.34 | 50.30 | 252.81 | 0.7746 | 744.0 | 269.0 | |
| 0.00 | 1.86 | 0.00 | 1.44 | -15.93 | 220.15 | 50.11 | 253.48 | 0.7719 | 525.0 | 499.6 | |
| 0.44 | 2.48 | 0.35 | 1.94 | -16.87 | 220.43 | 50.39 | 252.31 | 0.7761 | 685.8 | 552.5 | |
| 1.06 | -48.00 | 0.83 | -48.00 | -16.21 | 220.10 | 50.06 | 253.11 | 0.7717 | 432.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.81 | -14.66 | 219.59 | 49.55 | 255.04 | 0.7643 | -712.0 | -535.0 | |
| 0.00 | 2.48 | 0.00 | 1.94 | -17.78 | 220.28 | 50.24 | 251.12 | 0.7759 | 597.0 | 570.3 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -15.69 | 219.49 | 49.45 | 253.69 | 0.7644 | -228.0 | -318.7 | |
| 0.00 | 1.77 | 0.00 | 1.36 | -16.27 | 219.58 | 49.54 | 252.95 | 0.7663 | -484.0 | -442.6 | |
| 1.51 | -48.00 | 1.16 | -48.00 | -16.78 | 219.47 | 49.43 | 252.27 | 0.7658 | -426.3 | 999999 | |
| 0.98 | -48.00 | 0.75 | -48.00 | -17.18 | 219.42 | 49.38 | 251.74 | 0.7659 | -573.1 | 999999 | |
| 6.03 | 8.78 | 4.53 | 6.59 | -16.78 | 218.36 | 48.32 | 252.07 | 0.7539 | -735.4 | -499.9 | |
| 0.71 | 2.57 | 0.54 | 1.97 | -19.79 | 218.86 | 48.82 | 248.26 | 0.7648 | -523.4 | -383.9 | |
| 0.00 | 0.27 | 0.00 | 0.20 | -19.62 | 218.46 | 48.42 | 248.38 | 0.7602 | -429.0 | -473.0 | |
| 0.00 | 1.51 | 0.00 | 1.15 | -20.03 | 218.52 | 48.48 | 247.87 | 0.7617 | -360.0 | -365.5 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -19.83 | 215.11 | 45.07 | 247.26 | 0.7245 | -629.0 | -558.7 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -20.88 | 214.36 | 44.32 | 245.61 | 0.7191 | -680.0 | -518.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
