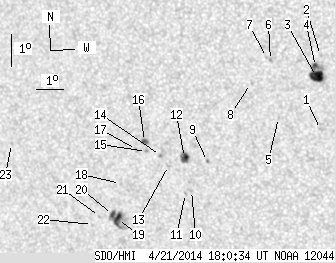

SDO HMI 2014-04-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.92 | 72.92 | 16.74 | 42.53 | -19.72 | 141.17 | -28.87 | 120.14 | 0.5260 | 398.7 | 178.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.79 | -19.31 | 145.68 | -24.36 | 123.07 | 0.4664 | 771.0 | 663.8 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -17.03 | 146.02 | -24.02 | 118.87 | 0.4462 | 811.0 | 530.9 | |
| 11.00 | 21.29 | 6.11 | 11.81 | -17.67 | 145.79 | -24.25 | 119.96 | 0.4535 | 1029.7 | 589.3 | |
| 2.22 | -3.00 | 1.23 | -3.00 | -17.36 | 145.80 | -24.24 | 119.35 | 0.4513 | 961.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -18.89 | 144.27 | -25.77 | 121.00 | 0.4818 | 778.0 | 630.7 | |
| 0.00 | 1.60 | 0.00 | 0.90 | -17.12 | 144.27 | -25.77 | 117.59 | 0.4707 | 860.0 | 639.2 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -17.02 | 144.15 | -25.89 | 117.30 | 0.4718 | 714.0 | 588.3 | |
| 0.00 | 0.71 | 0.00 | 0.40 | -17.80 | 143.46 | -26.58 | 118.28 | 0.4857 | 548.0 | 597.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -20.15 | 141.49 | -28.55 | 121.06 | 0.5259 | 857.0 | 673.9 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -21.03 | 140.71 | -29.33 | 121.98 | 0.5411 | 753.0 | 655.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -21.11 | 140.47 | -29.57 | 121.95 | 0.5446 | 609.0 | 501.3 | |
| 4.79 | 7.54 | 2.80 | 4.42 | -19.99 | 140.68 | -29.36 | 120.19 | 0.5352 | 898.8 | 652.4 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -20.21 | 140.04 | -30.00 | 120.13 | 0.5447 | 363.0 | 351.6 | |
| 0.00 | 1.51 | 0.00 | 0.89 | -19.89 | 139.81 | -30.23 | 119.43 | 0.5457 | 830.0 | 628.2 | |
| 0.00 | 0.98 | 0.00 | 0.58 | -19.74 | 139.32 | -30.72 | 118.86 | 0.5511 | 786.0 | 663.0 | |
| 1.86 | 3.46 | 1.10 | 2.05 | -19.43 | 139.31 | -30.73 | 118.32 | 0.5495 | 939.1 | 767.5 | |
| 0.00 | 1.86 | 0.00 | 1.11 | -19.66 | 138.96 | -31.08 | 118.50 | 0.5552 | 638.0 | 512.0 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -20.69 | 138.13 | -31.91 | 119.67 | 0.5714 | -902.0 | -654.6 | |
| 6.30 | 20.94 | 3.83 | 12.73 | -21.81 | 137.74 | -32.30 | 121.22 | 0.5824 | -1067.8 | -573.8 | |
| 2.75 | -19.00 | 1.67 | -19.00 | -21.65 | 137.59 | -32.45 | 120.86 | 0.5833 | -832.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -21.68 | 137.07 | -32.97 | 120.61 | 0.5897 | -623.0 | -485.9 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -21.92 | 136.74 | -33.30 | 120.78 | 0.5950 | -497.0 | -429.5 | |
| 0.00 | 0.98 | 0.00 | 0.61 | -19.25 | 134.26 | -35.78 | 115.29 | 0.6126 | 612.0 | 424.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
