SDO HMI 2014-04-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.02 | 95.90 | 20.87 | 80.38 | -23.31 | 117.41 | -52.63 | 115.29 | 0.8093 | 450.6 | 332.5 | |
|
previous
or next observation for the same group /

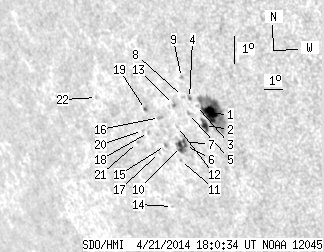

back to the solar disc SDO HMI 2014-04-21 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.70 | 57.31 | 12.93 | 47.07 | -23.18 | 118.28 | -51.76 | 115.33 | 0.8011 | 932.2 | 486.6 | |
| 4.17 | 6.92 | 3.47 | 5.77 | -23.53 | 117.76 | -52.28 | 115.64 | 0.8067 | 512.3 | 286.0 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -22.88 | 117.69 | -52.35 | 114.84 | 0.8060 | 322.0 | 276.7 | |
| 0.00 | 1.69 | 0.00 | 1.41 | -22.64 | 117.45 | -52.59 | 114.49 | 0.8078 | 631.0 | 458.7 | |
| 0.00 | 1.60 | 0.00 | 1.35 | -23.10 | 117.14 | -52.90 | 114.98 | 0.8116 | 420.0 | 282.6 | |
| 0.27 | 11.71 | 0.23 | 10.14 | -24.09 | 116.39 | -53.65 | 116.00 | 0.8203 | 728.3 | 458.5 | |
| 0.80 | -6.00 | 0.69 | -6.00 | -23.95 | 116.36 | -53.68 | 115.84 | 0.8203 | 667.3 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.97 | -22.56 | 117.12 | -52.92 | 114.31 | 0.8107 | 264.0 | 262.2 | |
| 0.00 | 1.33 | 0.00 | 1.11 | -21.97 | 117.38 | -52.65 | 113.65 | 0.8071 | 548.0 | 361.2 | |
| 3.55 | -6.00 | 3.08 | -6.00 | -24.10 | 116.10 | -53.94 | 115.96 | 0.8229 | 570.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.78 | -24.53 | 115.83 | -54.21 | 116.42 | 0.8262 | 473.0 | 355.0 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -23.47 | 116.32 | -53.72 | 115.24 | 0.8197 | 266.0 | 275.3 | |
| 0.00 | 1.77 | 0.00 | 1.51 | -22.77 | 116.50 | -53.54 | 114.44 | 0.8168 | 492.0 | 338.0 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -25.94 | 114.41 | -55.63 | 117.77 | 0.8410 | 336.0 | 301.0 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -24.01 | 115.30 | -54.74 | 115.68 | 0.8298 | 270.0 | 221.4 | |
| 0.00 | 2.04 | 0.00 | 1.78 | -23.12 | 115.51 | -54.53 | 114.67 | 0.8263 | -611.0 | -439.2 | |
| 0.00 | 0.98 | 0.00 | 0.87 | -24.20 | 114.83 | -55.21 | 115.82 | 0.8342 | 197.0 | 121.6 | |
| 0.00 | 1.24 | 0.00 | 1.11 | -23.54 | 114.62 | -55.42 | 114.99 | 0.8350 | -614.0 | -535.1 | |
| 0.53 | 1.95 | 0.47 | 1.73 | -22.82 | 114.89 | -55.15 | 114.19 | 0.8313 | -589.2 | -517.1 | |
| 0.00 | 1.06 | 0.00 | 0.96 | -23.46 | 114.32 | -55.72 | 114.83 | 0.8374 | -579.0 | -477.8 | |
| 0.00 | 1.06 | 0.00 | 0.97 | -23.81 | 113.80 | -56.24 | 115.15 | 0.8425 | -574.0 | -435.8 | |
| 0.00 | 1.24 | 0.00 | 1.17 | -22.25 | 112.34 | -57.70 | 113.09 | 0.8525 | -404.0 | -345.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
