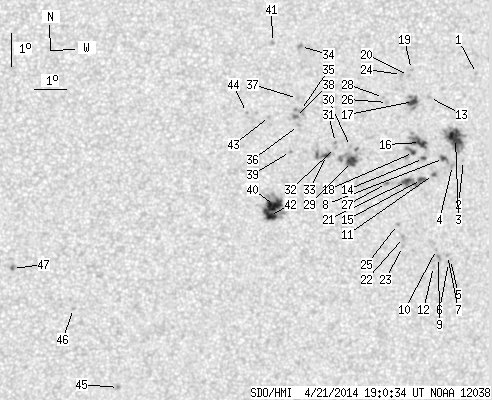

SDO HMI 2014-04-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.95 | 225.51 | 35.30 | 117.02 | -11.07 | 185.68 | 16.19 | 247.91 | 0.2976 | 547.7 | 267.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.70 | -8.27 | 189.01 | 19.52 | 259.58 | 0.3377 | 714.0 | 512.9 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -10.91 | 188.74 | 19.25 | 251.79 | 0.3423 | 855.0 | 641.5 | |
| 16.32 | 34.06 | 8.58 | 17.90 | -10.25 | 188.44 | 18.95 | 253.45 | 0.3349 | 1119.3 | 635.6 | |
| 0.00 | 2.66 | 0.00 | 1.40 | -11.07 | 188.39 | 18.91 | 251.05 | 0.3377 | 1008.0 | 785.6 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -13.92 | 188.54 | 19.06 | 243.42 | 0.3559 | 630.0 | 483.9 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -14.01 | 188.48 | 19.00 | 243.11 | 0.3557 | 738.0 | 609.6 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.80 | 188.43 | 18.95 | 243.61 | 0.3535 | 759.0 | 594.2 | |
| 1.95 | 4.61 | 1.02 | 2.42 | -10.86 | 188.09 | 18.60 | 251.39 | 0.3320 | 1136.9 | 889.8 | |
| 0.00 | 2.40 | 0.00 | 1.27 | -13.87 | 188.14 | 18.66 | 243.11 | 0.3498 | 925.0 | 824.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.63 | 188.06 | 18.57 | 243.65 | 0.3469 | 760.0 | 605.8 | |
| 0.89 | 2.04 | 0.47 | 1.07 | -11.36 | 187.80 | 18.31 | 249.71 | 0.3298 | 901.0 | 682.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.15 | 188.00 | 18.52 | 242.22 | 0.3496 | 701.0 | 559.6 | |
| 0.00 | 1.60 | 0.00 | 0.83 | -9.03 | 187.53 | 18.05 | 256.51 | 0.3160 | 768.0 | 583.5 | |
| 1.06 | 2.31 | 0.56 | 1.21 | -10.88 | 187.44 | 17.96 | 250.80 | 0.3220 | 844.2 | 602.4 | |
| 2.13 | 17.03 | 1.11 | 8.90 | -11.52 | 187.42 | 17.93 | 248.89 | 0.3248 | 987.0 | 759.1 | |
| 6.39 | 16.06 | 3.34 | 8.38 | -10.40 | 187.32 | 17.83 | 252.14 | 0.3178 | 1104.7 | 702.1 | |
| 4.26 | 11.80 | 2.22 | 6.14 | -9.17 | 187.03 | 17.54 | 255.76 | 0.3083 | 1134.5 | 814.0 | |
| 1.33 | 7.63 | 0.69 | 3.98 | -10.71 | 187.11 | 17.62 | 251.02 | 0.3160 | 934.7 | 752.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -8.20 | 186.92 | 17.43 | 258.81 | 0.3036 | 736.0 | 599.8 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -8.39 | 186.83 | 17.34 | 258.16 | 0.3027 | 892.0 | 674.1 | |
| 3.46 | -15.00 | 1.81 | -15.00 | -11.59 | 186.94 | 17.45 | 248.20 | 0.3178 | 1069.7 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.12 | -13.29 | 186.96 | 17.47 | 243.30 | 0.3285 | 904.0 | 786.2 | |
| 0.00 | 1.51 | 0.00 | 0.79 | -13.57 | 186.95 | 17.46 | 242.52 | 0.3302 | 819.0 | 584.8 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -8.36 | 186.61 | 17.12 | 258.12 | 0.2989 | 760.0 | 680.8 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -12.90 | 186.74 | 17.25 | 244.14 | 0.3226 | 925.0 | 720.1 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -9.22 | 186.20 | 16.71 | 255.01 | 0.2952 | 788.0 | 623.6 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -11.67 | 186.30 | 16.81 | 247.29 | 0.3085 | 846.0 | 699.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.07 | 186.06 | 16.58 | 255.40 | 0.2924 | 799.0 | 670.4 | |
| 6.30 | 22.09 | 3.26 | 11.42 | -11.03 | 185.14 | 15.66 | 248.01 | 0.2870 | -909.8 | -513.5 | |
| 0.00 | 1.51 | 0.00 | 0.78 | -10.57 | 185.09 | 15.60 | 249.45 | 0.2836 | -796.0 | -448.5 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -10.46 | 184.61 | 15.12 | 249.29 | 0.2754 | -682.0 | -605.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.61 | 184.61 | 15.13 | 248.78 | 0.2764 | -713.0 | -636.2 | |
| 1.33 | 10.11 | 0.69 | 5.20 | -10.86 | 184.34 | 14.85 | 247.59 | 0.2735 | -1080.9 | -864.7 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -7.59 | 183.39 | 13.90 | 258.95 | 0.2437 | -1013.0 | -867.2 | |
| 0.00 | 5.32 | 0.00 | 2.72 | -9.52 | 183.46 | 13.97 | 251.40 | 0.2524 | -819.0 | -721.2 | |
| 0.00 | 1.69 | 0.00 | 0.86 | -9.97 | 183.41 | 13.93 | 249.63 | 0.2540 | -907.0 | -665.4 | |
| 0.00 | 1.95 | 0.00 | 1.00 | -9.16 | 183.35 | 13.86 | 252.66 | 0.2489 | -692.0 | -553.9 | |
| 0.53 | 2.31 | 0.27 | 1.18 | -9.70 | 183.31 | 13.82 | 250.52 | 0.2509 | -1125.7 | -957.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -10.76 | 183.20 | 13.71 | 246.41 | 0.2552 | 685.0 | 521.7 | |
| 13.40 | 41.52 | 6.87 | 21.30 | -12.41 | 182.77 | 13.28 | 239.90 | 0.2605 | 1220.5 | 492.7 | |
| 0.00 | 1.86 | 0.00 | 0.95 | -7.48 | 182.51 | 13.02 | 258.76 | 0.2288 | -949.0 | -604.8 | |
| 8.16 | -40.00 | 4.19 | -40.00 | -12.72 | 182.63 | 13.14 | 238.61 | 0.2609 | 1055.4 | 999999 | |
| 0.00 | 1.51 | 0.00 | 0.77 | -9.72 | 182.49 | 13.01 | 249.42 | 0.2380 | -727.0 | -575.6 | |
| 0.00 | 0.71 | 0.00 | 0.36 | -9.61 | 181.77 | 12.28 | 248.85 | 0.2259 | -666.0 | -575.1 | |
| 0.00 | 1.60 | 0.00 | 0.82 | -18.05 | 178.09 | 8.61 | 212.24 | 0.2679 | 817.0 | 613.8 | |
| 0.00 | 1.60 | 0.00 | 0.81 | -15.64 | 176.57 | 7.08 | 212.81 | 0.2200 | 838.0 | 561.8 | |
| 0.44 | 2.13 | 0.22 | 1.07 | -14.43 | 174.62 | 5.13 | 208.00 | 0.1854 | -1073.4 | -827.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
