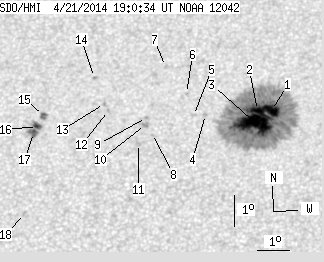

SDO HMI 2014-04-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.30 | 399.99 | 38.95 | 215.39 | 17.78 | 166.84 | -2.65 | 6.43 | 0.3932 | -689.5 | -357.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.69 | 363.18 | 6.84 | 195.44 | 18.06 | 167.72 | -1.77 | 4.27 | 0.3955 | -1147.1 | -436.6 | |
| 8.96 | -1.00 | 4.83 | -1.00 | 18.06 | 167.27 | -2.21 | 5.34 | 0.3962 | -1149.8 | 999999 | |
| 41.69 | -1.00 | 22.41 | -1.00 | 17.64 | 167.22 | -2.27 | 5.59 | 0.3894 | -1421.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.05 | 17.94 | 165.63 | -3.86 | 9.31 | 0.3976 | -613.0 | -338.4 | |
| 0.00 | 1.95 | 0.00 | 1.05 | 17.91 | 165.25 | -4.24 | 10.22 | 0.3982 | -193.0 | -258.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 18.63 | 165.01 | -4.48 | 10.44 | 0.4102 | 653.0 | 503.2 | |
| 0.00 | 1.77 | 0.00 | 0.97 | 19.53 | 164.31 | -5.18 | 11.55 | 0.4264 | -717.0 | -530.9 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 17.33 | 163.96 | -5.53 | 13.57 | 0.3933 | 469.0 | 539.5 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 17.86 | 163.75 | -5.73 | 13.73 | 0.4023 | 785.0 | 663.2 | |
| 0.00 | 3.73 | 0.00 | 2.01 | 17.63 | 163.73 | -5.76 | 13.93 | 0.3988 | 862.0 | 793.1 | |
| 0.00 | 2.31 | 0.00 | 1.24 | 17.01 | 163.53 | -5.96 | 14.81 | 0.3900 | 860.0 | 721.4 | |
| 0.00 | 1.42 | 0.00 | 0.77 | 18.10 | 162.54 | -6.95 | 16.32 | 0.4111 | 834.0 | 678.7 | |
| 0.00 | 1.51 | 0.00 | 0.82 | 18.33 | 162.40 | -7.09 | 16.46 | 0.4152 | 825.0 | 679.3 | |
| 0.00 | 1.69 | 0.00 | 0.92 | 19.19 | 162.04 | -7.45 | 16.61 | 0.4299 | 860.0 | 647.2 | |
| 1.95 | 4.79 | 1.06 | 2.61 | 17.97 | 160.46 | -9.02 | 20.92 | 0.4196 | 912.0 | 698.2 | |
| 3.28 | 11.18 | 1.79 | 6.08 | 17.61 | 160.29 | -9.20 | 21.62 | 0.4153 | 993.4 | 827.9 | |
| 3.73 | -16.00 | 2.02 | -16.00 | 17.42 | 160.17 | -9.32 | 22.05 | 0.4132 | 1043.3 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.04 | 14.80 | 160.01 | -9.48 | 25.18 | 0.3759 | 645.0 | 566.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
