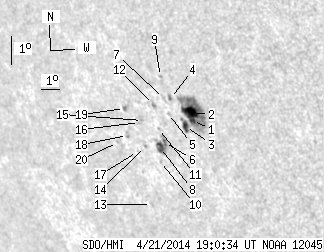

SDO HMI 2014-04-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.40 | 98.91 | 22.70 | 82.03 | -23.43 | 117.34 | -52.15 | 115.55 | 0.8051 | 469.3 | 367.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.55 | 63.07 | 2.90 | 51.32 | -23.41 | 118.24 | -51.25 | 115.73 | 0.7967 | 702.2 | 520.3 | |
| 12.06 | -1.00 | 9.83 | -1.00 | -23.15 | 118.27 | -51.22 | 115.43 | 0.7959 | 927.7 | 999999 | |
| 3.99 | -1.00 | 3.29 | -1.00 | -23.57 | 117.77 | -51.71 | 115.82 | 0.8014 | 510.2 | 999999 | |
| 0.44 | 2.04 | 0.37 | 1.68 | -22.65 | 117.48 | -52.01 | 114.62 | 0.8023 | 496.6 | 394.8 | |
| 0.00 | 1.15 | 0.00 | 0.96 | -23.11 | 117.12 | -52.36 | 115.10 | 0.8066 | 439.0 | 315.4 | |
| 1.60 | 15.44 | 1.36 | 13.19 | -23.99 | 116.39 | -53.10 | 116.02 | 0.8151 | 710.6 | 389.9 | |
| 0.00 | 1.77 | 0.00 | 1.48 | -22.62 | 117.12 | -52.37 | 114.51 | 0.8056 | 311.0 | 230.9 | |
| 5.23 | -6.00 | 4.48 | -6.00 | -24.13 | 116.08 | -53.40 | 116.12 | 0.8182 | 541.2 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.10 | -21.93 | 117.33 | -52.16 | 113.71 | 0.8023 | 470.0 | 314.3 | |
| 0.00 | 1.06 | 0.00 | 0.92 | -24.57 | 115.81 | -53.67 | 116.58 | 0.8215 | 514.0 | 442.2 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -23.54 | 116.33 | -53.16 | 115.45 | 0.8147 | 401.0 | 331.9 | |
| 0.00 | 1.69 | 0.00 | 1.42 | -22.77 | 116.49 | -52.99 | 114.56 | 0.8118 | 458.0 | 310.4 | |
| 0.00 | 1.51 | 0.00 | 1.35 | -25.88 | 114.43 | -55.06 | 117.82 | 0.8361 | 462.0 | 372.2 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -24.05 | 115.29 | -54.19 | 115.84 | 0.8251 | 245.0 | 158.5 | |
| 0.00 | 0.53 | 0.00 | 0.46 | -23.23 | 115.62 | -53.86 | 114.93 | 0.8206 | -346.0 | -299.8 | |
| 0.00 | 1.51 | 0.00 | 1.31 | -23.28 | 115.42 | -54.06 | 114.95 | 0.8225 | -377.0 | -374.4 | |
| 0.00 | 0.62 | 0.00 | 0.55 | -24.17 | 114.76 | -54.73 | 115.88 | 0.8300 | 200.0 | 158.1 | |
| 0.00 | 2.31 | 0.00 | 2.04 | -23.64 | 114.52 | -54.96 | 115.19 | 0.8311 | -552.0 | -530.8 | |
| 0.53 | 2.75 | 0.47 | 2.40 | -22.79 | 114.87 | -54.62 | 114.25 | 0.8266 | -671.3 | -457.6 | |
| 0.00 | 0.44 | 0.00 | 0.40 | -23.81 | 113.83 | -55.66 | 115.27 | 0.8375 | -450.0 | -417.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
