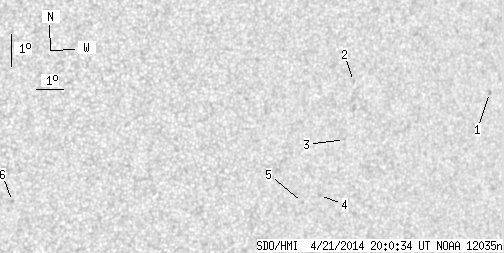

SDO HMI 2014-04-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.72 | 0.00 | 4.73 | -15.87 | 203.55 | 34.62 | 249.07 | 0.5854 | -368.8 | -236.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.60 | 0.00 | 1.05 | -14.00 | 209.68 | 40.75 | 254.47 | 0.6596 | 708.0 | 578.5 | |
| 0.00 | 1.51 | 0.00 | 0.92 | -13.94 | 204.29 | 35.36 | 253.16 | 0.5890 | -534.0 | -467.4 | |
| 0.00 | 1.15 | 0.00 | 0.71 | -15.72 | 204.28 | 35.35 | 250.20 | 0.5941 | -649.0 | -460.9 | |
| 0.00 | 1.42 | 0.00 | 0.87 | -17.48 | 203.69 | 34.75 | 247.07 | 0.5926 | -426.0 | -392.8 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -17.73 | 203.09 | 34.15 | 246.40 | 0.5858 | -595.0 | -492.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -18.12 | 192.64 | 23.70 | 238.64 | 0.4493 | -717.0 | -557.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
