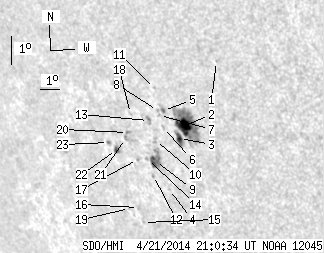

SDO HMI 2014-04-21 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.08 | 112.85 | 24.42 | 91.86 | -23.45 | 117.18 | -51.20 | 115.81 | 0.7961 | 443.2 | 334.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.47 | -21.28 | 120.73 | -47.65 | 113.96 | 0.7559 | -418.0 | -364.1 | |
| 16.68 | 65.57 | 13.29 | 52.21 | -23.16 | 118.24 | -50.13 | 115.71 | 0.7855 | 937.1 | 483.5 | |
| 4.08 | -2.00 | 3.29 | -2.00 | -23.55 | 117.78 | -50.60 | 116.07 | 0.7908 | 492.4 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -25.11 | 116.36 | -52.02 | 117.62 | 0.8077 | 587.0 | 542.3 | |
| 0.62 | 2.57 | 0.50 | 2.08 | -22.63 | 117.44 | -50.94 | 114.84 | 0.7921 | 517.4 | 385.9 | |
| 0.00 | 1.60 | 0.00 | 1.30 | -23.15 | 117.16 | -51.22 | 115.43 | 0.7959 | 403.0 | 290.7 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -22.77 | 117.15 | -51.23 | 114.95 | 0.7951 | 431.0 | 337.9 | |
| 0.00 | 1.24 | 0.00 | 1.01 | -22.61 | 117.13 | -51.25 | 114.75 | 0.7950 | 435.0 | 381.4 | |
| 6.57 | 15.26 | 5.49 | 12.73 | -24.18 | 116.15 | -52.23 | 116.45 | 0.8076 | 622.5 | 553.5 | |
| 0.00 | 2.57 | 0.00 | 2.13 | -23.53 | 116.53 | -51.85 | 115.74 | 0.8027 | 501.0 | 447.0 | |
| 0.00 | 0.98 | 0.00 | 0.79 | -21.91 | 117.33 | -51.05 | 113.94 | 0.7916 | 510.0 | 364.6 | |
| 0.00 | 1.24 | 0.00 | 1.05 | -24.61 | 115.79 | -52.59 | 116.88 | 0.8119 | 400.0 | 404.2 | |
| 0.00 | 3.28 | 0.00 | 2.71 | -22.88 | 116.51 | -51.87 | 114.95 | 0.8015 | 471.0 | 310.8 | |
| 0.00 | 1.60 | 0.00 | 1.34 | -24.09 | 115.77 | -52.61 | 116.25 | 0.8109 | 193.0 | 140.3 | |
| 0.00 | 0.71 | 0.00 | 0.62 | -26.05 | 114.30 | -54.08 | 118.25 | 0.8280 | 284.0 | 205.0 | |
| 0.00 | 2.22 | 0.00 | 1.94 | -25.56 | 114.35 | -54.03 | 117.68 | 0.8267 | 129.0 | 160.5 | |
| 0.00 | 0.89 | 0.00 | 0.76 | -24.06 | 115.24 | -53.14 | 116.09 | 0.8156 | -39.0 | 35.2 | |
| 0.00 | 1.24 | 0.00 | 1.04 | -22.60 | 115.69 | -52.68 | 114.43 | 0.8086 | 151.0 | 151.4 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -25.56 | 113.83 | -54.55 | 117.56 | 0.8311 | 402.0 | 384.3 | |
| 0.00 | 1.77 | 0.00 | 1.51 | -23.18 | 115.21 | -53.17 | 115.02 | 0.8142 | -813.0 | -686.0 | |
| 0.00 | 2.13 | 0.00 | 1.82 | -23.36 | 114.99 | -53.39 | 115.19 | 0.8165 | -759.0 | -620.7 | |
| 1.69 | 3.90 | 1.46 | 3.39 | -23.67 | 114.30 | -54.08 | 115.42 | 0.8233 | -711.3 | -592.8 | |
| 0.44 | 1.77 | 0.39 | 1.55 | -23.42 | 114.00 | -54.38 | 115.06 | 0.8256 | -560.4 | -437.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
