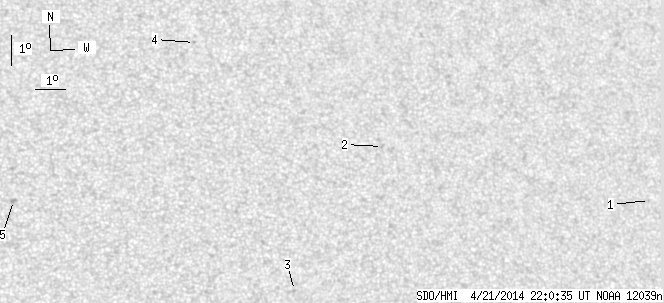

SDO HMI 2014-04-21 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.25 | 0.00 | 4.67 | 16.29 | 185.84 | 18.02 | 322.14 | 0.4744 | -63.0 | 29.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.61 | 15.95 | 199.40 | 31.58 | 304.50 | 0.6132 | -650.0 | -479.5 | |
| 0.00 | 2.04 | 0.00 | 1.19 | 17.32 | 190.17 | 22.35 | 315.90 | 0.5236 | -711.0 | -517.2 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 12.60 | 186.75 | 18.92 | 313.35 | 0.4371 | 817.0 | 606.0 | |
| 0.00 | 1.15 | 0.00 | 0.66 | 20.57 | 184.21 | 16.39 | 328.40 | 0.5061 | -717.0 | -650.4 | |
| 0.00 | 3.02 | 0.00 | 1.62 | 15.27 | 177.90 | 10.08 | 334.01 | 0.3868 | 946.0 | 689.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
