SDO HMI 2014-04-21 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.78 | 0.00 | 4.86 | -10.68 | 143.20 | -24.63 | 105.76 | 0.4239 | 737.5 | 604.6 | |
|
previous
or next observation for the same group /

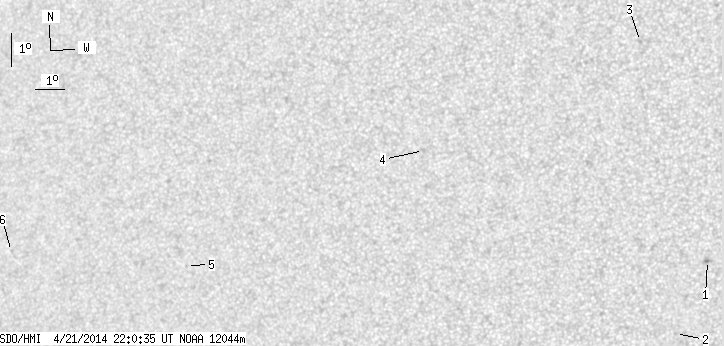

back to the solar disc SDO HMI 2014-04-21 22:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.93 | 0.00 | 1.53 | -12.25 | 150.62 | -17.21 | 114.04 | 0.3180 | 958.0 | 762.6 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -14.44 | 149.41 | -18.42 | 118.67 | 0.3503 | 731.0 | 645.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -5.58 | 148.82 | -19.01 | 92.44 | 0.3259 | 760.0 | 647.1 | |
| 0.00 | 1.95 | 0.00 | 1.08 | -8.61 | 141.50 | -26.32 | 99.20 | 0.4460 | 771.0 | 506.6 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -11.70 | 132.71 | -35.12 | 103.12 | 0.5806 | 574.0 | 434.9 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -10.90 | 125.94 | -41.89 | 100.70 | 0.6695 | 631.0 | 504.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
