SDO HMI 2014-04-21 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.81 | 0.00 | 11.18 | -17.77 | 166.41 | -0.86 | 181.78 | 0.2431 | -663.1 | -547.2 | |
|
previous
or next observation for the same group /

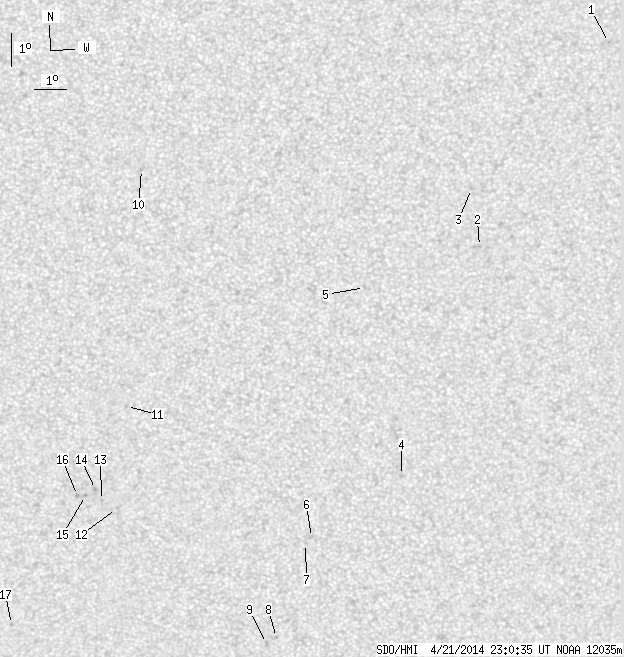

back to the solar disc SDO HMI 2014-04-21 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -5.60 | 177.01 | 9.74 | 266.35 | 0.1694 | 845.0 | 669.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -11.80 | 173.16 | 5.89 | 220.42 | 0.1555 | -822.0 | -627.8 | |
| 0.00 | 1.51 | 0.00 | 0.75 | -10.05 | 172.88 | 5.61 | 227.75 | 0.1306 | -674.0 | -422.9 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -18.83 | 170.86 | 3.59 | 193.97 | 0.2466 | -718.0 | -640.3 | |
| 0.00 | 1.51 | 0.00 | 0.76 | -13.07 | 169.62 | 2.35 | 195.98 | 0.1456 | -631.0 | -491.8 | |
| 0.00 | 2.04 | 0.00 | 1.05 | -20.77 | 168.00 | 0.73 | 182.52 | 0.2722 | -696.0 | -571.4 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -20.96 | 167.81 | 0.54 | 181.83 | 0.2753 | -605.0 | -453.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -23.92 | 166.86 | -0.41 | 178.84 | 0.3248 | -815.0 | -599.8 | |
| 0.00 | 2.22 | 0.00 | 1.16 | -24.11 | 166.53 | -0.74 | 177.92 | 0.3281 | -663.0 | -573.4 | |
| 0.00 | 0.98 | 0.00 | 0.49 | -9.47 | 162.78 | -4.49 | 134.99 | 0.1097 | -755.0 | -610.9 | |
| 0.00 | 0.98 | 0.00 | 0.50 | -16.68 | 162.17 | -5.11 | 157.09 | 0.2200 | -821.0 | -672.0 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -19.83 | 161.75 | -5.53 | 160.47 | 0.2722 | -472.0 | -456.5 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -19.58 | 161.27 | -6.00 | 158.59 | 0.2710 | -882.0 | -696.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -19.24 | 161.09 | -6.18 | 157.50 | 0.2668 | -994.0 | -750.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -19.42 | 160.77 | -6.51 | 156.73 | 0.2718 | -894.0 | -796.2 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -19.42 | 160.51 | -6.76 | 155.92 | 0.2734 | -793.0 | -610.7 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -23.44 | 158.12 | -9.15 | 155.24 | 0.3499 | -882.0 | -802.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
