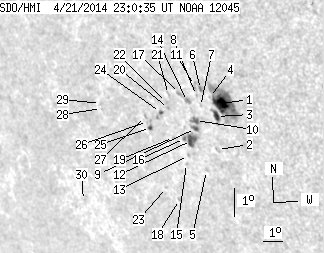

SDO HMI 2014-04-21 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.93 | 127.58 | 23.13 | 102.03 | -23.46 | 116.94 | -50.33 | 116.05 | 0.7878 | 398.6 | 333.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-21 23:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.42 | 68.07 | 9.71 | 53.10 | -23.16 | 118.14 | -49.13 | 115.98 | 0.7756 | 961.6 | 531.0 | |
| 0.00 | 1.86 | 0.00 | 1.49 | -24.59 | 117.24 | -50.03 | 117.51 | 0.7880 | 561.0 | 419.9 | |
| 3.55 | -1.00 | 2.80 | -1.00 | -23.56 | 117.74 | -49.53 | 116.36 | 0.7806 | 538.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -22.94 | 117.70 | -49.57 | 115.58 | 0.7795 | 393.0 | 365.7 | |
| 0.00 | 1.24 | 0.00 | 1.02 | -25.21 | 116.31 | -50.96 | 118.03 | 0.7983 | 575.0 | 450.6 | |
| 0.00 | 1.95 | 0.00 | 1.54 | -22.66 | 117.38 | -49.89 | 115.15 | 0.7820 | 554.0 | 411.8 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -23.19 | 117.11 | -50.16 | 115.74 | 0.7858 | 380.0 | 314.9 | |
| 0.00 | 0.80 | 0.00 | 0.64 | -22.84 | 117.09 | -50.18 | 115.29 | 0.7852 | 384.0 | 327.1 | |
| 1.69 | 9.32 | 1.37 | 7.53 | -23.86 | 116.50 | -50.78 | 116.42 | 0.7933 | 701.3 | 433.5 | |
| 1.95 | -9.00 | 1.57 | -9.00 | -23.61 | 116.63 | -50.64 | 116.14 | 0.7914 | 687.8 | 999999 | |
| 0.00 | 3.02 | 0.00 | 2.40 | -22.52 | 117.15 | -50.13 | 114.91 | 0.7839 | 410.0 | 330.9 | |
| 6.57 | 13.13 | 5.37 | 10.75 | -24.22 | 116.09 | -51.19 | 116.76 | 0.7980 | 627.1 | 399.9 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -24.68 | 115.66 | -51.61 | 117.21 | 0.8031 | 535.0 | 473.8 | |
| 0.00 | 3.28 | 0.00 | 2.64 | -22.99 | 116.54 | -50.73 | 115.35 | 0.7909 | 441.0 | 315.5 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -24.92 | 115.41 | -51.86 | 117.44 | 0.8059 | 458.0 | 407.7 | |
| 0.62 | -12.00 | 0.51 | -12.00 | -24.14 | 115.76 | -51.51 | 116.57 | 0.8009 | 233.3 | 999999 | |
| 0.00 | 2.40 | 0.00 | 1.94 | -22.72 | 116.27 | -51.00 | 114.95 | 0.7929 | 289.0 | 193.3 | |
| 0.00 | 1.24 | 0.00 | 1.06 | -26.03 | 114.33 | -52.94 | 118.50 | 0.8181 | 378.0 | 308.1 | |
| 0.00 | 1.15 | 0.00 | 0.96 | -24.07 | 115.21 | -52.06 | 116.35 | 0.8058 | 276.0 | 206.2 | |
| 0.00 | 1.06 | 0.00 | 0.88 | -23.15 | 115.46 | -51.81 | 115.29 | 0.8015 | -585.0 | -534.8 | |
| 0.00 | 1.77 | 0.00 | 1.45 | -22.71 | 115.70 | -51.58 | 114.81 | 0.7984 | 308.0 | 159.6 | |
| 0.00 | 1.15 | 0.00 | 0.95 | -22.95 | 115.46 | -51.81 | 115.05 | 0.8011 | -371.0 | -304.5 | |
| 0.00 | 0.71 | 0.00 | 0.61 | -25.60 | 113.88 | -53.39 | 117.88 | 0.8212 | 373.0 | 349.8 | |
| 0.89 | 3.64 | 0.74 | 3.04 | -23.24 | 114.98 | -52.29 | 115.29 | 0.8062 | -753.5 | -573.4 | |
| 1.24 | 3.55 | 1.06 | 3.01 | -23.67 | 114.19 | -53.09 | 115.64 | 0.8144 | -729.6 | -638.4 | |
| 0.00 | 1.51 | 0.00 | 1.28 | -23.47 | 114.14 | -53.14 | 115.39 | 0.8145 | -659.0 | -588.3 | |
| 0.00 | 1.06 | 0.00 | 0.90 | -23.31 | 114.12 | -53.15 | 115.19 | 0.8143 | -590.0 | -546.4 | |
| 0.00 | 0.53 | 0.00 | 0.47 | -22.90 | 111.89 | -55.39 | 114.24 | 0.8336 | -506.0 | -435.2 | |
| 0.00 | 1.42 | 0.00 | 1.26 | -22.74 | 111.93 | -55.35 | 114.06 | 0.8330 | -289.0 | -260.5 | |
| 0.00 | 0.35 | 0.00 | 0.35 | -25.67 | 108.85 | -58.43 | 116.92 | 0.8632 | -366.0 | -343.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
