SDO HMI 2014-04-22 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.13 | 468.86 | 106.39 | 447.37 | -13.38 | 225.55 | 58.83 | 257.30 | 0.8543 | 229.5 | 168.9 | |
|
previous
or next observation for the same group /

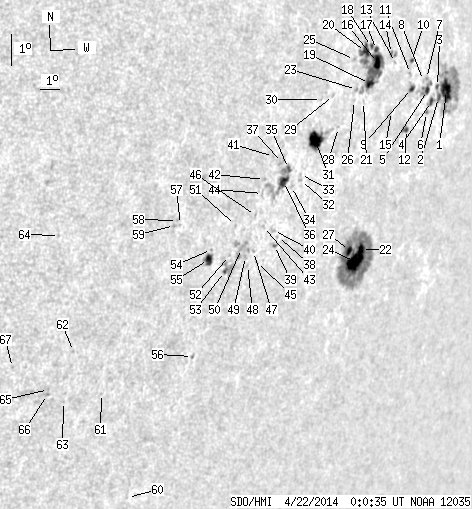

back to the solar disc SDO HMI 2014-04-22 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.42 | 87.78 | 17.79 | 95.26 | -10.73 | 229.96 | 63.24 | 260.52 | 0.8913 | 484.3 | 77.9 | |
| 2.22 | -1.00 | 2.37 | -1.00 | -10.98 | 229.51 | 62.79 | 260.24 | 0.8878 | 471.3 | 999999 | |
| 0.98 | -1.00 | 1.04 | -1.00 | -10.66 | 229.32 | 62.60 | 260.60 | 0.8863 | 565.6 | 999999 | |
| 2.40 | -1.00 | 2.52 | -1.00 | -11.14 | 229.10 | 62.38 | 260.06 | 0.8845 | 396.9 | 999999 | |
| 2.66 | 11.80 | 2.77 | 12.23 | -10.83 | 228.72 | 62.00 | 260.41 | 0.8814 | 594.3 | 536.3 | |
| 0.44 | 1.42 | 0.46 | 1.49 | -11.49 | 228.90 | 62.18 | 259.66 | 0.8829 | 526.2 | 450.5 | |
| 0.00 | 1.07 | 0.00 | 1.10 | -10.47 | 228.53 | 61.81 | 260.81 | 0.8799 | 609.0 | 583.6 | |
| 0.00 | 1.33 | 0.00 | 1.37 | -10.55 | 228.36 | 61.64 | 260.73 | 0.8785 | 521.0 | 443.7 | |
| 2.49 | 4.88 | 2.51 | 4.92 | -10.84 | 227.69 | 60.97 | 260.39 | 0.8729 | 621.1 | 557.4 | |
| 0.98 | 2.04 | 0.98 | 2.04 | -10.01 | 227.41 | 60.69 | 261.35 | 0.8706 | 540.7 | 498.3 | |
| 0.00 | 1.24 | 0.00 | 1.24 | -10.40 | 227.47 | 60.75 | 260.90 | 0.8711 | 680.0 | 580.4 | |
| 1.42 | 4.35 | 1.44 | 4.39 | -12.09 | 227.82 | 61.10 | 258.96 | 0.8742 | -251.1 | -103.8 | |
| 0.00 | 0.98 | 0.00 | 0.95 | -10.14 | 226.46 | 59.74 | 261.20 | 0.8624 | -130.0 | -137.3 | |
| 0.44 | 4.44 | 0.43 | 4.29 | -9.89 | 226.14 | 59.42 | 261.49 | 0.8596 | -362.0 | -291.6 | |
| 0.00 | 0.71 | 0.00 | 0.70 | -11.62 | 226.70 | 59.98 | 259.48 | 0.8646 | -239.0 | -238.9 | |
| 7.10 | 73.94 | 6.69 | 69.12 | -10.22 | 225.40 | 58.68 | 261.10 | 0.8530 | 527.0 | 276.7 | |
| 1.78 | -16.00 | 1.67 | -16.00 | -9.84 | 225.23 | 58.51 | 261.55 | 0.8515 | 243.4 | 999999 | |
| 1.24 | -16.00 | 1.16 | -16.00 | -9.77 | 224.91 | 58.19 | 261.63 | 0.8486 | 369.9 | 999999 | |
| 4.35 | -16.00 | 4.07 | -16.00 | -10.88 | 225.12 | 58.40 | 260.32 | 0.8506 | -155.3 | 999999 | |
| 7.19 | -16.00 | 6.63 | -16.00 | -9.94 | 224.61 | 57.89 | 261.42 | 0.8459 | 646.7 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.25 | -11.45 | 224.95 | 58.23 | 259.65 | 0.8491 | -516.0 | -508.0 | |
| 4.62 | 137.13 | 4.53 | 133.93 | -15.89 | 226.63 | 59.91 | 254.54 | 0.8655 | 529.2 | 170.0 | |
| 0.00 | 1.51 | 0.00 | 1.39 | -11.12 | 224.44 | 57.72 | 260.03 | 0.8444 | 196.0 | 253.1 | |
| 19.08 | -22.00 | 18.64 | -22.00 | -16.28 | 226.39 | 59.67 | 254.07 | 0.8636 | 593.4 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.89 | -10.23 | 224.06 | 57.34 | 261.08 | 0.8408 | 622.0 | 558.9 | |
| 0.00 | 0.71 | 0.00 | 0.65 | -11.45 | 224.43 | 57.71 | 259.63 | 0.8444 | 199.0 | 220.4 | |
| 3.73 | -22.00 | 3.59 | -22.00 | -15.97 | 225.93 | 59.21 | 254.39 | 0.8595 | 928.0 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.80 | -12.33 | 223.79 | 57.07 | 258.57 | 0.8387 | -184.0 | -97.6 | |
| 0.00 | 1.24 | 0.00 | 1.11 | -11.39 | 223.21 | 56.49 | 259.67 | 0.8330 | -175.0 | -80.5 | |
| 0.00 | 0.44 | 0.00 | 0.39 | -11.55 | 222.59 | 55.87 | 259.45 | 0.8271 | 548.0 | 496.0 | |
| 16.86 | 27.25 | 14.82 | 24.02 | -12.81 | 222.66 | 55.94 | 257.93 | 0.8282 | -373.3 | 122.7 | |
| 0.00 | 1.07 | 0.00 | 0.93 | -14.07 | 222.27 | 55.55 | 256.38 | 0.8252 | 491.0 | 357.0 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -13.89 | 222.20 | 55.48 | 256.60 | 0.8244 | 360.0 | 329.2 | |
| 0.00 | 1.60 | 0.00 | 1.38 | -14.28 | 221.85 | 55.13 | 256.09 | 0.8213 | 239.0 | 256.5 | |
| 1.42 | 30.89 | 1.22 | 26.26 | -13.75 | 221.50 | 54.78 | 256.71 | 0.8176 | 719.8 | 425.8 | |
| 6.30 | -35.00 | 5.38 | -35.00 | -14.16 | 221.37 | 54.65 | 256.20 | 0.8166 | 624.6 | 999999 | |
| 0.00 | 2.22 | 0.00 | 1.88 | -13.59 | 221.12 | 54.40 | 256.88 | 0.8137 | 534.0 | 506.4 | |
| 0.00 | 1.24 | 0.00 | 1.07 | -15.84 | 221.69 | 54.97 | 254.18 | 0.8209 | 328.0 | 222.1 | |
| 0.53 | 1.86 | 0.46 | 1.61 | -16.12 | 221.64 | 54.92 | 253.83 | 0.8207 | 447.8 | 351.3 | |
| 0.00 | 2.40 | 0.00 | 2.05 | -15.67 | 221.40 | 54.68 | 254.35 | 0.8180 | 503.0 | 468.3 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -13.44 | 220.60 | 53.87 | 257.02 | 0.8084 | -209.0 | -147.9 | |
| 0.00 | 1.69 | 0.00 | 1.41 | -14.17 | 220.36 | 53.64 | 256.11 | 0.8066 | -496.0 | -383.1 | |
| 0.00 | 0.71 | 0.00 | 0.60 | -15.59 | 220.83 | 54.11 | 254.40 | 0.8124 | 685.0 | 559.9 | |
| 0.00 | 2.04 | 0.00 | 1.71 | -14.60 | 220.41 | 53.69 | 255.58 | 0.8074 | -285.0 | -274.0 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -16.70 | 220.90 | 54.18 | 253.04 | 0.8141 | 421.0 | 324.8 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -15.29 | 220.29 | 53.57 | 254.71 | 0.8068 | -382.0 | -347.8 | |
| 0.00 | 1.15 | 0.00 | 0.97 | -16.38 | 220.60 | 53.88 | 253.40 | 0.8109 | 605.0 | 551.8 | |
| 0.00 | 0.89 | 0.00 | 0.75 | -16.83 | 220.46 | 53.74 | 252.83 | 0.8100 | 492.0 | 419.8 | |
| 0.00 | 1.95 | 0.00 | 1.63 | -16.56 | 220.25 | 53.53 | 253.13 | 0.8076 | 465.0 | 487.7 | |
| 0.00 | 14.56 | 0.00 | 12.08 | -16.33 | 219.94 | 53.22 | 253.38 | 0.8044 | 227.0 | 234.5 | |
| 0.00 | 0.98 | 0.00 | 0.80 | -15.66 | 219.37 | 52.65 | 254.15 | 0.7980 | -290.0 | -355.3 | |
| 0.00 | 0.62 | 0.00 | 0.51 | -16.59 | 219.41 | 52.69 | 252.99 | 0.7994 | -368.0 | -342.3 | |
| 0.89 | 11.80 | 0.73 | 9.72 | -17.09 | 219.35 | 52.63 | 252.36 | 0.7994 | -200.9 | 55.7 | |
| 0.00 | 0.98 | 0.00 | 0.78 | -16.46 | 218.44 | 51.72 | 253.01 | 0.7894 | -380.0 | -388.7 | |
| 5.59 | 8.25 | 4.49 | 6.63 | -16.78 | 218.41 | 51.69 | 252.61 | 0.7894 | -633.3 | -445.6 | |
| 0.00 | 1.78 | 0.00 | 1.45 | -19.79 | 218.85 | 52.13 | 248.92 | 0.7983 | -347.0 | -234.6 | |
| 0.00 | 0.53 | 0.00 | 0.41 | -15.81 | 216.66 | 49.94 | 253.60 | 0.7699 | -525.0 | -439.8 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -15.69 | 216.47 | 49.75 | 253.72 | 0.7678 | -598.0 | -529.0 | |
| 0.00 | 1.24 | 0.00 | 0.96 | -15.86 | 216.38 | 49.66 | 253.49 | 0.7670 | -704.0 | -601.5 | |
| 0.00 | 0.36 | 0.00 | 0.29 | -24.37 | 217.77 | 51.05 | 243.03 | 0.7971 | -445.0 | -377.5 | |
| 0.00 | 0.71 | 0.00 | 0.54 | -21.21 | 214.89 | 48.17 | 246.25 | 0.7612 | -448.0 | -398.1 | |
| 0.00 | 1.07 | 0.00 | 0.78 | -20.00 | 213.07 | 46.35 | 247.36 | 0.7389 | -664.0 | -565.9 | |
| 0.00 | 0.89 | 0.00 | 0.66 | -21.57 | 213.22 | 46.50 | 245.33 | 0.7447 | -447.0 | -439.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -16.48 | 211.25 | 44.53 | 251.70 | 0.7106 | -397.0 | -358.5 | |
| 0.00 | 0.98 | 0.00 | 0.71 | -21.24 | 212.39 | 45.67 | 245.52 | 0.7348 | -539.0 | -405.5 | |
| 0.00 | 1.51 | 0.00 | 1.10 | -21.40 | 212.40 | 45.68 | 245.32 | 0.7354 | -525.0 | -422.7 | |
| 0.00 | 1.07 | 0.00 | 0.75 | -20.65 | 210.52 | 43.80 | 245.74 | 0.7127 | -585.0 | -472.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
