SDO HMI 2014-04-22 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.62 | 222.29 | 39.92 | 117.61 | -11.17 | 186.43 | 19.71 | 251.16 | 0.3517 | 450.8 | 316.9 | |
|
previous
or next observation for the same group /

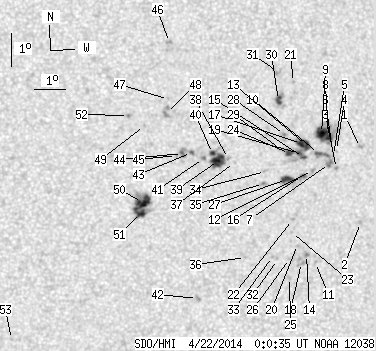

back to the solar disc SDO HMI 2014-04-22 00:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.69 | 0.00 | 0.91 | -10.51 | 189.73 | 23.01 | 255.14 | 0.3993 | 625.0 | 600.3 | |
| 0.00 | 1.78 | 0.00 | 0.96 | -12.78 | 189.93 | 23.21 | 249.80 | 0.4112 | 703.0 | 493.1 | |
| 0.00 | 1.60 | 0.00 | 0.86 | -11.17 | 188.99 | 22.27 | 253.10 | 0.3902 | 705.0 | 585.3 | |
| 0.00 | 0.89 | 0.00 | 0.48 | -10.63 | 188.94 | 22.22 | 254.44 | 0.3875 | 390.0 | 266.3 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -10.78 | 188.86 | 22.14 | 254.00 | 0.3867 | 561.0 | 456.1 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -10.66 | 188.81 | 22.09 | 254.28 | 0.3856 | 601.0 | 480.9 | |
| 0.00 | 4.26 | 0.00 | 2.29 | -11.03 | 188.74 | 22.02 | 253.31 | 0.3859 | 966.0 | 788.4 | |
| 3.73 | 36.04 | 2.00 | 19.29 | -10.24 | 188.65 | 21.93 | 255.26 | 0.3817 | 907.4 | 427.2 | |
| 10.83 | -8.00 | 5.79 | -8.00 | -10.13 | 188.41 | 21.69 | 255.43 | 0.3776 | 1104.5 | 999999 | |
| 1.69 | 7.37 | 0.90 | 3.94 | -10.74 | 188.36 | 21.64 | 253.83 | 0.3788 | 977.4 | 829.4 | |
| 0.00 | 1.42 | 0.00 | 0.77 | -14.05 | 188.54 | 21.82 | 245.76 | 0.3972 | 645.0 | 477.6 | |
| 0.00 | 1.86 | 0.00 | 1.00 | -11.26 | 188.20 | 21.48 | 252.39 | 0.3784 | 874.0 | 673.3 | |
| 4.08 | 33.28 | 2.18 | 17.72 | -10.51 | 187.94 | 21.22 | 254.18 | 0.3716 | 981.0 | 520.9 | |
| 0.00 | 1.78 | 0.00 | 0.95 | -13.81 | 188.22 | 21.50 | 246.04 | 0.3911 | 796.0 | 694.8 | |
| 1.51 | -13.00 | 0.80 | -13.00 | -10.87 | 187.87 | 21.15 | 253.17 | 0.3718 | 696.4 | 999999 | |
| 1.24 | 4.26 | 0.66 | 2.27 | -11.42 | 187.88 | 21.16 | 251.76 | 0.3742 | 865.5 | 684.6 | |
| 4.88 | -13.00 | 2.60 | -13.00 | -10.45 | 187.78 | 21.06 | 254.23 | 0.3687 | 1052.9 | 999999 | |
| 0.00 | 6.75 | 0.00 | 3.63 | -14.06 | 188.08 | 21.36 | 245.31 | 0.3905 | 448.0 | 580.9 | |
| 2.22 | -13.00 | 1.18 | -13.00 | -10.75 | 187.73 | 21.01 | 253.39 | 0.3692 | 833.4 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -13.52 | 187.89 | 21.17 | 246.47 | 0.3847 | 477.0 | 553.5 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -8.62 | 187.40 | 20.68 | 259.02 | 0.3572 | 766.0 | 621.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -12.76 | 187.66 | 20.94 | 248.15 | 0.3771 | 758.0 | 611.6 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -13.16 | 187.66 | 20.94 | 247.16 | 0.3792 | 708.0 | 594.9 | |
| 3.02 | -13.00 | 1.60 | -13.00 | -10.76 | 187.40 | 20.68 | 253.16 | 0.3641 | 1020.3 | 999999 | |
| 0.00 | 2.13 | 0.00 | 1.14 | -14.53 | 187.72 | 21.00 | 243.86 | 0.3881 | 723.0 | 529.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | -13.95 | 187.67 | 20.95 | 245.21 | 0.3838 | 879.0 | 684.9 | |
| 5.86 | 9.85 | 3.12 | 5.24 | -11.55 | 187.36 | 20.64 | 251.03 | 0.3668 | 950.5 | 636.6 | |
| 0.00 | 1.07 | 0.00 | 0.56 | -10.19 | 187.20 | 20.48 | 254.57 | 0.3588 | 1064.0 | 886.7 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -10.65 | 187.10 | 20.38 | 253.26 | 0.3590 | 479.0 | 406.7 | |
| 3.28 | 7.99 | 1.74 | 4.23 | -9.17 | 186.94 | 20.22 | 257.26 | 0.3514 | 1088.1 | 759.7 | |
| 0.00 | 2.84 | 0.00 | 1.50 | -8.33 | 186.90 | 20.18 | 259.63 | 0.3484 | 777.0 | 658.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -13.99 | 187.27 | 20.55 | 244.73 | 0.3783 | 653.0 | 539.2 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -13.91 | 187.10 | 20.38 | 244.78 | 0.3752 | 668.0 | 543.4 | |
| 0.00 | 1.60 | 0.00 | 0.85 | -11.33 | 186.66 | 19.94 | 251.10 | 0.3550 | -513.0 | -459.3 | |
| 0.00 | 2.93 | 0.00 | 1.55 | -11.70 | 186.62 | 19.90 | 250.08 | 0.3561 | 868.0 | 597.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.96 | 186.21 | 19.49 | 243.75 | 0.3626 | 738.0 | 628.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -11.09 | 185.63 | 18.91 | 250.96 | 0.3379 | -413.0 | -328.1 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -10.97 | 185.43 | 18.71 | 251.13 | 0.3343 | -327.0 | -255.0 | |
| 11.54 | 19.08 | 6.05 | 10.00 | -11.04 | 185.11 | 18.39 | 250.66 | 0.3296 | -873.7 | -622.1 | |
| 1.86 | -39.00 | 0.98 | -39.00 | -10.83 | 184.90 | 18.18 | 251.09 | 0.3254 | -911.3 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.35 | -10.99 | 184.62 | 17.90 | 250.37 | 0.3218 | -994.0 | -746.2 | |
| 0.00 | 2.57 | 0.00 | 1.36 | -15.25 | 184.74 | 18.02 | 238.74 | 0.3507 | 846.0 | 763.6 | |
| 0.62 | 7.99 | 0.32 | 4.16 | -10.82 | 184.23 | 17.51 | 250.53 | 0.3148 | -1024.6 | -811.5 | |
| 0.89 | -43.00 | 0.46 | -43.00 | -10.86 | 183.94 | 17.22 | 250.15 | 0.3105 | -1066.0 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | -10.92 | 183.75 | 17.03 | 249.76 | 0.3078 | -703.0 | -647.3 | |
| 0.00 | 2.40 | 0.00 | 1.24 | -7.52 | 183.36 | 16.64 | 260.68 | 0.2890 | -865.0 | -670.1 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -9.24 | 183.41 | 16.68 | 254.88 | 0.2949 | -635.0 | -528.0 | |
| 0.00 | 5.95 | 0.00 | 3.08 | -9.63 | 183.36 | 16.64 | 253.54 | 0.2957 | -810.0 | -798.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -10.04 | 182.68 | 15.96 | 251.57 | 0.2867 | -816.0 | -671.1 | |
| 12.16 | 32.04 | 6.31 | 16.64 | -12.37 | 182.75 | 16.03 | 244.14 | 0.3010 | 1150.2 | 617.1 | |
| 6.21 | -50.00 | 3.23 | -50.00 | -12.68 | 182.70 | 15.98 | 243.15 | 0.3024 | 933.1 | 999999 | |
| 0.00 | 1.69 | 0.00 | 0.87 | -9.75 | 182.16 | 15.44 | 252.06 | 0.2770 | -982.0 | -785.5 | |
| 0.00 | 0.89 | 0.00 | 0.46 | -16.64 | 178.81 | 12.09 | 224.72 | 0.2865 | 711.0 | 581.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
