SDO HMI 2014-04-22 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.92 | 436.78 | 109.50 | 424.54 | -13.33 | 225.67 | 59.50 | 257.39 | 0.8601 | 233.3 | 173.2 | |
|
previous
or next observation for the same group /

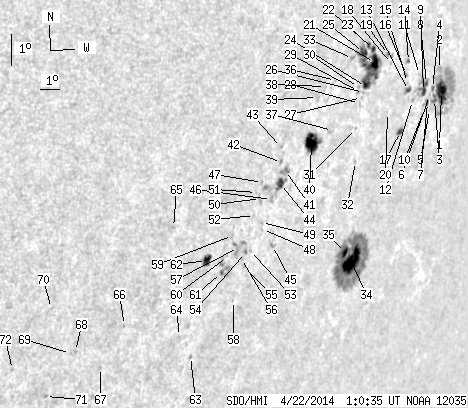

back to the solar disc SDO HMI 2014-04-22 01:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.75 | 70.66 | 19.61 | 78.45 | -10.72 | 229.96 | 63.79 | 260.53 | 0.8956 | 462.5 | 26.5 | |
| 0.00 | 4.26 | 0.00 | 4.64 | -10.08 | 229.59 | 63.42 | 261.25 | 0.8927 | 243.0 | 230.2 | |
| 2.57 | -1.00 | 2.80 | -1.00 | -11.00 | 229.58 | 63.41 | 260.22 | 0.8927 | 457.9 | 999999 | |
| 0.80 | -1.00 | 0.86 | -1.00 | -10.68 | 229.32 | 63.15 | 260.58 | 0.8907 | 583.4 | 999999 | |
| 0.00 | 1.51 | 0.00 | 1.63 | -11.32 | 229.36 | 63.19 | 259.86 | 0.8910 | 248.0 | 229.7 | |
| 0.00 | 0.80 | 0.00 | 0.86 | -10.90 | 229.20 | 63.03 | 260.33 | 0.8897 | 282.0 | 319.0 | |
| 1.42 | 3.64 | 1.53 | 3.90 | -11.12 | 229.15 | 62.98 | 260.08 | 0.8893 | 481.7 | 439.2 | |
| 2.04 | 15.36 | 2.17 | 16.23 | -10.56 | 228.87 | 62.70 | 260.71 | 0.8871 | 577.1 | 562.5 | |
| 3.20 | -8.00 | 3.39 | -8.00 | -10.81 | 228.76 | 62.59 | 260.43 | 0.8862 | 601.2 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.38 | -11.41 | 228.99 | 62.82 | 259.75 | 0.8880 | 324.0 | 338.0 | |
| 0.00 | 0.80 | 0.00 | 0.84 | -10.33 | 228.32 | 62.15 | 260.98 | 0.8827 | 426.0 | 370.2 | |
| 0.00 | 1.42 | 0.00 | 1.48 | -11.14 | 228.15 | 61.98 | 260.06 | 0.8813 | 536.0 | 509.0 | |
| 1.86 | 3.55 | 1.92 | 3.65 | -10.86 | 227.78 | 61.62 | 260.37 | 0.8783 | 657.6 | 547.8 | |
| 0.80 | 1.69 | 0.81 | 1.72 | -9.99 | 227.49 | 61.32 | 261.36 | 0.8759 | 536.3 | 398.2 | |
| 0.00 | 0.89 | 0.00 | 0.91 | -10.62 | 227.64 | 61.47 | 260.64 | 0.8771 | 641.0 | 599.5 | |
| 0.00 | 1.33 | 0.00 | 1.36 | -10.39 | 227.49 | 61.33 | 260.91 | 0.8759 | 592.0 | 534.9 | |
| 2.66 | 4.17 | 2.73 | 4.28 | -12.12 | 227.74 | 61.57 | 258.94 | 0.8780 | -248.4 | -120.0 | |
| 0.00 | 0.89 | 0.00 | 0.88 | -10.13 | 226.46 | 60.29 | 261.21 | 0.8672 | -76.0 | -115.8 | |
| 0.44 | 3.55 | 0.43 | 3.49 | -9.88 | 226.20 | 60.03 | 261.50 | 0.8649 | -334.2 | -278.5 | |
| 0.00 | 0.27 | 0.00 | 0.26 | -11.61 | 226.71 | 60.54 | 259.50 | 0.8694 | -170.0 | -129.0 | |
| 8.79 | 67.47 | 8.43 | 64.20 | -10.18 | 225.43 | 59.26 | 261.15 | 0.8582 | 495.2 | 357.4 | |
| 2.22 | -21.00 | 2.12 | -21.00 | -9.79 | 225.26 | 59.09 | 261.60 | 0.8567 | 231.8 | 999999 | |
| 1.69 | -21.00 | 1.60 | -21.00 | -9.70 | 224.93 | 58.76 | 261.71 | 0.8538 | 401.7 | 999999 | |
| 2.57 | -21.00 | 2.45 | -21.00 | -10.93 | 225.13 | 58.96 | 260.26 | 0.8556 | -252.4 | 999999 | |
| 5.33 | -21.00 | 5.00 | -21.00 | -9.93 | 224.70 | 58.53 | 261.44 | 0.8517 | 696.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -11.12 | 225.07 | 58.90 | 260.04 | 0.8551 | -420.0 | -373.1 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -11.28 | 225.00 | 58.83 | 259.85 | 0.8545 | -386.0 | -397.5 | |
| 0.00 | 0.98 | 0.00 | 0.92 | -11.47 | 224.94 | 58.77 | 259.63 | 0.8540 | -384.0 | -400.2 | |
| 0.00 | 1.60 | 0.00 | 1.50 | -11.11 | 224.76 | 58.60 | 260.04 | 0.8524 | -166.0 | -238.9 | |
| 0.00 | 1.15 | 0.00 | 1.09 | -10.99 | 224.73 | 58.56 | 260.18 | 0.8520 | -290.0 | -223.5 | |
| 0.00 | 0.71 | 0.00 | 0.67 | -12.23 | 225.02 | 58.86 | 258.74 | 0.8549 | 517.0 | 476.9 | |
| 0.00 | 1.07 | 0.00 | 1.02 | -13.22 | 225.34 | 59.17 | 257.59 | 0.8580 | 240.0 | 181.1 | |
| 0.00 | 2.04 | 0.00 | 1.89 | -10.15 | 224.12 | 57.95 | 261.17 | 0.8464 | 710.0 | 616.7 | |
| 23.52 | 130.41 | 23.37 | 129.47 | -16.23 | 226.45 | 60.28 | 254.16 | 0.8687 | 574.6 | 167.6 | |
| 4.08 | -34.00 | 3.99 | -34.00 | -15.99 | 225.95 | 59.78 | 254.41 | 0.8644 | 911.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -10.88 | 223.35 | 57.19 | 260.29 | 0.8394 | 303.0 | 369.7 | |
| 0.00 | 0.89 | 0.00 | 0.81 | -12.39 | 223.67 | 57.50 | 258.51 | 0.8427 | -206.0 | -261.1 | |
| 0.00 | 0.27 | 0.00 | 0.24 | -11.10 | 222.85 | 56.68 | 260.02 | 0.8348 | 159.0 | 222.7 | |
| 0.00 | 2.84 | 0.00 | 2.52 | -11.46 | 222.51 | 56.34 | 259.57 | 0.8316 | 320.0 | 265.7 | |
| 19.17 | 24.86 | 17.09 | 22.16 | -12.83 | 222.62 | 56.45 | 257.93 | 0.8331 | -316.0 | 78.3 | |
| 0.00 | 6.39 | 0.00 | 5.54 | -13.77 | 221.50 | 55.33 | 256.72 | 0.8230 | 833.0 | 651.4 | |
| 0.00 | 1.33 | 0.00 | 1.15 | -13.55 | 221.21 | 55.04 | 256.97 | 0.8199 | 701.0 | 658.5 | |
| 0.00 | 1.07 | 0.00 | 0.91 | -13.10 | 221.05 | 54.88 | 257.52 | 0.8182 | 529.0 | 459.4 | |
| 4.53 | 14.20 | 3.92 | 12.23 | -14.18 | 221.38 | 55.21 | 256.21 | 0.8220 | 647.4 | 400.5 | |
| 0.00 | 2.75 | 0.00 | 2.41 | -16.08 | 221.68 | 55.51 | 253.94 | 0.8263 | 485.0 | 346.3 | |
| 0.00 | 2.66 | 0.00 | 2.29 | -14.70 | 221.07 | 54.91 | 255.56 | 0.8194 | 455.0 | 415.3 | |
| 0.00 | 1.15 | 0.00 | 0.98 | -14.22 | 220.41 | 54.25 | 256.09 | 0.8126 | -414.0 | -324.5 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -15.64 | 220.94 | 54.77 | 254.40 | 0.8189 | 607.0 | 546.0 | |
| 0.00 | 1.07 | 0.00 | 0.91 | -15.43 | 220.81 | 54.64 | 254.64 | 0.8174 | 532.0 | 529.2 | |
| 0.00 | 3.55 | 0.00 | 3.01 | -14.71 | 220.48 | 54.31 | 255.49 | 0.8137 | -459.0 | -322.9 | |
| 0.00 | 0.27 | 0.00 | 0.22 | -14.54 | 220.21 | 54.04 | 255.67 | 0.8108 | -516.0 | -464.0 | |
| 0.00 | 0.62 | 0.00 | 0.53 | -15.24 | 220.36 | 54.19 | 254.83 | 0.8129 | -282.0 | -277.0 | |
| 0.00 | 0.98 | 0.00 | 0.83 | -16.31 | 220.56 | 54.40 | 253.53 | 0.8159 | 531.0 | 492.8 | |
| 0.00 | 1.51 | 0.00 | 1.28 | -16.39 | 220.32 | 54.16 | 253.41 | 0.8136 | 698.0 | 613.9 | |
| 0.00 | 1.86 | 0.00 | 1.58 | -16.82 | 220.40 | 54.23 | 252.89 | 0.8148 | 187.0 | 289.8 | |
| 0.00 | 1.60 | 0.00 | 1.35 | -16.59 | 220.19 | 54.02 | 253.15 | 0.8125 | 435.0 | 439.8 | |
| 0.00 | 10.03 | 0.00 | 8.42 | -16.27 | 219.90 | 53.73 | 253.52 | 0.8093 | 163.0 | 216.8 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -17.89 | 220.32 | 54.15 | 251.58 | 0.8152 | 535.0 | 475.3 | |
| 0.00 | 2.31 | 0.00 | 1.92 | -15.93 | 219.45 | 53.28 | 253.88 | 0.8045 | -254.0 | -355.3 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -16.58 | 219.44 | 53.27 | 253.07 | 0.8051 | -316.0 | -283.3 | |
| 0.71 | 10.92 | 0.59 | 9.08 | -17.08 | 219.33 | 53.16 | 252.43 | 0.8046 | -409.4 | -79.2 | |
| 5.77 | 8.61 | 4.69 | 7.00 | -16.77 | 218.42 | 52.25 | 252.70 | 0.7952 | -599.4 | -386.9 | |
| 0.00 | 1.24 | 0.00 | 1.03 | -19.75 | 218.86 | 52.69 | 249.06 | 0.8037 | -298.0 | -237.4 | |
| 0.00 | 0.80 | 0.00 | 0.65 | -19.18 | 218.02 | 51.85 | 249.63 | 0.7946 | -326.0 | -234.6 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -15.88 | 216.43 | 50.26 | 253.55 | 0.7734 | -685.0 | -555.1 | |
| 0.00 | 0.89 | 0.00 | 0.68 | -19.01 | 215.18 | 49.01 | 249.28 | 0.7653 | -555.0 | -515.3 | |
| 0.00 | 1.42 | 0.00 | 1.08 | -20.38 | 214.57 | 48.40 | 247.38 | 0.7617 | -417.0 | -346.7 | |
| 0.00 | 1.60 | 0.00 | 1.18 | -19.96 | 213.20 | 47.03 | 247.59 | 0.7463 | -572.0 | -476.7 | |
| 0.00 | 0.71 | 0.00 | 0.52 | -20.03 | 212.99 | 46.83 | 247.44 | 0.7442 | -419.0 | -423.9 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -18.70 | 211.63 | 45.46 | 248.87 | 0.7261 | -476.0 | -438.7 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -21.43 | 212.38 | 46.21 | 245.43 | 0.7412 | -596.0 | -509.7 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -20.68 | 210.57 | 44.40 | 245.88 | 0.7194 | -621.0 | -504.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
