SDO HMI 2014-04-22 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 27.17 | 0.00 | 14.11 | -20.15 | 162.30 | -3.31 | 169.51 | 0.2813 | -750.3 | -616.8 | |
|
previous
or next observation for the same group /

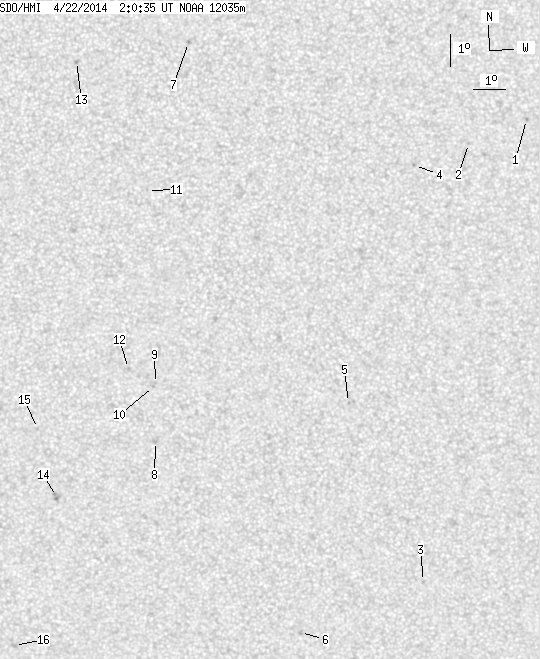

back to the solar disc SDO HMI 2014-04-22 02:00:35 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.51 | 0.00 | 0.76 | -11.74 | 173.17 | 7.56 | 227.64 | 0.1750 | -886.0 | -722.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -12.49 | 171.39 | 5.78 | 217.08 | 0.1637 | -701.0 | -540.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | -26.15 | 170.37 | 4.75 | 191.65 | 0.3695 | -627.0 | -597.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -13.17 | 169.73 | 4.11 | 206.27 | 0.1585 | -855.0 | -674.5 | |
| 0.00 | 1.07 | 0.00 | 0.55 | -20.47 | 167.76 | 2.14 | 187.49 | 0.2696 | -814.0 | -732.5 | |
| 0.00 | 2.31 | 0.00 | 1.24 | -27.82 | 166.24 | 0.62 | 181.42 | 0.3889 | -748.0 | -565.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -9.44 | 162.78 | -2.84 | 147.49 | 0.0914 | -985.0 | -858.7 | |
| 0.00 | 2.49 | 0.00 | 1.29 | -21.68 | 161.51 | -4.10 | 166.93 | 0.2954 | -718.0 | -564.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -19.86 | 161.56 | -4.05 | 165.44 | 0.2657 | -863.0 | -727.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -19.96 | 161.50 | -4.12 | 165.31 | 0.2675 | -773.0 | -636.9 | |
| 0.00 | 0.89 | 0.00 | 0.45 | -13.92 | 161.45 | -4.17 | 155.46 | 0.1706 | -801.0 | -621.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -19.39 | 160.71 | -4.90 | 161.99 | 0.2620 | -797.0 | -696.6 | |
| 0.00 | 2.13 | 0.00 | 1.07 | -9.98 | 159.33 | -6.28 | 128.79 | 0.1389 | -942.0 | -763.8 | |
| 0.00 | 5.24 | 0.00 | 2.76 | -23.39 | 158.19 | -7.42 | 159.39 | 0.3384 | -727.0 | -768.0 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -21.23 | 157.69 | -7.93 | 155.31 | 0.3091 | -731.0 | -590.1 | |
| 0.00 | 2.75 | 0.00 | 1.50 | -28.17 | 156.43 | -9.19 | 160.32 | 0.4199 | -37.0 | -75.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
